6.4 ACTIONS BEFORE ASSEMBLY 6 SERVICE, DISMANTLING, ASSEMBLY
86
6.4.6 Lubrication of bowl parts
G09117A1

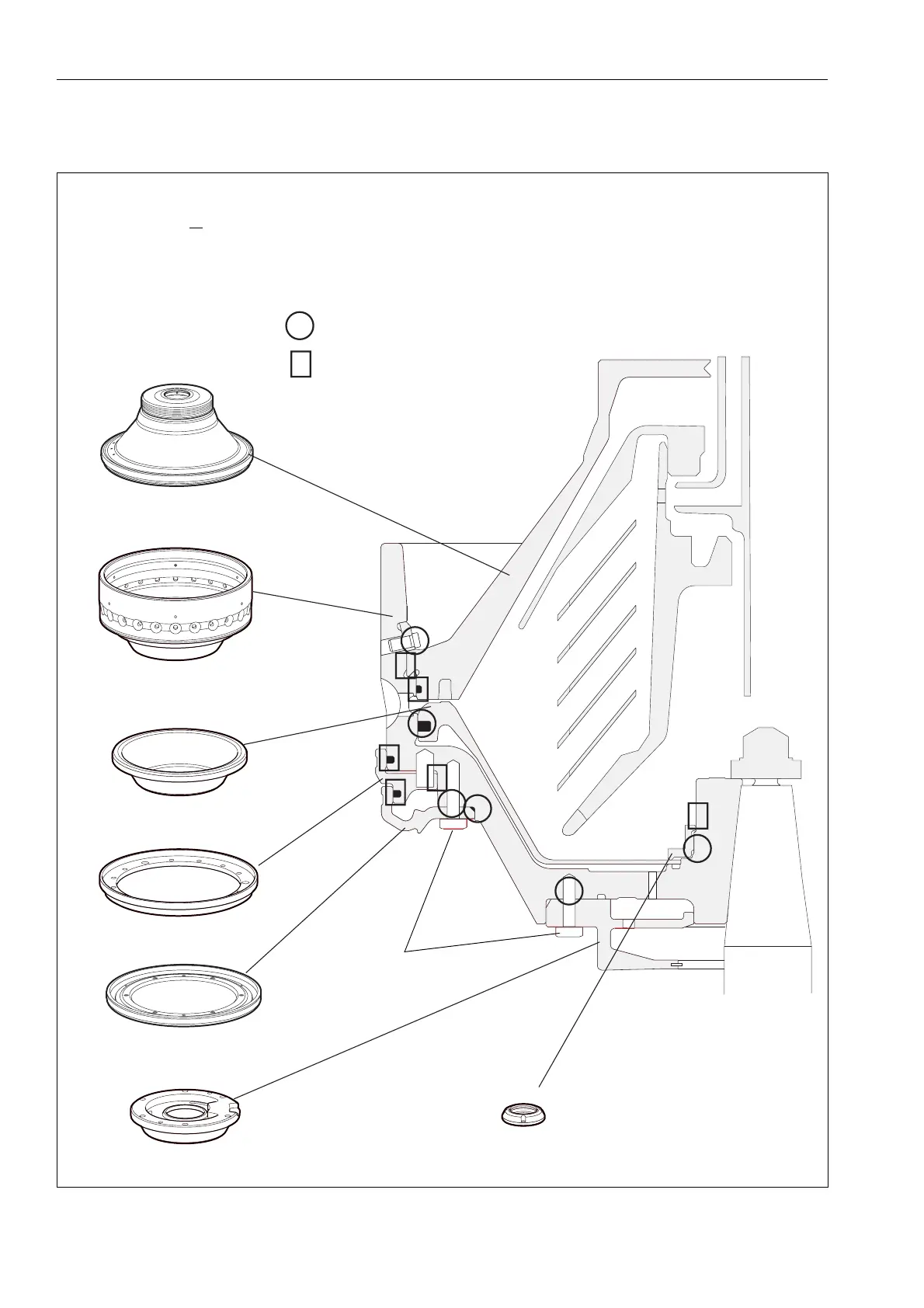

Discharge slide
a Apply a thin layer of Molykote 1000, or equivalent
lubrication, on all the following contact surfaces. Apply
D321 on the operating slide and the bowl body, guide pin
and bowl hood.
Bowl body
(also apply D321 on guide pin)
Operating slide
(apply D321)
Holder
Nut
= Molykote 1000
= D321R + Molykote 1000
Bowl hood
(apply D321)
Screw
Operating water ring
