6 SERVICE, DISMANTLING, ASSEMBLY 6.5 ASSEMBLY

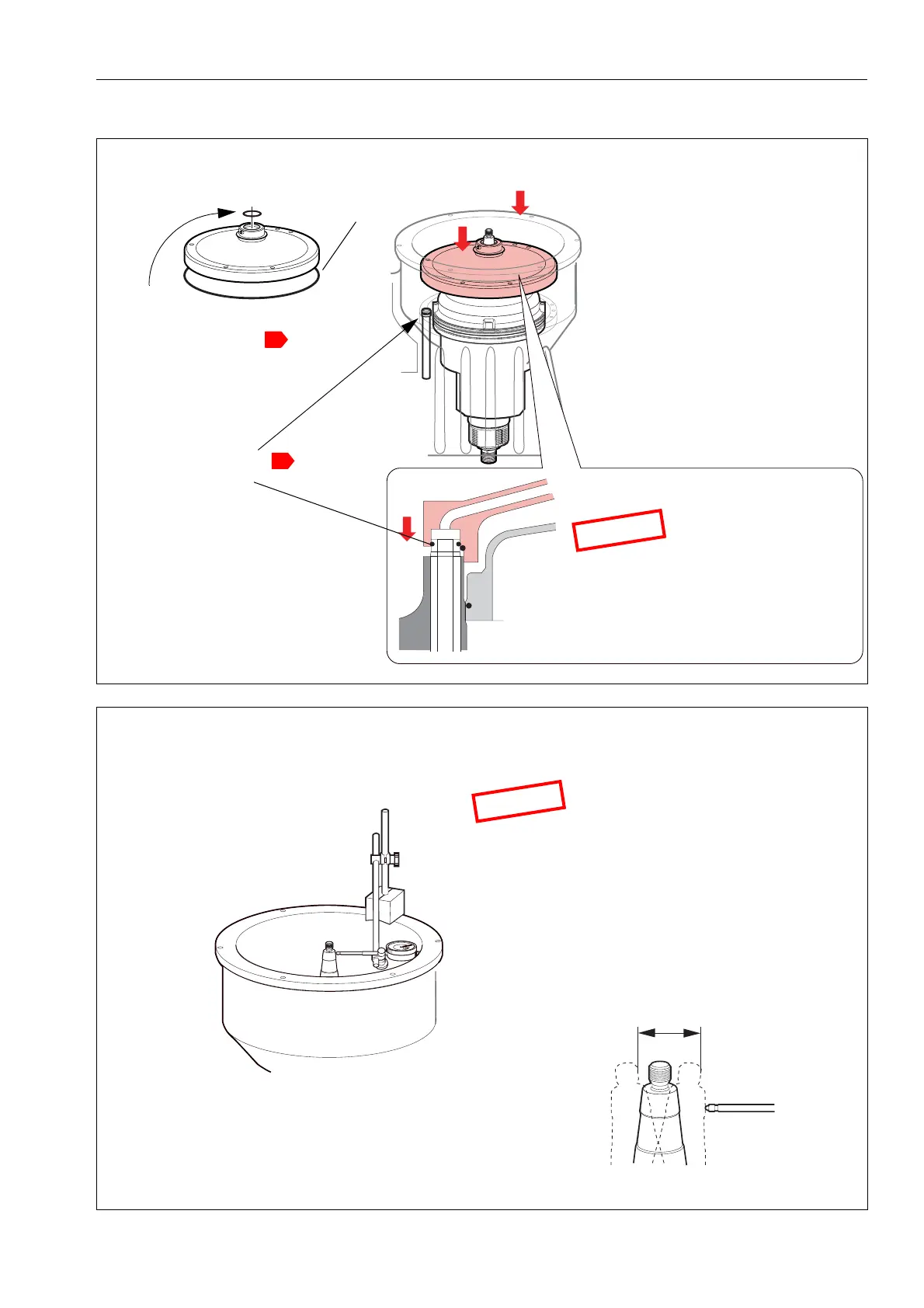

14 Fitting the operating water cover.
15 Measuring the radial wobble of the bowl spindle.
G0868141
b Fit the operating water cover. Fit washers
and tighten the screws.
N
O
T
E
The water pipe in the frame should
enter the hole in the cover.
a Lubricate with oil and fit the seal
ring and O-ring into the
operating water cover.
o
Renew the O-ring
o
O-ring
G0858711
a Fit a dial indicator in a support
and fasten it in position as
illustrated. Use the flat belt to
turn the spindle.
N
O
T
E
Permissible radial wobble: max. 0,04
mm. If the spindle wobble exceeds
this value, contact an Alfa Laval
representative.
Max. 0,04 mm
