8.6 DRAWINGS 8 TECHNICAL REFERENCE
164

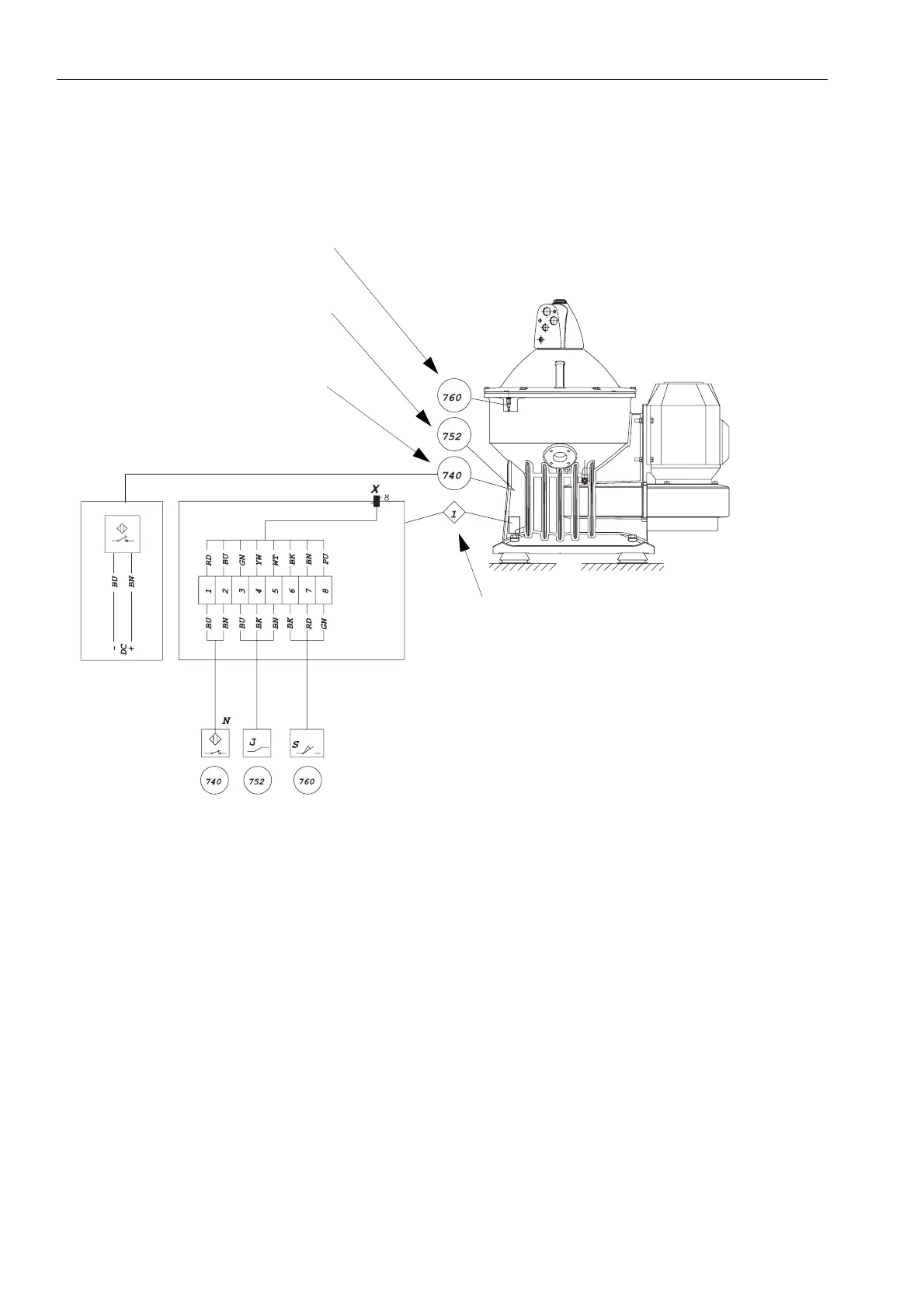

8.6.3 Interconnection diagram
Alfa Laval ref. 561786 rev. 5
G0867561
Speed sensor (bowl speed).
Wire colour codes:
BK=Black
BN=Brown
BU=Blue
RD=Red
GN=Green
PU=Purple
YW=Yellow
WT=White
Unbalance sensor (position trans.
for bearing holder).
Interlocking switch (frame top part)
Junction box
Wiring of connector “X”:
RD=A
BU=B
GN=C
YW=D
WT=E
BK=F
BN=G
PU=H
Items showed in this document are not included in all
separators. See product specification.
Demand specification wire
Approval: UL 1007/1569
CSA TR-64
Area acc. to AWG 18
Wiring without
junction box
