6 SERVICE, DISMANTLING, ASSEMBLY 6.5 ASSEMBLY

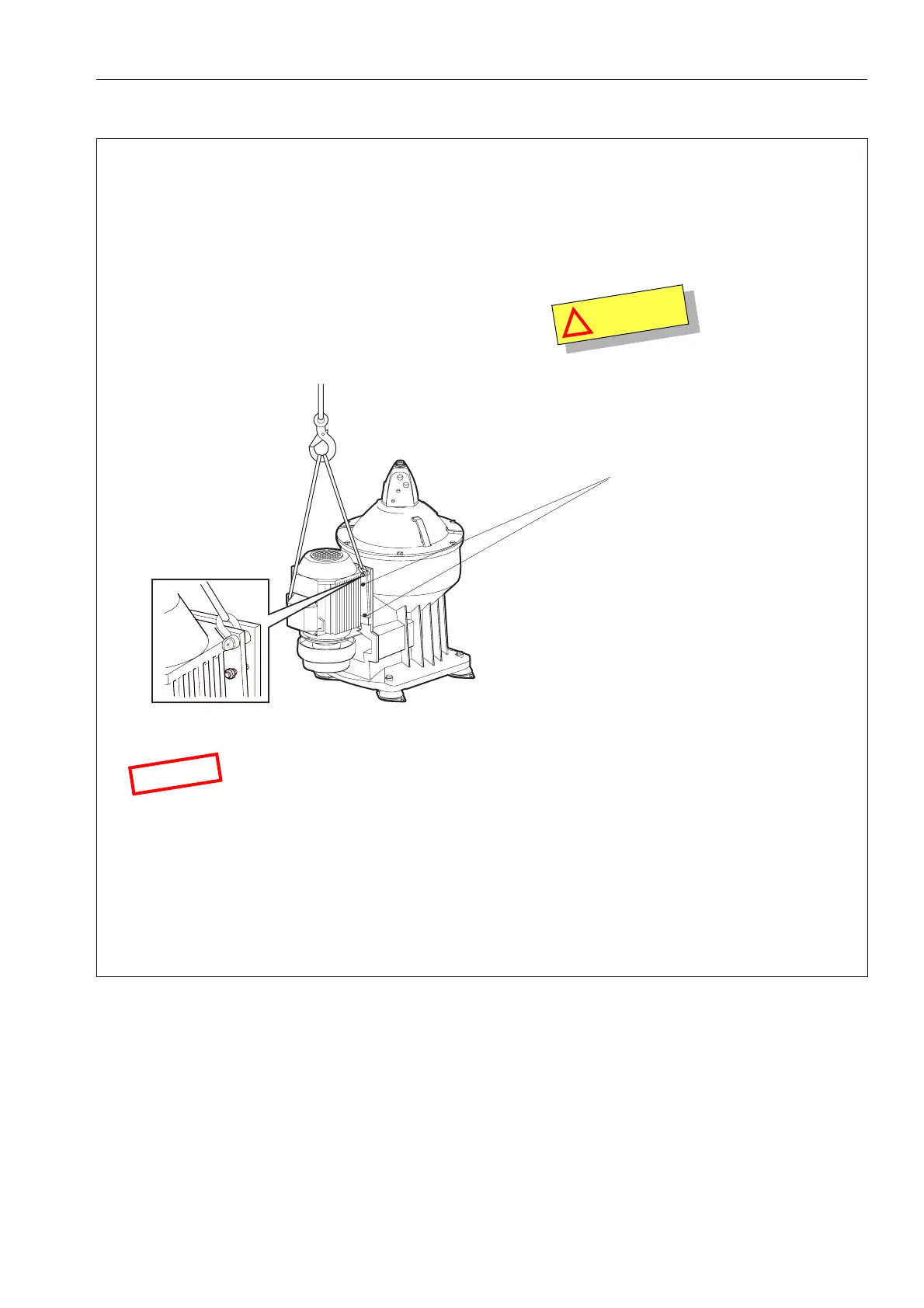

5 Fitting the motor.
G0864641
c Fit the screws.
Do not tighten until the
belt has been mounted.
d Connect the electrical cables.
b Lower the motor (while
supported) on to the
separator frame.
It will set on the ledge.
a Fit a lifting sling to the motor.
Use a shackle from the
separator lifting tool.
Weight of motor with
coupling: approx. 80 kg.
W
A
R
N
I
N
G
!
Crush hazard
If not supported, the motor with
coupling may drop when lifted.
N
O
T
E
If carrying out change of friction blocks only,
continue with steps 6 to 7.
If carrying out a complete machine assembly,
continue with the driving device instructions on
page 96.
