115
6 SERVICE, DISMANTLING, ASSEMBLY 6.5 ASSEMBLY

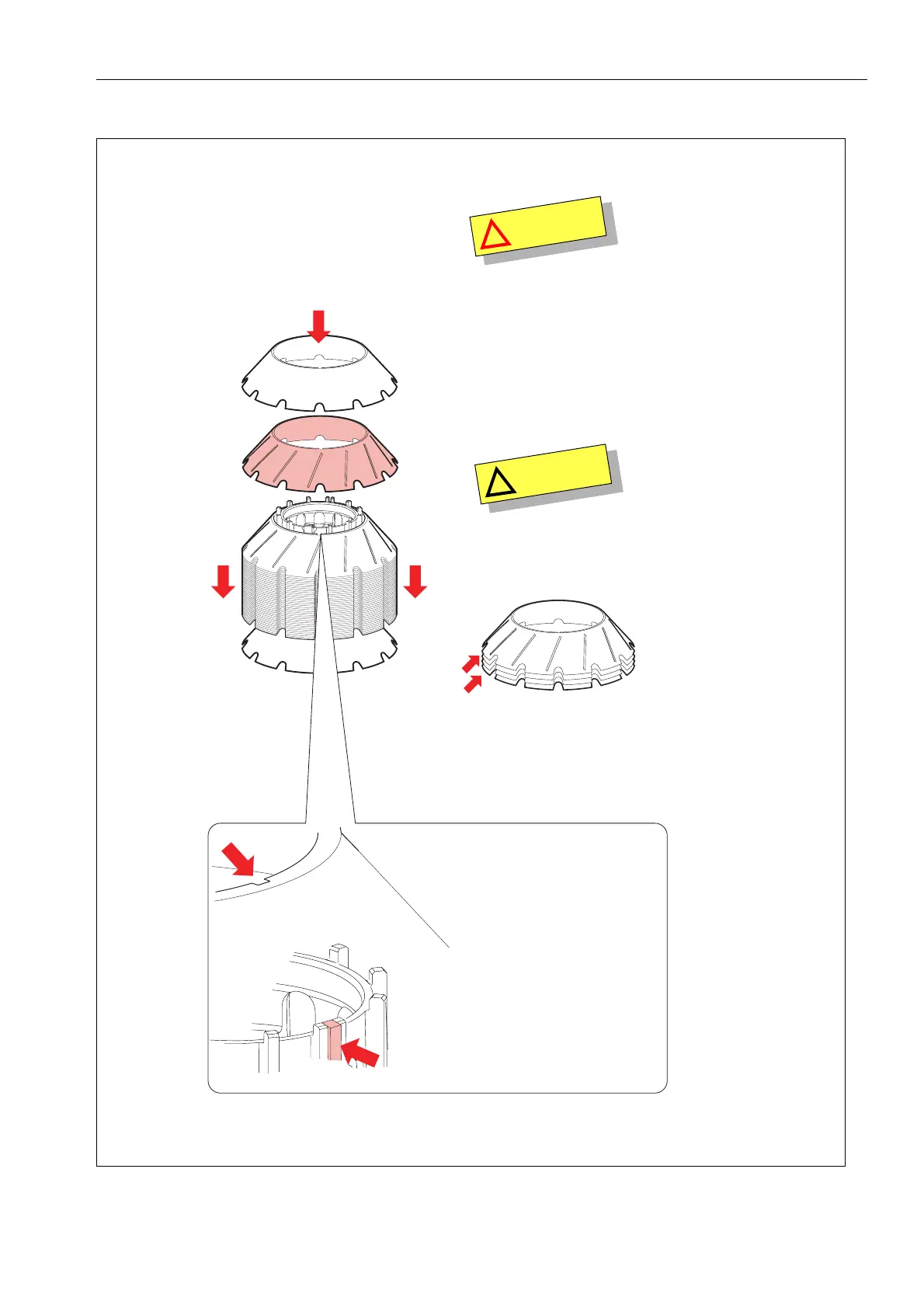

9 Assembly of the disc stack.
G0862051
a Fit the discs one by one onto the distributor.
The distributor has a guide rib for the correct
positioning of the bowl discs. Always end with
the disc without caulks.
C
A
U
T
I
O
N
!
Cut hazard
Sharp edges on the bowl discs may cause
cuts.
Guide rib on distributor
Recess on bowl disc
W
A
R
N
I
N
G
!
The number of discs may have to be increased
to adjust the disc stack pressure. Always check
before operating the separator. See ‘‘Checking
the disc stack pressure” on page 121
