6.5 ASSEMBLY 6 SERVICE, DISMANTLING, ASSEMBLY
92

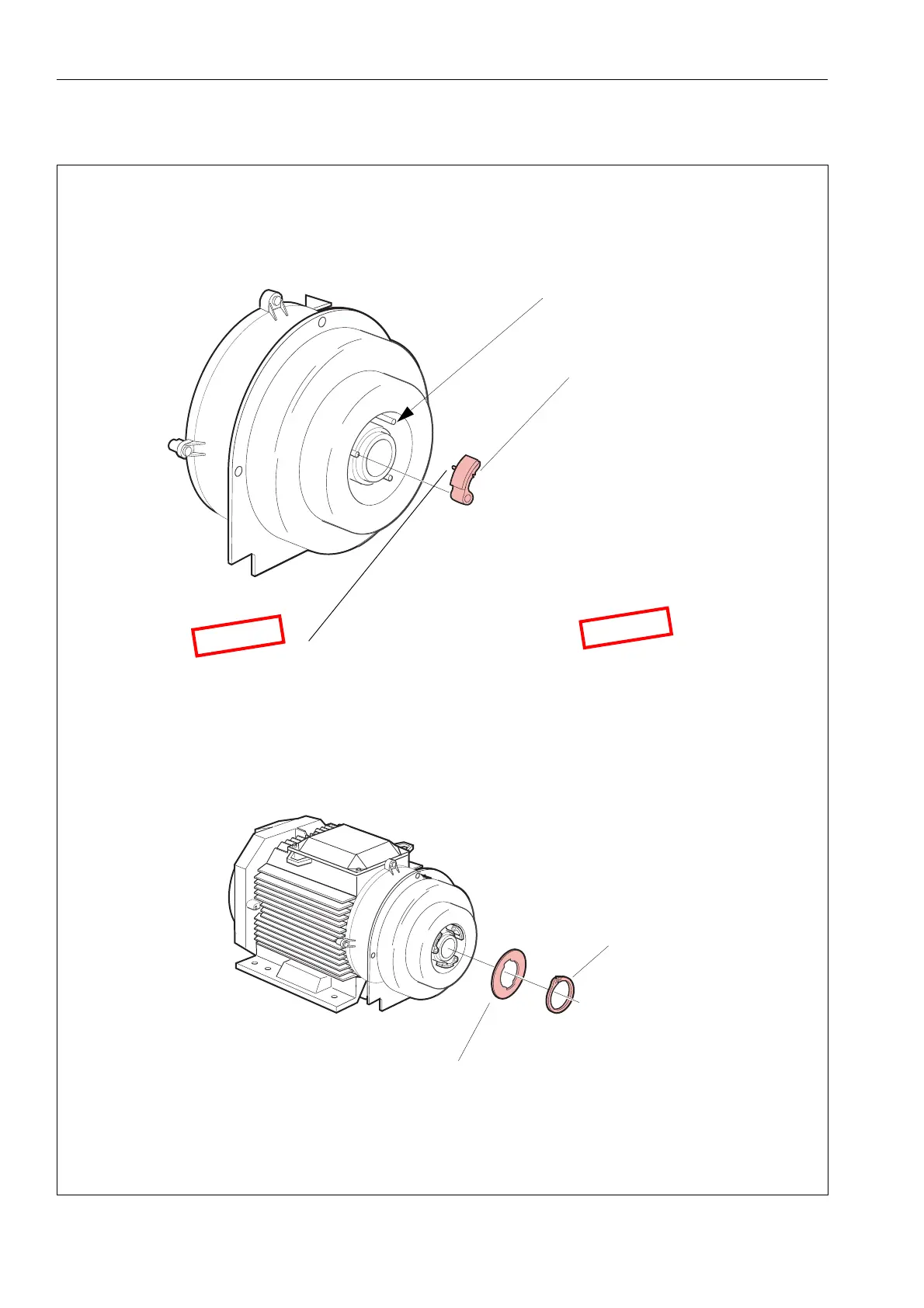

Assembly of friction blocks
4 Fitting the friction blocks.
G0865451
Guide pin
b Place the cover in position and secure it with
the snap ring.
Cover
Snap ring
a Fit the friction blocks onto the
guide pins
N
O
T
E
50 Hz = 5 Friction blocks
60 Hz = 3 Friction blocks
N
O
T
E
Be sure that the pins on the
back of the blocks project into
the grooves in the clutch hub.
