Alfa Laval S 821 - Removing the Spring and Arm; Removing the Frame Hood

49
6 SERVICE, DISMANTLING, ASSEMBLY 6.3 DISMANTLING

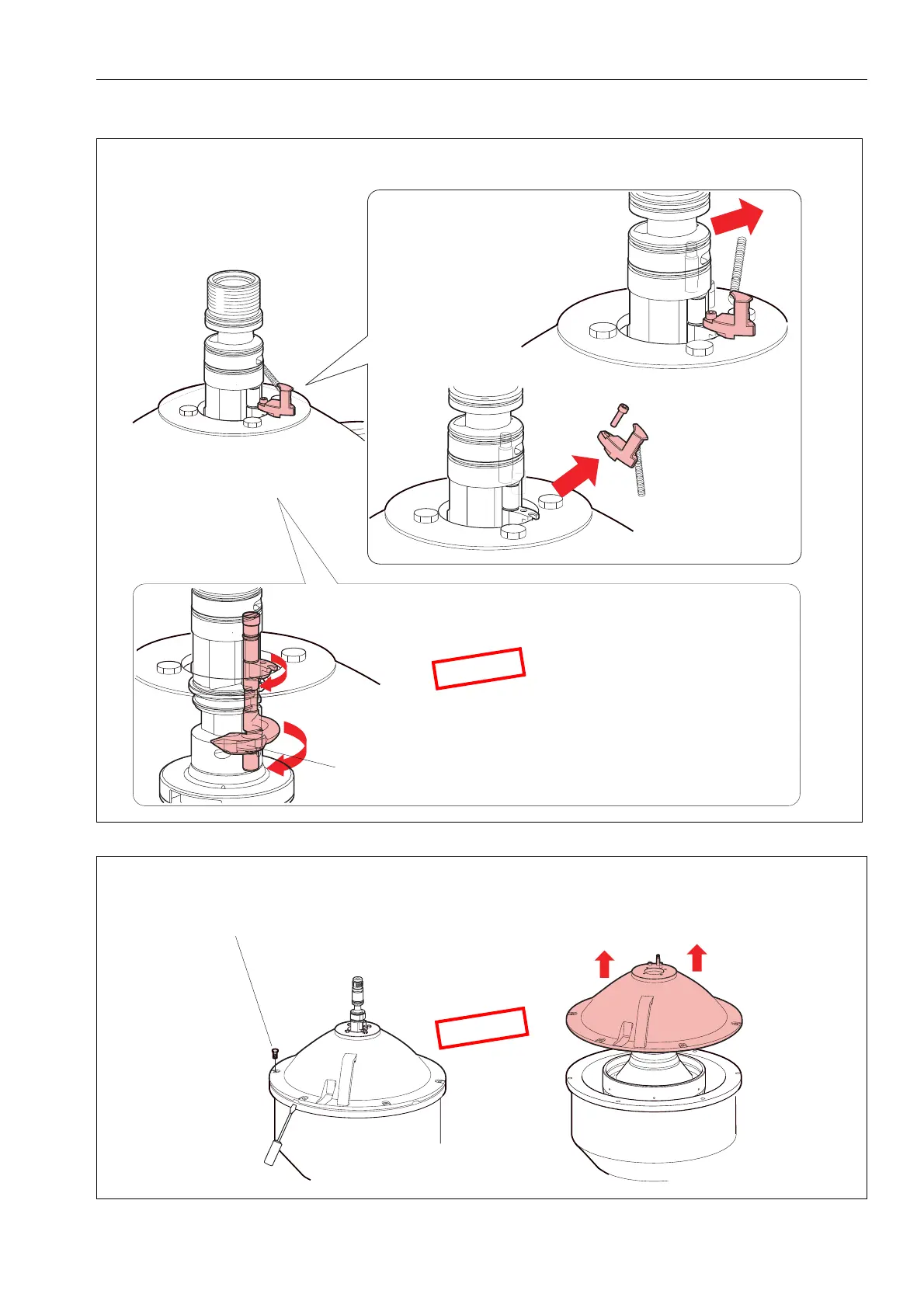

2 Removing the spring and arm.
3 Removing the frame hood.
G0863691
a Remove the spring from
the pin on the hood.
b Loosen and
remove the screw
and arm together
with the spring.
c Turn the paring tube so that the frame hood can be
removed upwards.
Paring tube
N
O
T
E
To avoid the paring tube from being damaged
and preventing the inlet pipe from sticking to
the frame hood when lifting the hood, always
turn the paring tube towards the pipe before
lifting.
G0863671
N
O
T
E
Do not place
the hood
upside down.
b Loosen the hood
by bending with
a screwdriver in
all grooves in the
hood.
c Lift off the frame
hood.
a Remove the screws holding
the frame hood.
