Alfa Laval S 821 - Ball Bearing, Labyrinth Ring, and Bottom Holder Removal

6.3 DISMANTLING 6 SERVICE, DISMANTLING, ASSEMBLY
70

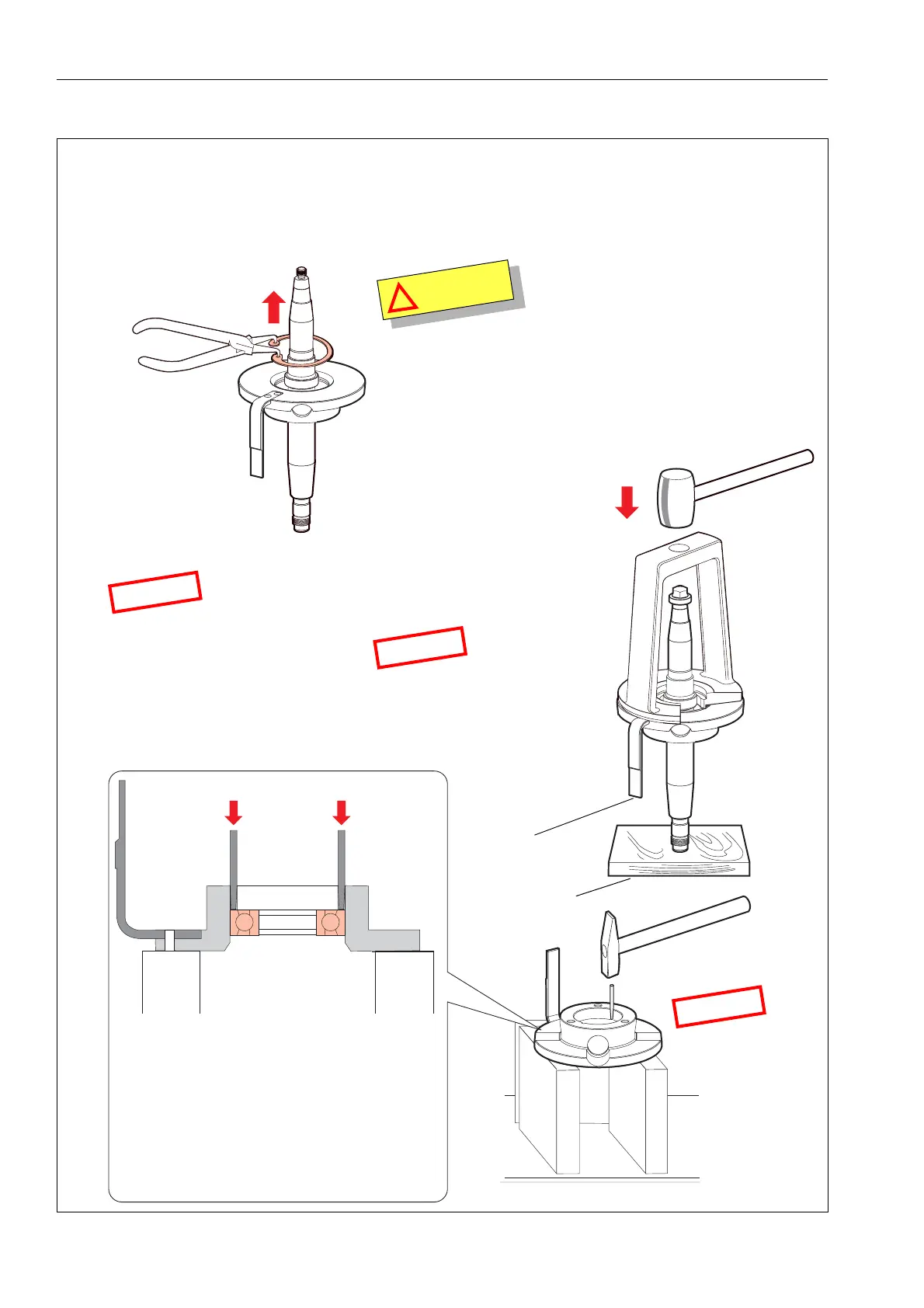

13 Removing the ball bearing.
G0858351
a Remove the snap ring.
W
A
R
N
I
N
G
!
Risk for eye injury from flying snap ring
Use the correct pliers for dismantling of snap ring to
avoid accidental release.
d Place the top bearing seat on a support to
protect the vibration indicator.
Remove the bearing. Use a drift in the two
holes.
b Fit the cap nut on the spindle to
protect the threads.
N
O
T
E
Do not damage threads on
spindle.
N
O
T
E
Take care not to damage the
vibration indicator when
separating the top bearing
seat from the spindle.
N
O
T
E
Always discard
used bearings.
Vibration indicator
c Use the puller tool to remove the
top bearing seat from the spindle.
Piece of wood to
protect the spindle
threads.
