6.3 DISMANTLING 6 SERVICE, DISMANTLING, ASSEMBLY
76

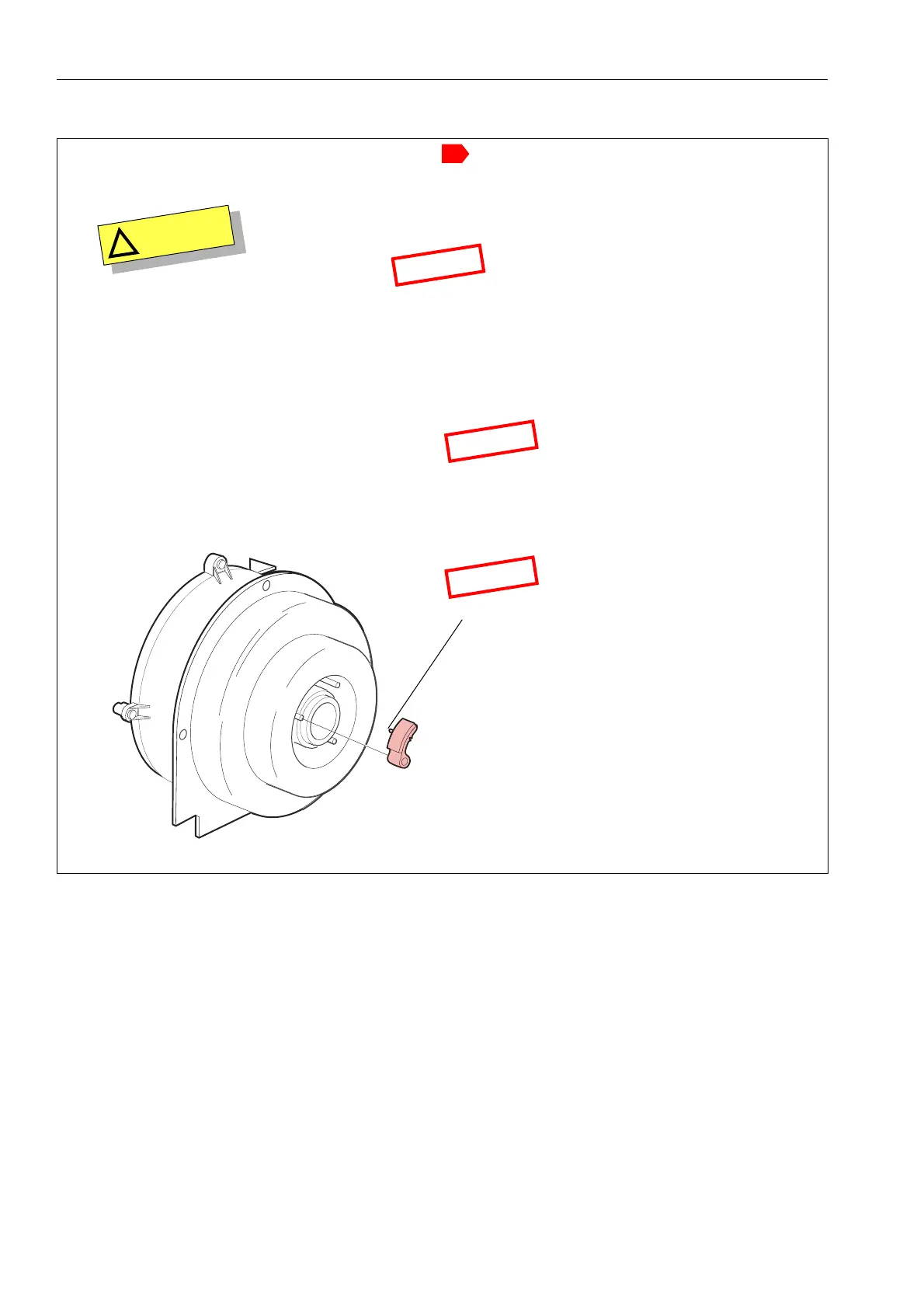

5 Checking the condition of the friction blocks .
o
G0865331
If the blocks are worn:
Fit new friction blocks.
N
O
T
E
Replace all blocks, even if only one is
worn.
a Clean the pins of coupling hub and apply a thin
film of lubricating paste to the pins.
N
O
T
E
Make sure that there is no oil on the pads.
N
O
T
E
Be sure that the pins on the back of the
blocks project into the grooves in the
clutch hub.
b If only friction block service is to be done,
proceed to ‘‘Assembly of friction blocks” on page
92.
C
A
U
T
I
O
N
!
Inhalation hazard
When handling friction
blocks/pads wear a
mask to avoid inhalation
of dust.
Do not use compressed
air to remove dust.
Remove dust using
vacuum or a damp cloth.
