Alfa Laval S 821 - Driving Device Dismantling

61
6 SERVICE, DISMANTLING, ASSEMBLY 6.3 DISMANTLING

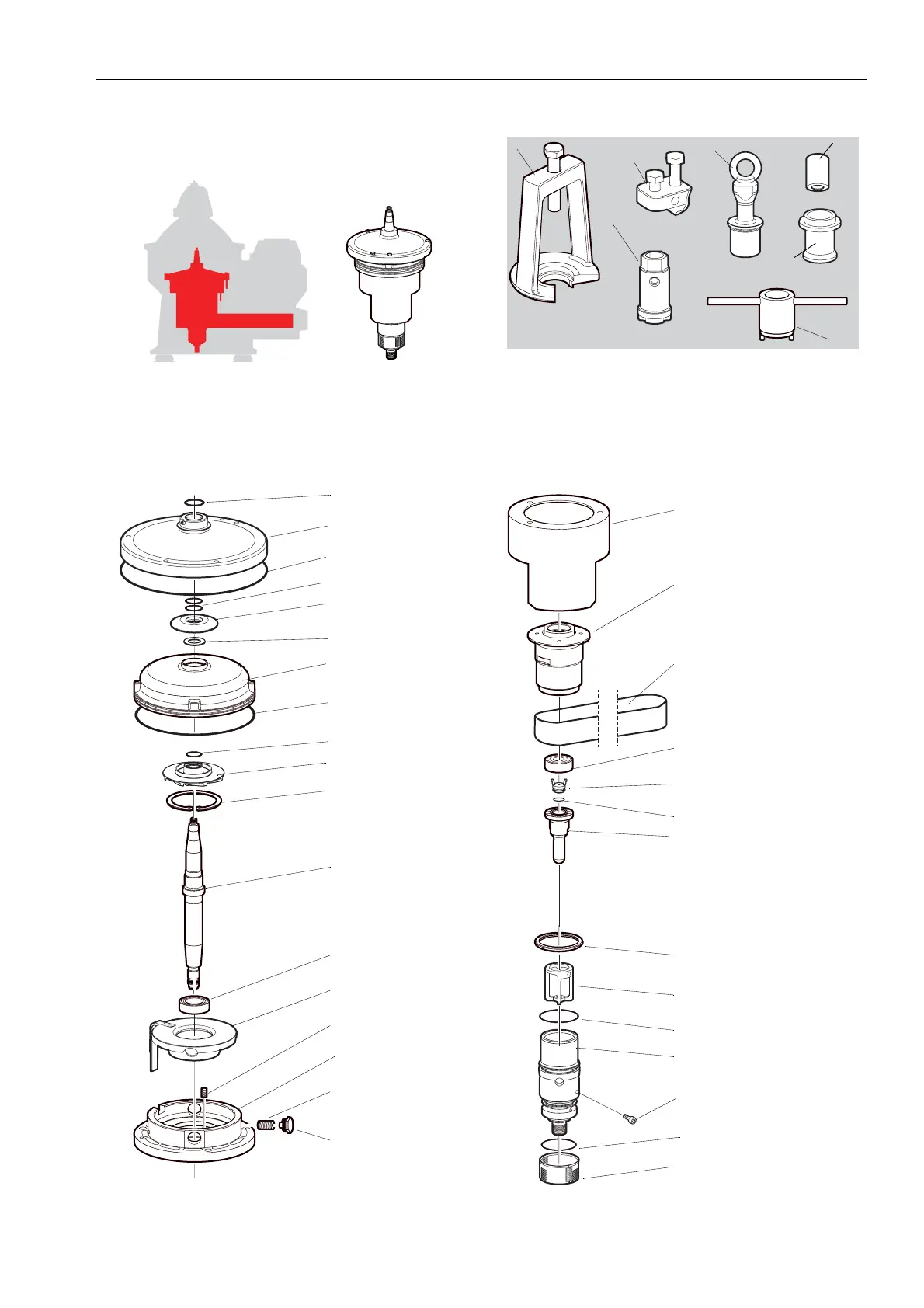

6.3.5 Driving device
G0857971
1 Puller (spindle pulley,
ball bearing).
2 Tool (bearing housing).
3 Cover puller
(neck bearing cover).
4 Lifting tool
(spindle assembly)
5 Drift (bottom bearing).
6 Sleeve (ball bearing in
top bearing seat
7 Pin spanner (oil fan).
1
2
3
4
5
6
7
G0857821
G0858071
Operating water cover
Seal ring
Deflector ring
Neck bearing cover
O-ring
Fan
Snap ring
Bowl spindle
Ball bearing
Top bearing seat
Plugs
Composite springs
Air deflector
Spindle pulley
Self-aligning roller
bearing
Lubrication oil orifice
Oil pump
Labyrinth ring
Wing insert
O-ring
Bottom bearing
holder
Strainer
Top bearing housing
Springs
O-ring
Screw
Belt
S
ea
l
r
i
ng
O-ring
O-ring
O-ring
O-rings
