6.5 ASSEMBLY 6 SERVICE, DISMANTLING, ASSEMBLY
122
6.5.4 Frame hood

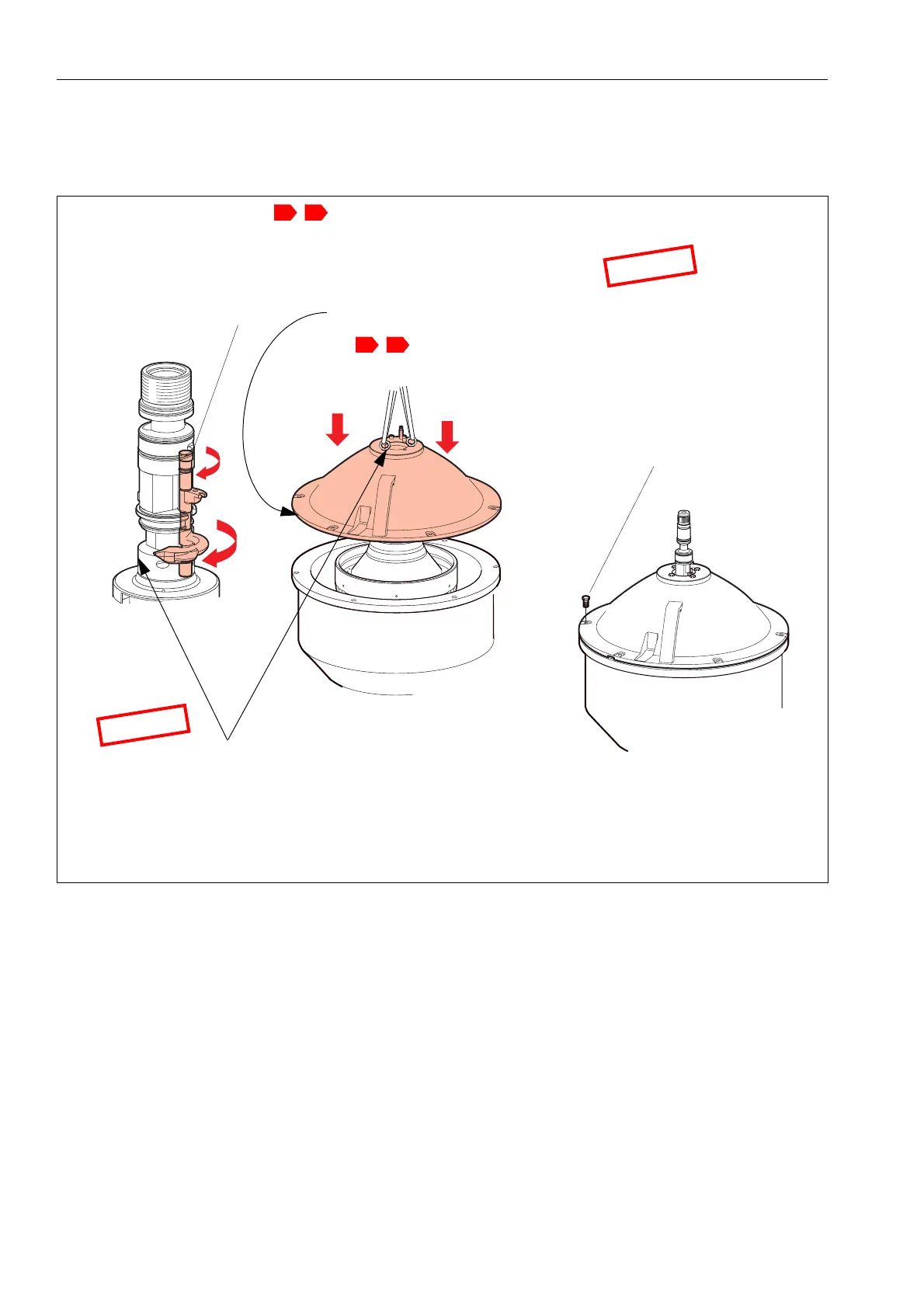

1 Fitting the frame hood .
i
o
G0863791
a Turn the paring tube so that
the frame hood can pass.
Paring tube.
c Lower the frame hood.
d Fit and tighten the
screws.
N
O
T
E
Make sure that the frame
hood is mounted in its
correct position
according to the piping
arrangement.
b Apply a thin layer of silicone grease and
fit the O-ring onto the frame hood
i
o
N
O
T
E
Make sure to fit the frame hood
groove and the projection of the
pipe.
