6 SERVICE, DISMANTLING, ASSEMBLY 6.8 LIFTING INSTRUCTIONS
6.8 Lifting instructions
Alfa Laval ref. 567319, rev. 1
6.8.1 Lifting the separator
1 Remove the inlet and outlet device, the
frame hood and the bowl according to the
instructions in
6.3 Dismantling, page 46.
2 Disconnect all connections.

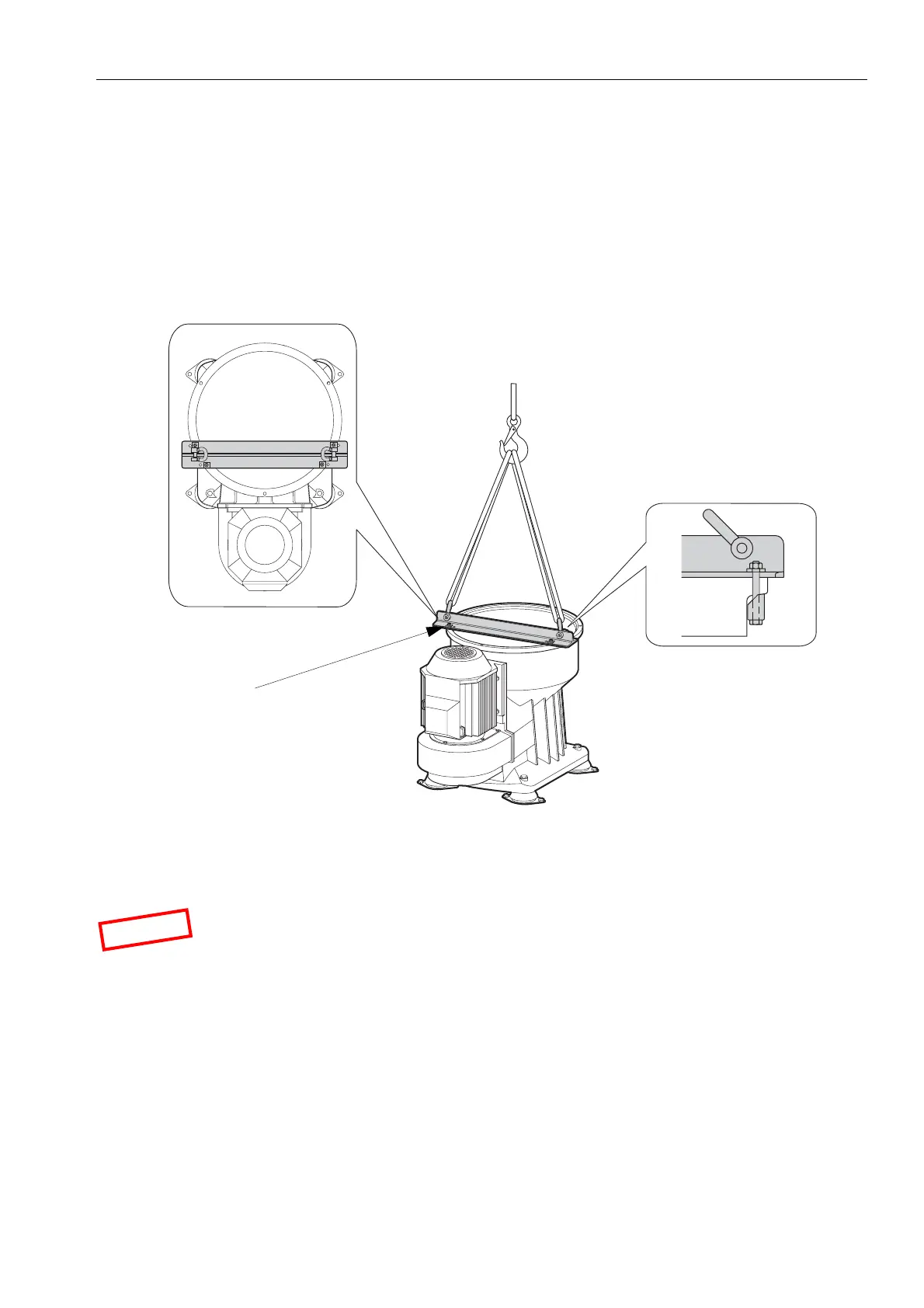

3 Fit the lifting tool (not included in set of tools).
All four bolts on the lifting tool must be
fastened to the frame.
4 Use two lifting slings to lift the separator.
Total length of each loop: minimum 1,5
metres.
N
O
T
E
Never lift or transport the separator with the bowl
still inside.
G0868451
Weight to lift 275 kg
Sling length: Min. 750 mm
Fasten all four bolts. Tightening
torque 35 - 40 Nm
