4 DESIGN 4.5 SEPARATING FUNCTION

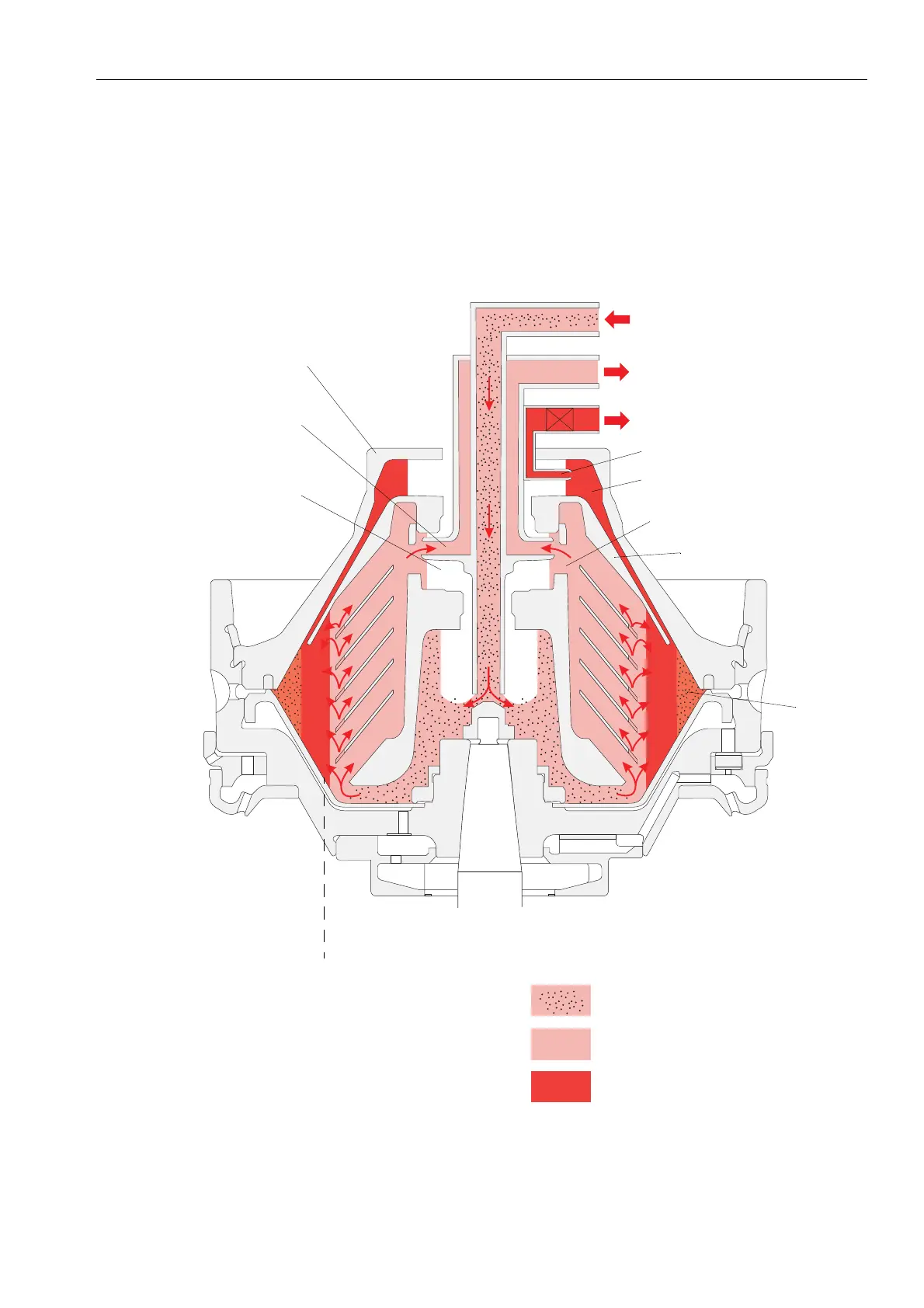

G0886231
Unseparated oil
Separated oil
Water
Water paring tube
Water paring chamber
Holes in distributor
Top d is c
Sludge
space
Oil/water interface
Oil paring chamber
Oil paring disc
DISCHARGE OF WATER THROUGH WATER OUTLET
Uncleaned oil
Cleaned oil
Water
Bowl hood
