Alfa Laval S 821 - Unbalance Sensor Holder Fitting

6.5 ASSEMBLY 6 SERVICE, DISMANTLING, ASSEMBLY
126
6.5.5 Unbalance sensor (optional)

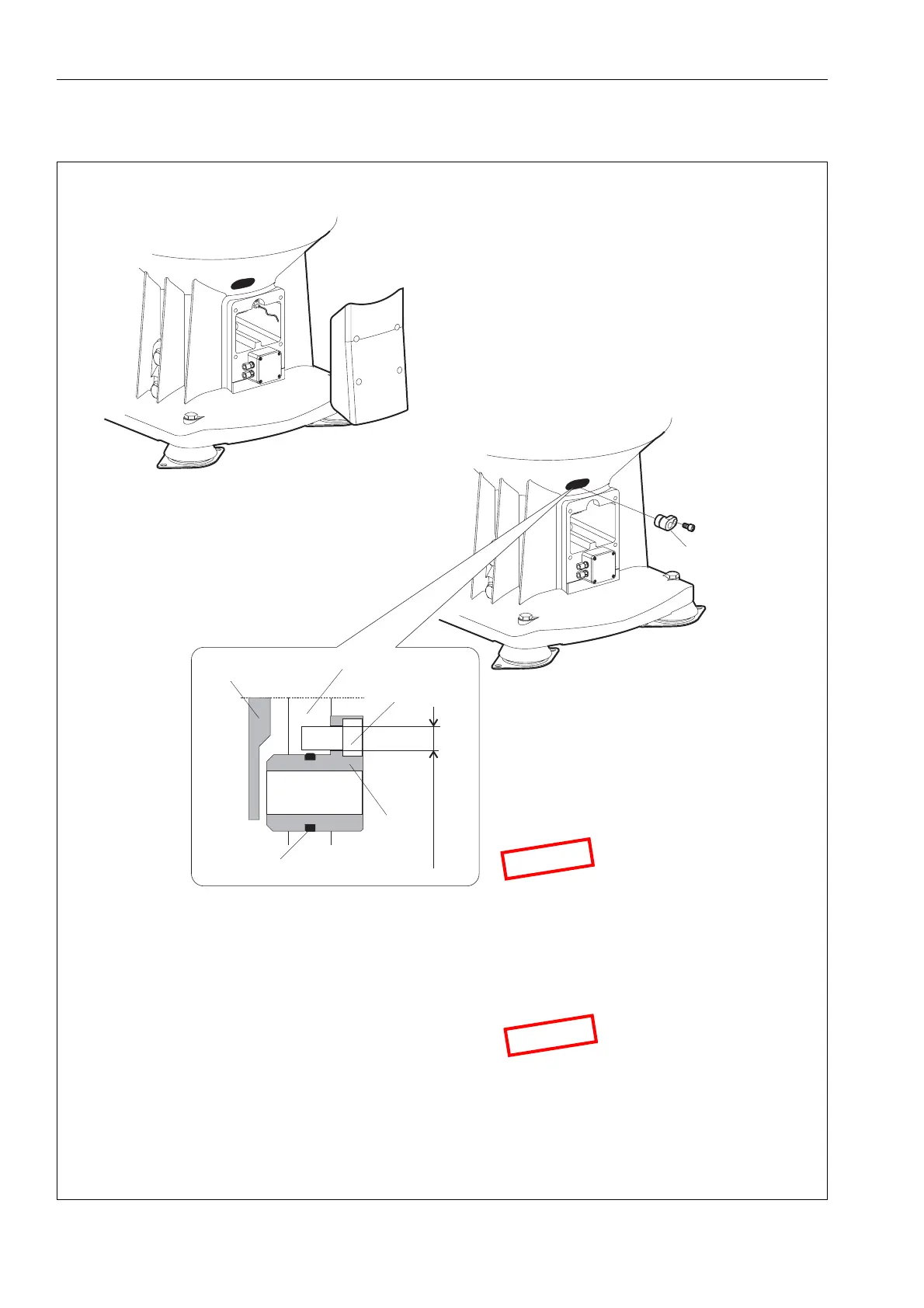

1 Fitting the unbalance sensor holder.
G0873481
a Remove the cover.
b Fit the O-ring on the holder.
Fit the screw into the holder and
mount the holder into the
separator frame.
Sensor holder.
Sensor
holder
O-ring
Screw M8
N
O
T
E
See next page for fitting and
correct adjustment of the sensor.
Frame
Sensor arm
N
O
T
E
If removing the sensor holder;
use a M10 screw as a puller.
M10
