8.6 DRAWINGS 8 TECHNICAL REFERENCE
162
8.6 Drawings

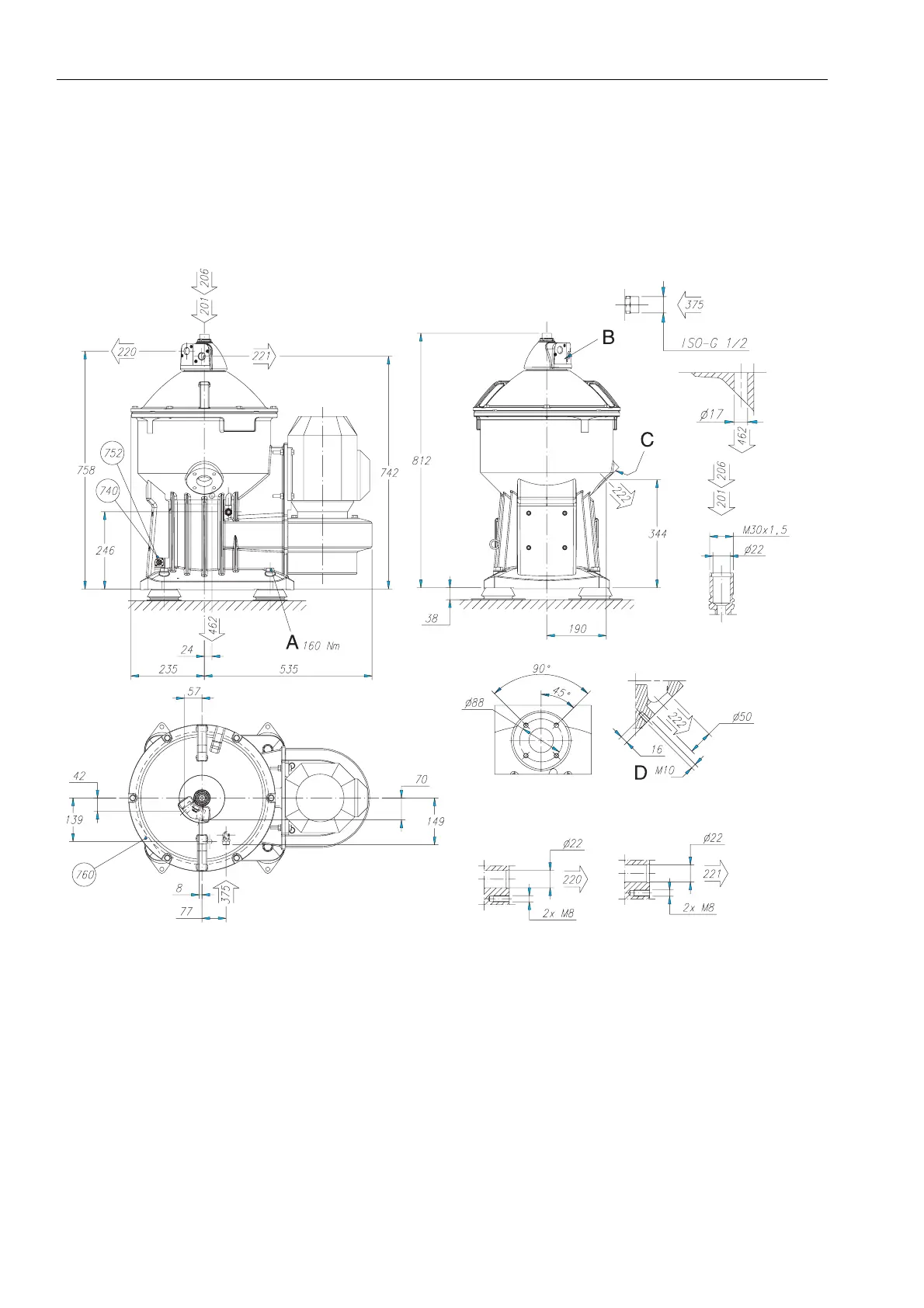

8.6.1 Basic size drawing
Alfa Laval ref. 574283 rev. 0
A Tightening torque 160 Nm.
B Maximum horizontal displacement at the inlet and outlet
connections during operation ± 5 mm.
C Maximum vertical displacement at the sludge connection
during operation ± 2 mm.
D 4 holes M10, depth 30
G08676H1
Connection house, with connections 201, 220 and 221, turnable in 60° steps all around.
All connections to be installed non-loaded and flexible
All dimensions are nominal. Reservation for individual deviations due to tolerances.
Data for connection, see 8.3 Connection List, page 149.
