Alfa Laval S 821 - Fitting the Spring and Arm

6.5 ASSEMBLY 6 SERVICE, DISMANTLING, ASSEMBLY
124

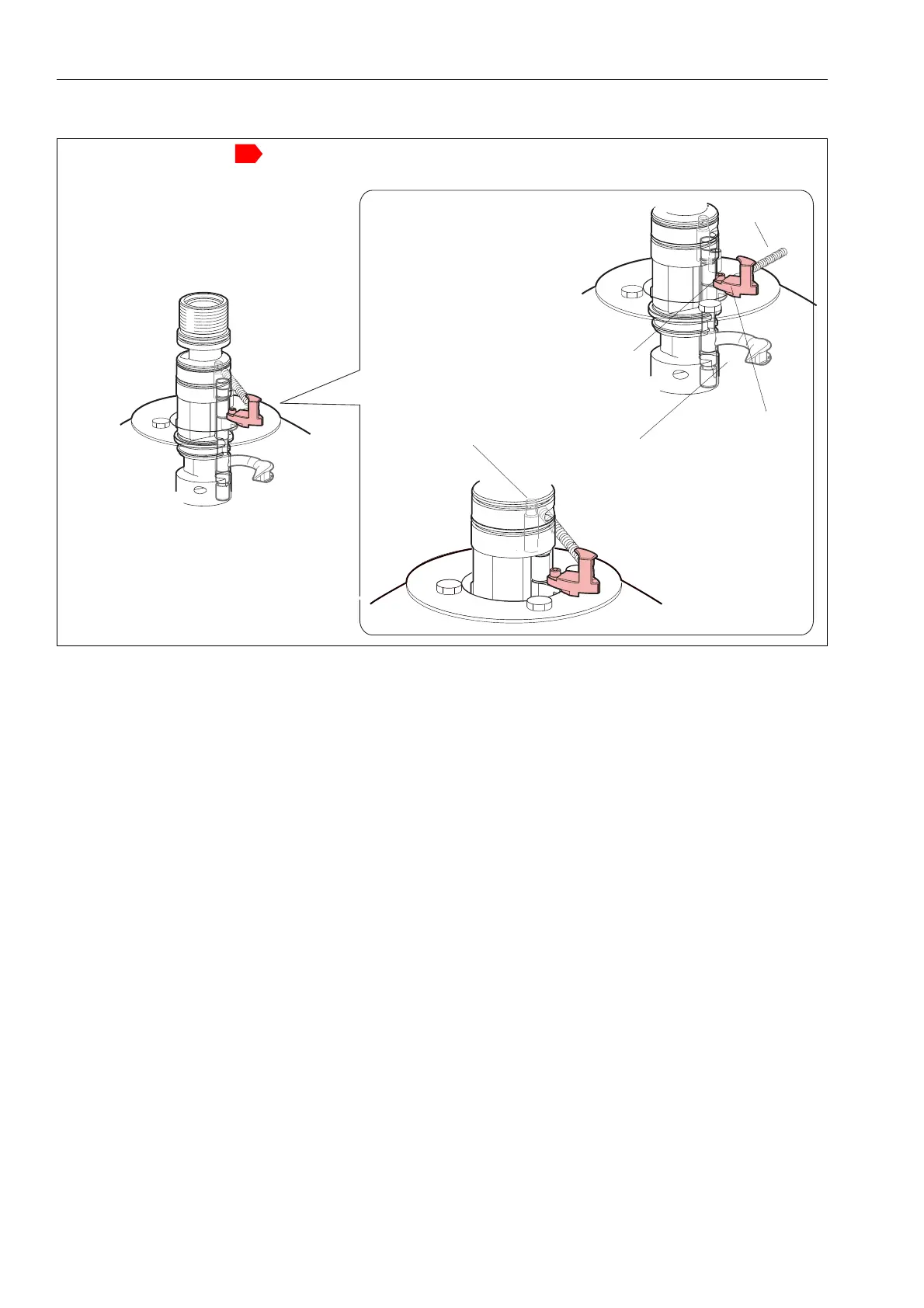

3 Fitting the spring and arm.
o
G08637A1
b Fit the spring to the pin
on the frame hood and
make sure that it is
properly attached on
both ends.
a Fit the spring on the arm
and fit the arm to the top
of the paring tube end
and fit the screw.
Arm
Screw
Spring
Pin
Paring tube
