6.5 ASSEMBLY 6 SERVICE, DISMANTLING, ASSEMBLY
120

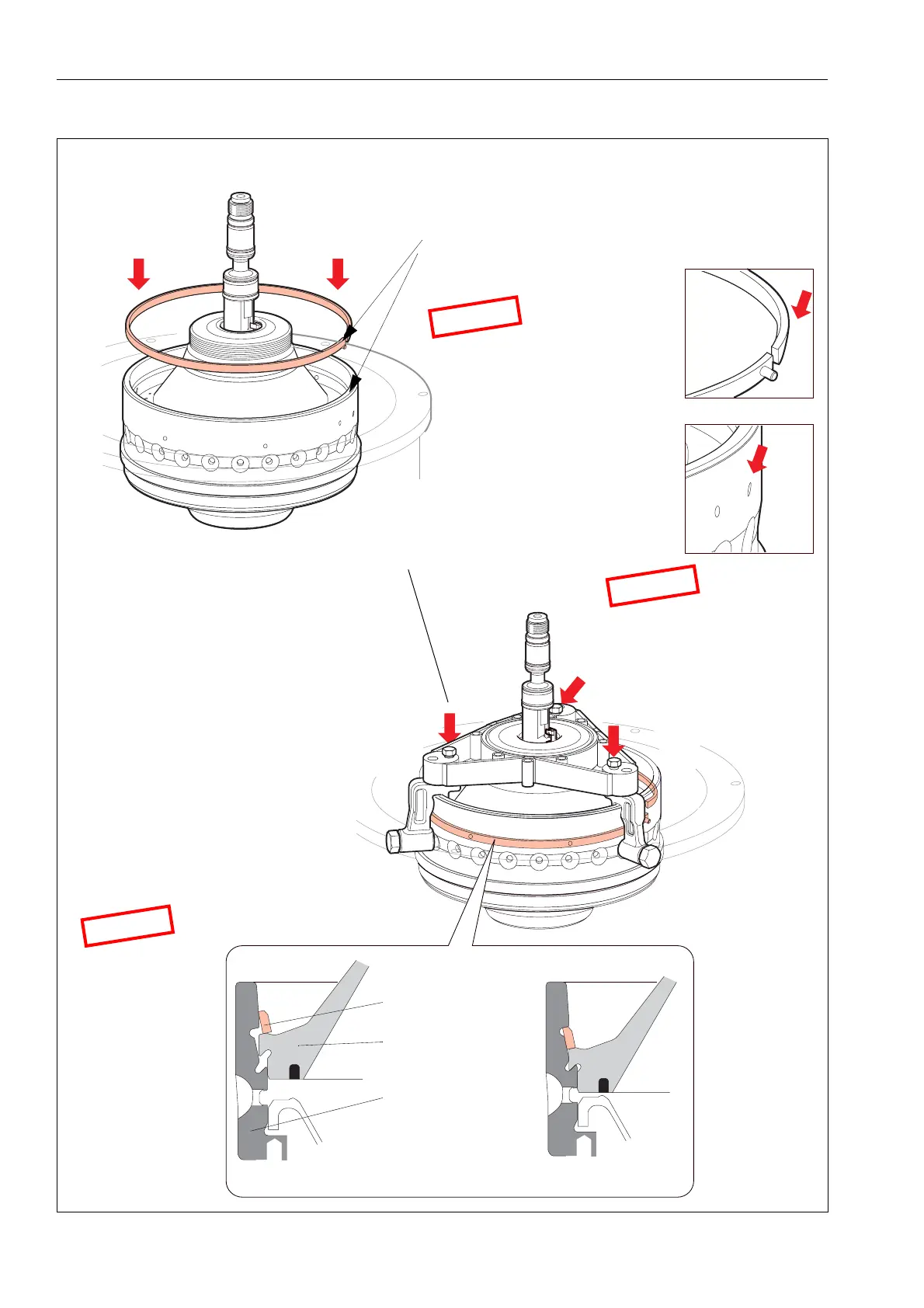

15 Fitting the lock ring.
G0862561
a Place the lock ring on the bowl hood
with its guide pin close to the
corresponding hole in the bowl
body.
N
O
T
E
Make sure that the groove in
the bowl body which retains
the lock ring is clean.
b Fit the complete compressing
tool and compress the disc stack
by alternately turning the screws
a maximum of 40 Nm at a time
until the lock ring fits into the
bowl body. The lock ring is
correctly fitted when the lock ring
ends are facing each other.
For correct disc stack pressure
see page 121
c Release the
pressure on the
compressing
tool and
remove it.
Before compressing
Lock ring in position
Lock ring
Bowl hood
Bowl body
N
O
T
E
Check that the lock ring is
correctly positioned all way
around!
N
O
T
E
Never remove
any material
from the lock
ring. A
hazardous
situation could
result.
