6.5 ASSEMBLY 6 SERVICE, DISMANTLING, ASSEMBLY
110

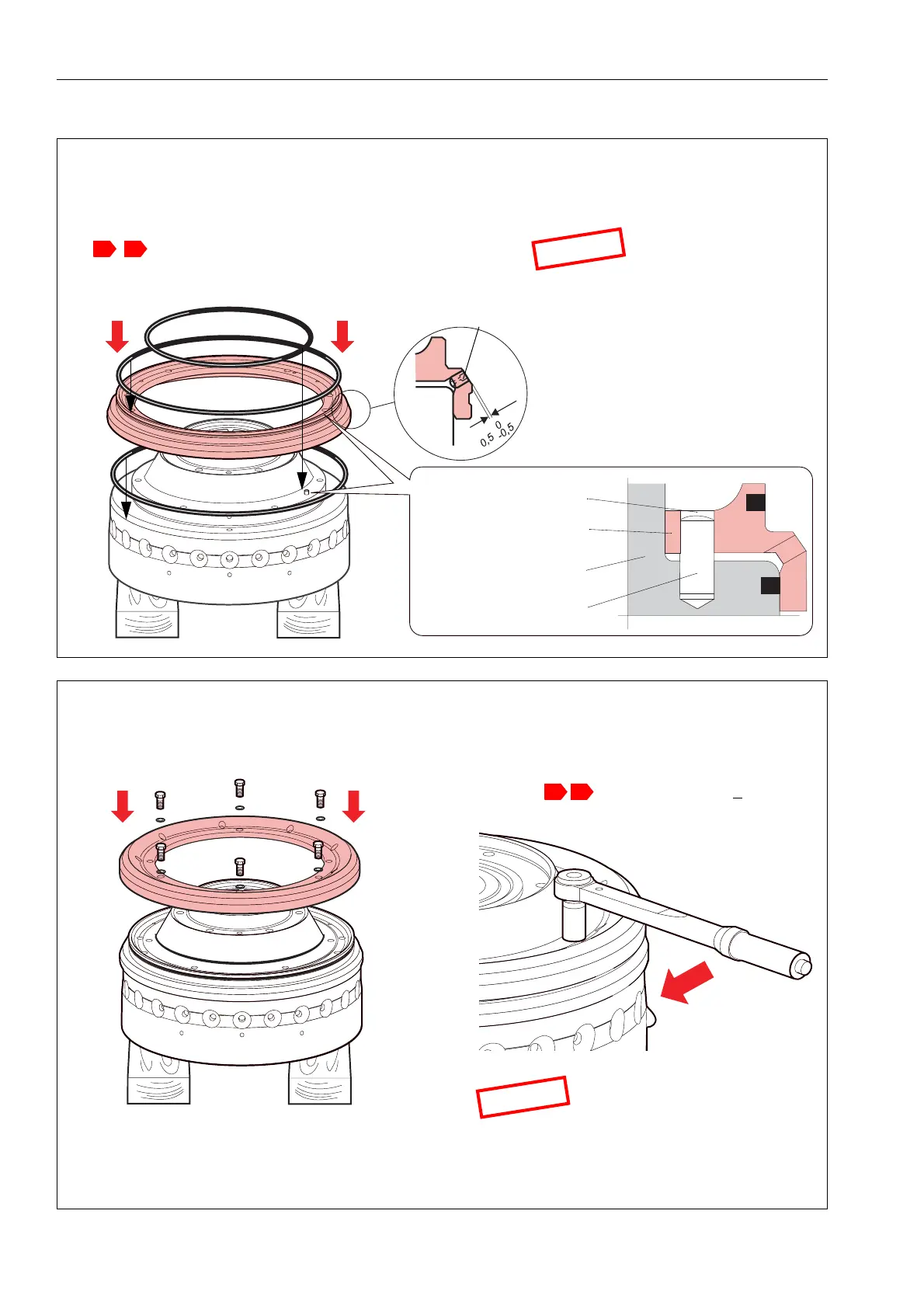

3 Fitting the operating slide.
4 Fitting the operating slide holder.
G0861241
a Apply a thin layer of silicone grease and fit the
rectangular ring on the operating slide and the
rectangular ring and O-ring on the bowl body.
.
i
o
b Fit the operating slide
.
N
O
T
E
The guide pin in the bowl body
should enter the hole in the
operating slide (this hole is
marked with a drill mark).
Guide pin
Alignment hole
Operating slide
Bowl body
Nozzle secured with Loctite 222
G0861341
a Fit the holder over the
operating slide.
b Apply a thin layer of molykote grease and
fit and tighten new screws and washers
to a torque of 30 Nm +
2 Nm.
i
o
N
O
T
E
It is very important not to refit used screws
and washers. Always fit new ones included
in the Inspection kit!
