6.3 DISMANTLING 6 SERVICE, DISMANTLING, ASSEMBLY
52

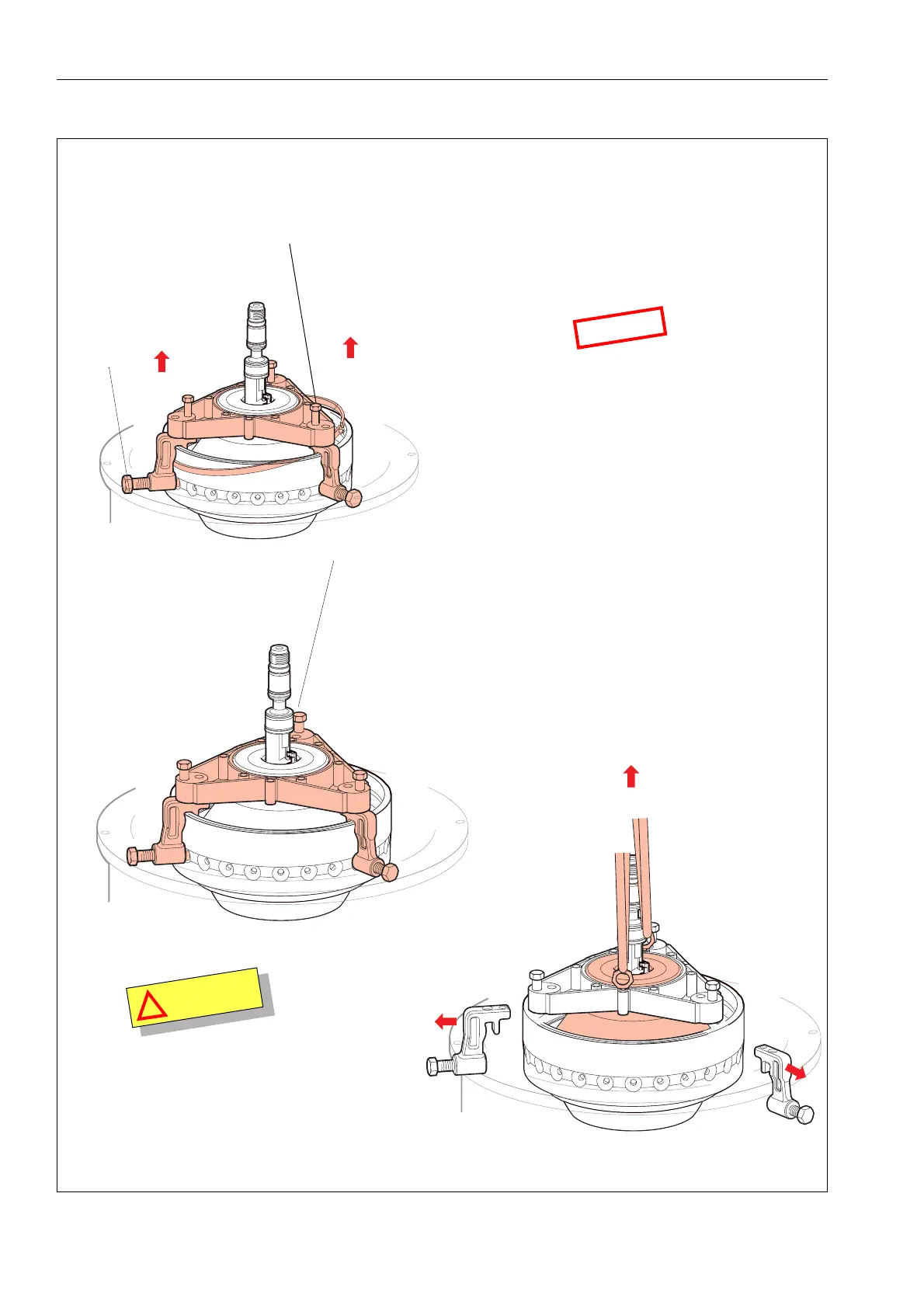

2 Removing the bowl hood.
G08628B1
b Loosen the screws
on the clamp tool.
Remove the tool.
Remove the lock
ring.
W
A
R
N
I
N
G
!
Crush hazard
The top disc can adhere to the bowl
hood when lifting. Be careful not to
accidentally drop it.
d Remove the clamps
and attach lifting eyes
to the compressing
tool and lift off the
bowl hood.
c Fit the compressing tool and the
puller screws.
Pull the bowl hood off by
screwing the screws alternately
(max. 1/2 turn) and gradually
increase the momentum evenly
until the bowl hood come loose.
a Remove the compressing
screws.
N
O
T
E
The bowl hood must be pulled off
straight up, in order not to get stuck.
Recommendation: Take
measurements with a calliper around
the bowl, between the upper edge of
the bowl body and the bowl hood, to
check that the bowl hood is being
pulled off straight up.
