6.3 DISMANTLING 6 SERVICE, DISMANTLING, ASSEMBLY
56

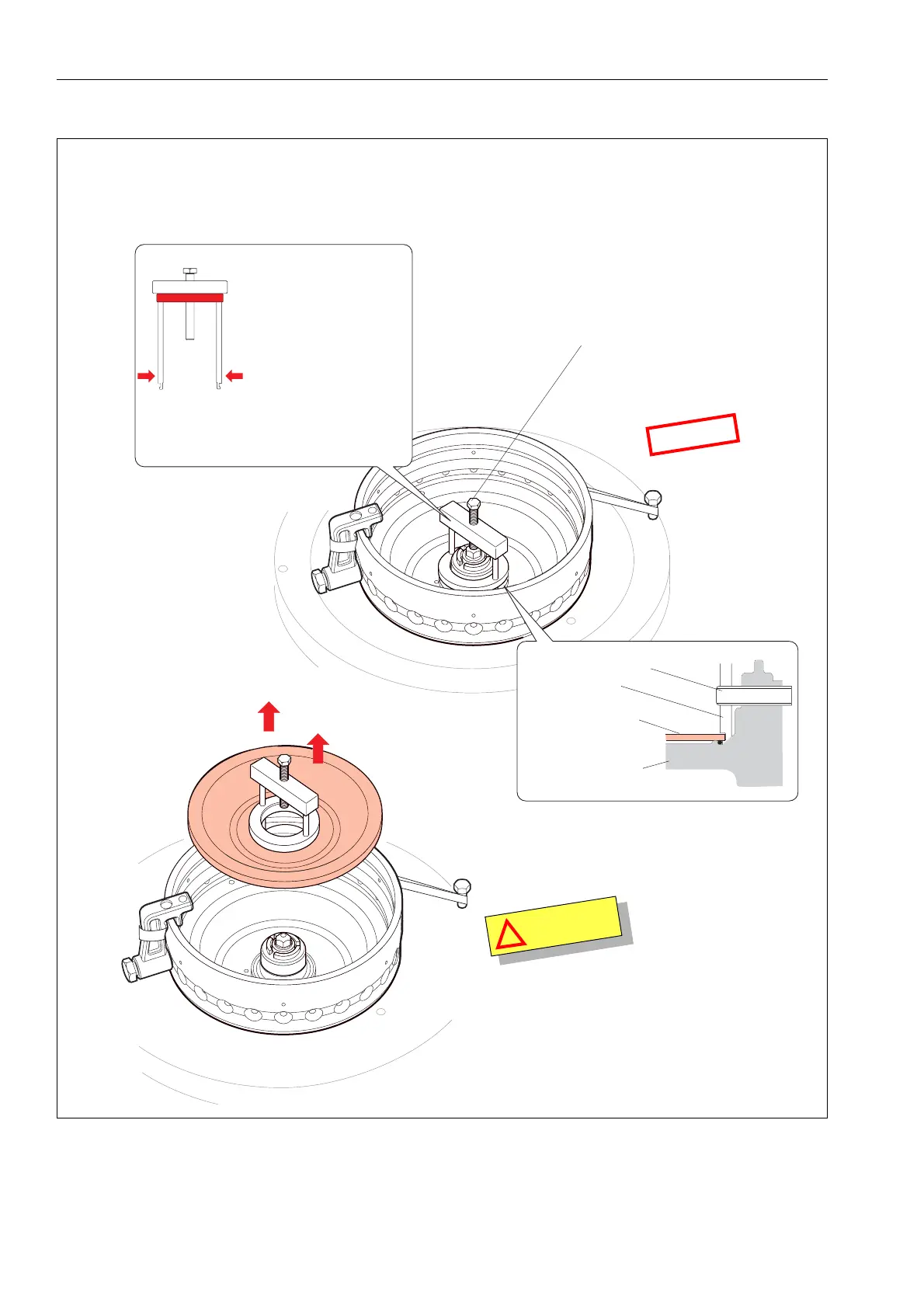

8 Removing the discharge slide.
G0863261
a Fit the lifting tool by
pressing the puller rods
towards each other and
position them into the
two slots on the bowl
bottom.
Slide metal ring down
over bowl nave.
Puller rod
Discharge slide
b Ease off the discharge slide
by turning the central screw.
c Lift out the discharge slide.
W
A
R
N
I
N
G
!
Crush hazard
The ring on the lifting tool must be pushed
down against the discharge slide,
otherwise the discharge slide may come
loose from the tool.
Bowl body
Ring on tool
N
O
T
E
If discharge slide is
difficult to remove,
tap lightly on outside
edge with a soft
faced hammer.
