6 SERVICE, DISMANTLING, ASSEMBLY 6.3 DISMANTLING

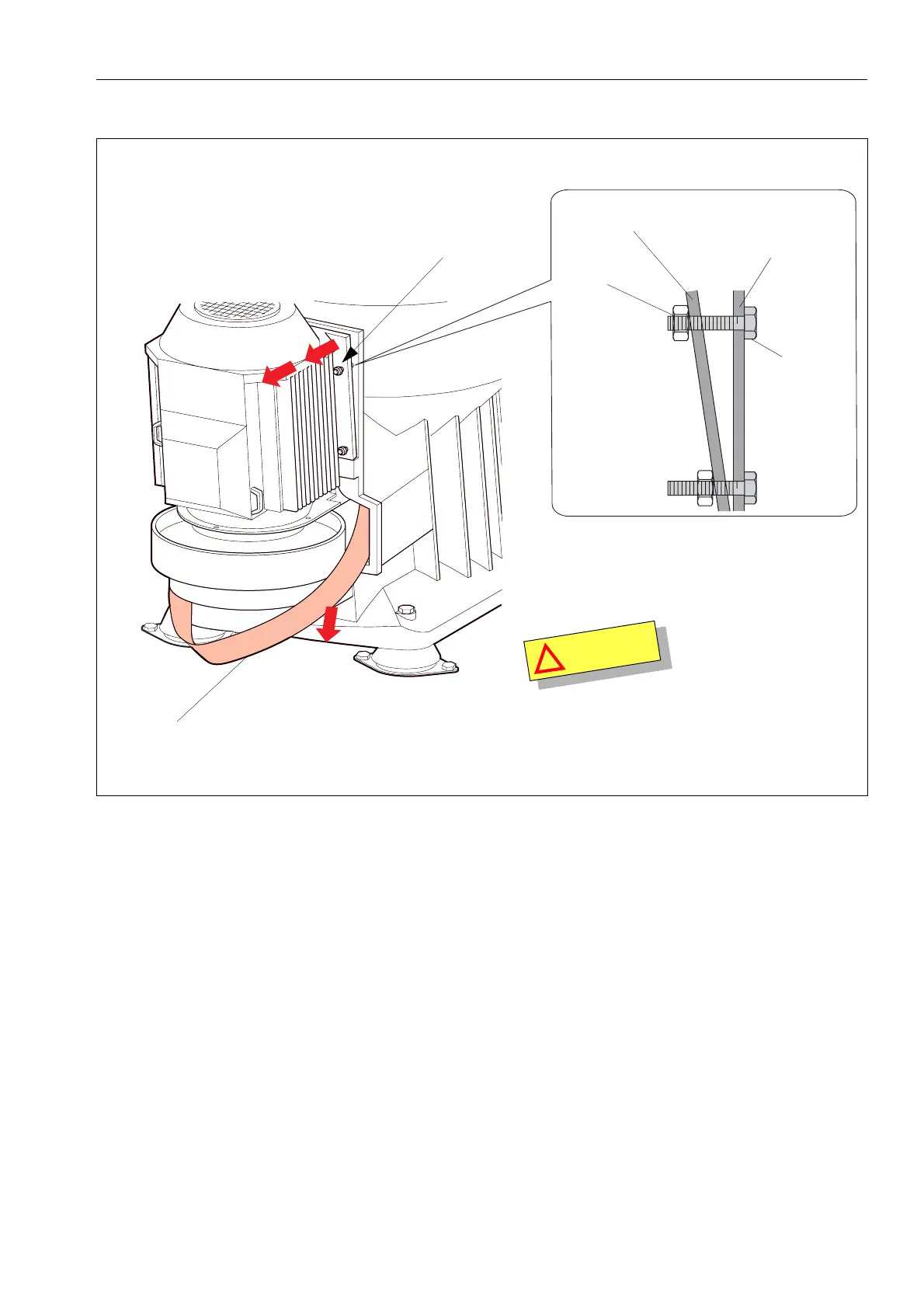

3 Loosen the flat belt, by tilting the motor.
G08588A1
a Loosen, but do not remove, the screws holding
the motor. Start with the two screws at the bottom.
Do not loosen more than shown in the illustration.
b Loosen the two upper screws a little bit more so
that the motor can be tilted. Do not loosen more
than shown in the illustration.
c Remove the flat belt from the motor pulley.
W
A
R
N
I
N
G
!
Crush hazard
The motor will come off if the screws are
unscrewed.
Separator frame
Motor
Screw
Nut
