56 Rockwell Automation Publication 2198-UM001I-EN-P - May 2019
Chapter 3 Mount the Kinetix 5500 Drive System
This hole pattern applies when transitioning from frame 2 drives to frame 1
drives. To mount additional frame 1 drives to the right of Axis 2 in this figure,
refer to the frame 1 hole pattern in Figure 25
.

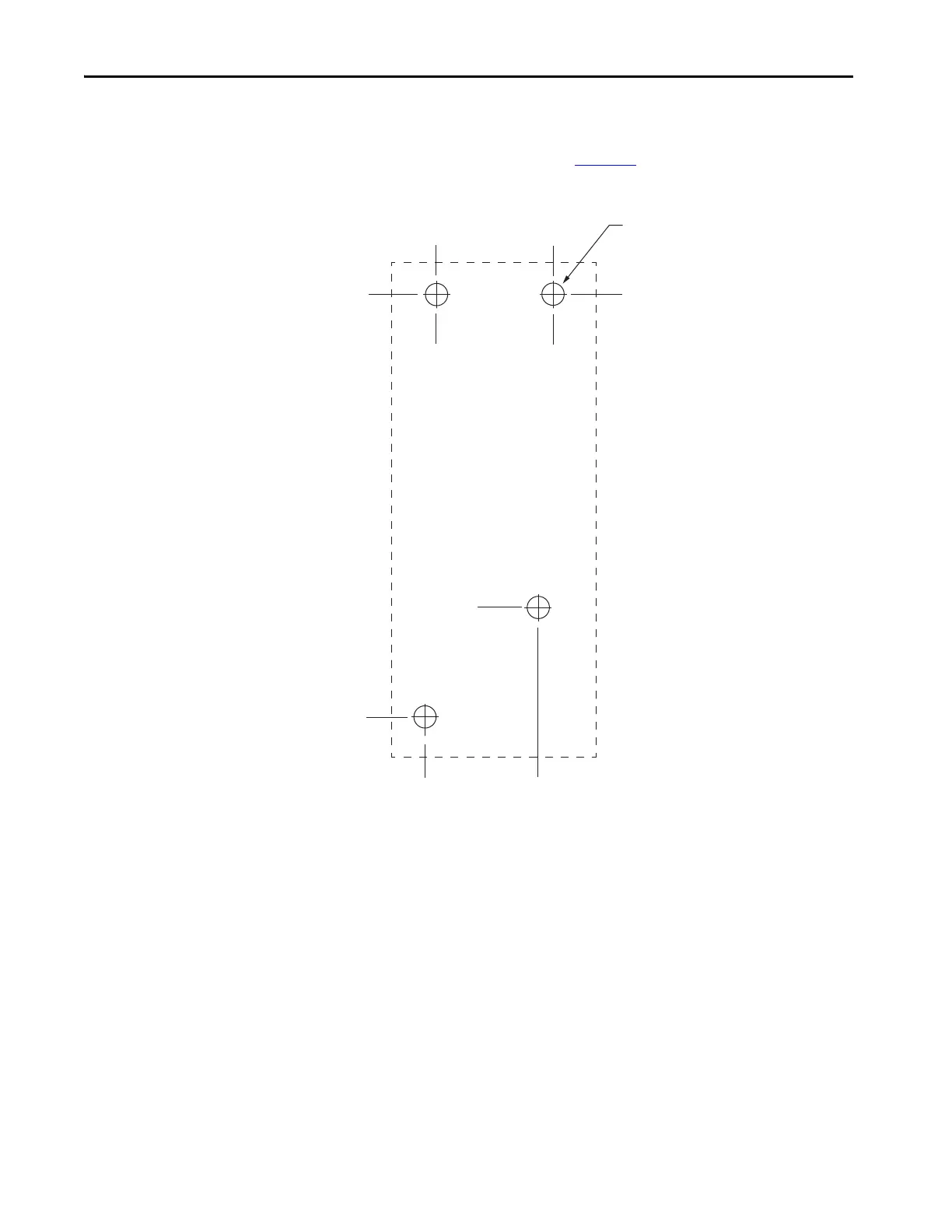

Figure 26 - Frame 2 to Frame 1 Hole Pattern
4x
ØM4 (#8-32)
Axis 1
(frame 2)
243.84
0
0
5.00
57.00
52.50
50.15
Axis 2
(frame 1)
243.83
Hole spacing is measured in millimeters
and not converted to inches to avoid
errors due to rounding.
