Star Topology
In this example, the devices are connected by using star topology. Each device is
connected directly to the switch.
Kinetix 5500 drives have dual ports, so linear topology is maintained from
drive-to-drive, but Kinetix 5500 drives and other devices operate
independently. The loss of one device does not impact the operation of other
devices.

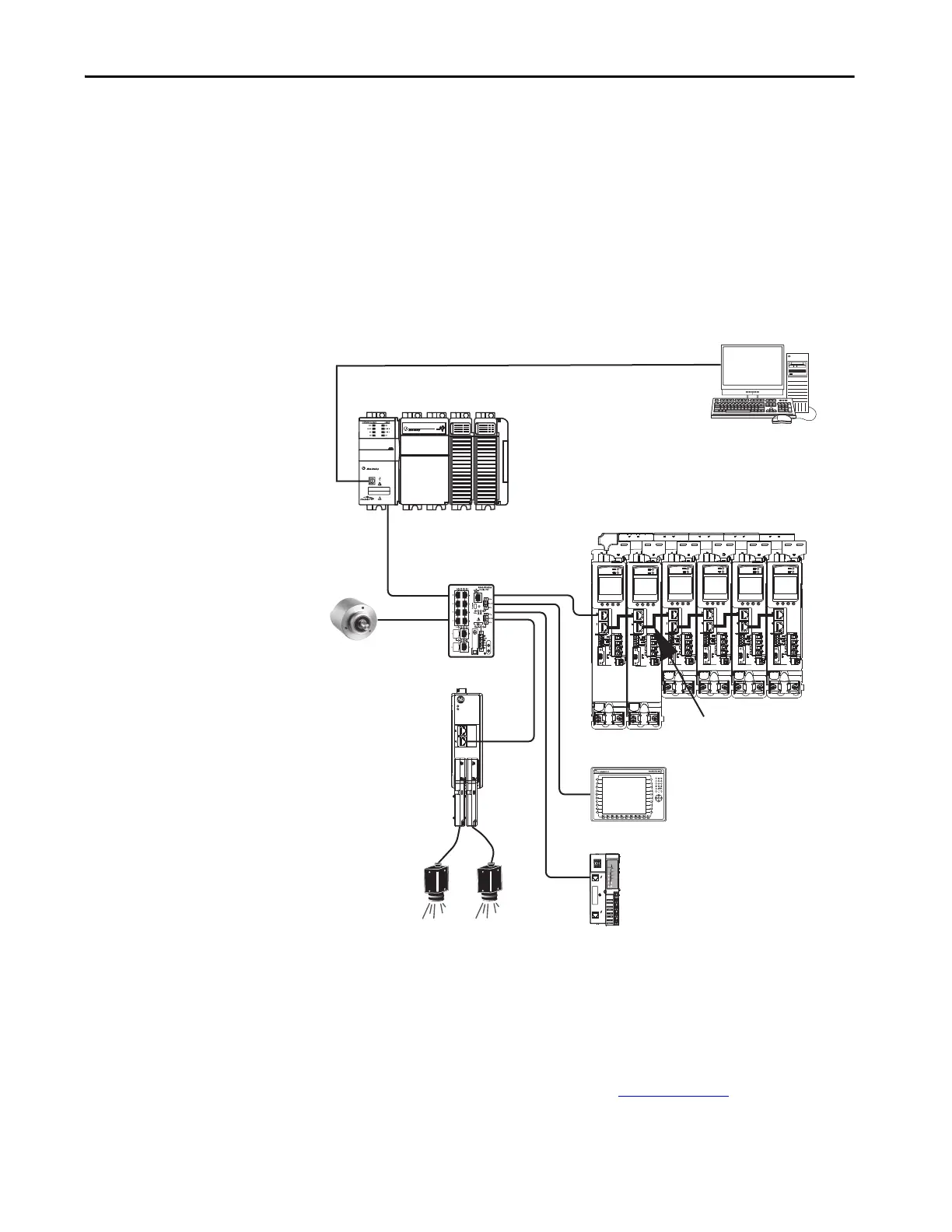

Figure 9 - Kinetix 5500 Star Communication Installation
You can use the 842E-CM integrated motion encoder for applications
requiring an external encoder for gearing or camming to the Kineitx 5700
drive. By providing auxiliary feedback directly through the EtherNet/IP
network, the 842E-CM encoder helps eliminate the need for point-to-point
wiring while letting customers use the encoder in a variety of network
topologies. For more information, see the 842E-CM Integrated Motion on
EtherNet/IP Product Profile, publication 842ECM-PP001
.
1 (Front)
2 (Rear)
00:00:BC:2E:69:F6
MOD
NET
OUTPUT-A OUTPUT-B
2198-ABQE
Encoder Output Module
1585J-M8CBJM-x
Ethernet (shielded) Cable
1734-AENTR POINT I/O
EtherNet/IP Adapter
CompactLogix Controller Programming Network
PanelView Plus
Display Terminal
1783-BMS
Stratix® 5700
Switch
1585J-M8CBJM-OM15
0.15 m (6 in.) Ethernet cable
for drive-to-drive connections.
Kinetix 5500 Servo Drive System
CompactLogix 5370 Controller
Studio 5000 Logix Designer
Application
842E-CM Integrated
Motion Encoder
To Next Page
