Rockwell Automation Publication 2198-UM001I-EN-P - May 2019 129
Configure and Start the Kinetix 5500 Drive System Chapter 6
Configure Feedback-only Axis
Properties

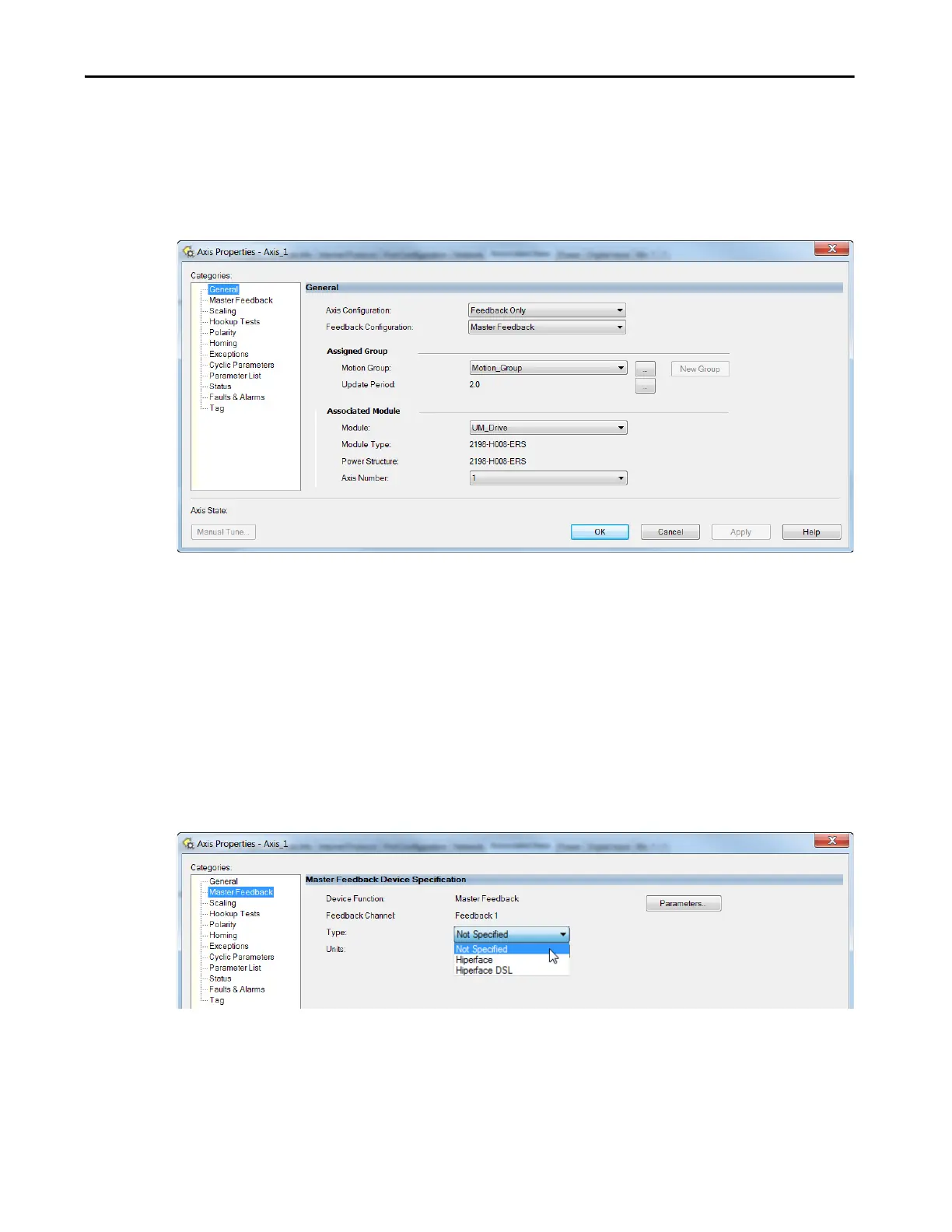

Follow these steps to configure feedback-only axis properties.
1. In the Controller Organizer, right-click an axis and choose Properties.
2. Select the General category.
The General dialog box appears.
3. From the Axis Configuration pull-down menu, choose Feedback Only.
4. From the Feedback Configuration pull-down menu, choose Master
Feedback.
5. From the Module pull-down menu, choose the drive to associate with
your Feedback Only axis.
The Module Type and Power Structure fields populate with the chosen
drive catalog number.
6. Click Apply.
7. Select the Master Feedback Category.
The Master Feedback Device Specification appears.
8. From the Type pull-down menu, choose a feedback device type.
9. Review other categories in the Controller Organizer and make changes
as needed for your application.
10. Click OK.
