Rockwell Automation Publication 2198-UM001I-EN-P - May 2019 145
Configure and Start the Kinetix 5500 Drive System Chapter 6
Bus-sharing Group Example
In this example, twelve axes are needed to support the motion application. All
twelve axes are configured in the same Motion group in the Logix Designer
application.
However, the twelve axes of motion are also configured as two bus-sharing
groups and one standalone drive in Module Properties>Power tab. By creating
two bus-sharing groups, a converter drive that faults in Group 1 only disables
Group 1 drives, and has no effect on the drive operation of Group 2 or the
Standalone drive.

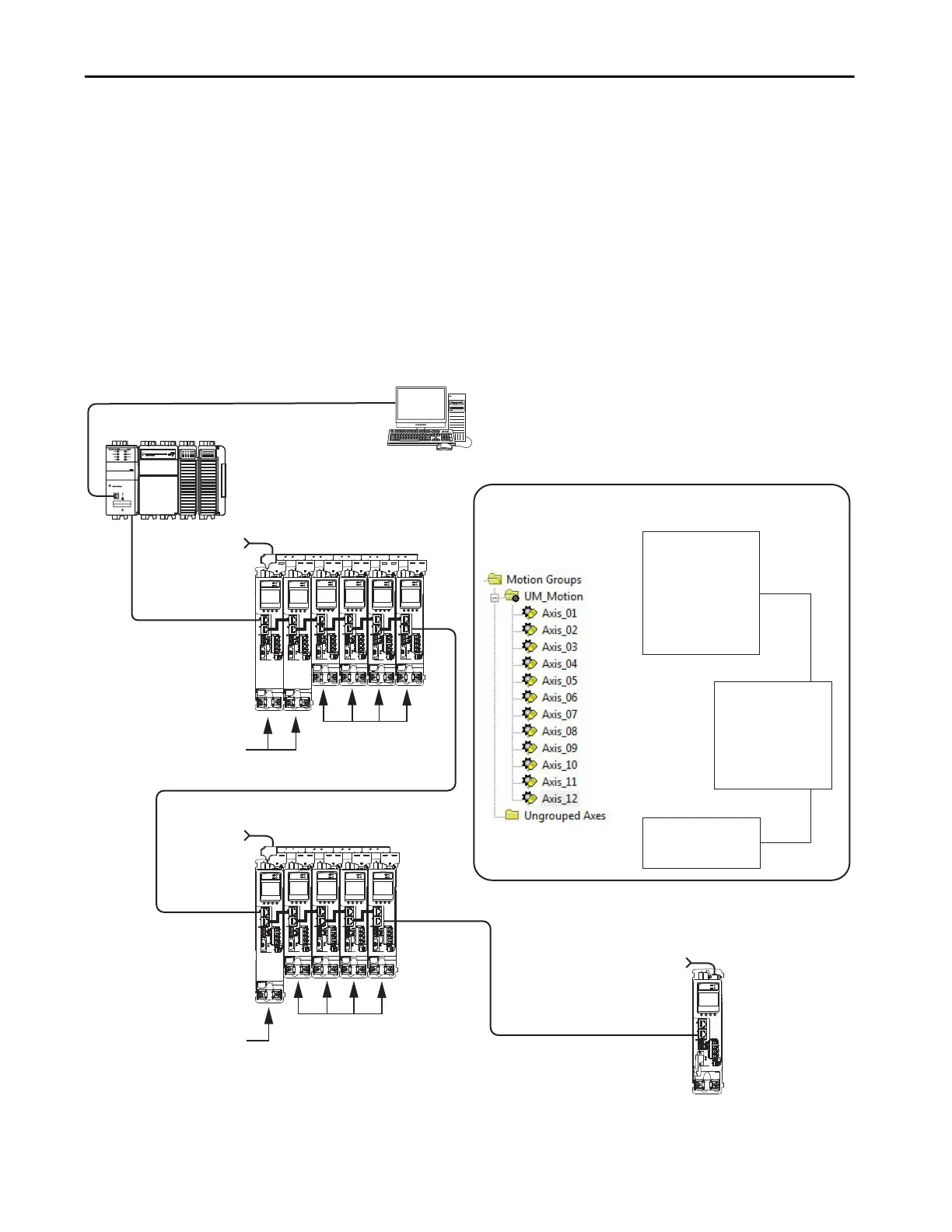

Figure 65 - Bus-sharing Group Example
Kinetix 5500 Servo Drive System
Group 1 (shared AC/DC hybrid)
Kinetix 5500 Servo Drive System
Group 2 (shared-DC common-bus)
Kinetix 5500 Servo Drive
Standalone
2198-H040-ERSx
Common-bus Leader Drive
2198-H003-ERSx
Common-bus
Follower Drives
2198-H040-ERSx
Common-bus (converter)
Leader Drives
2198-H003-ERSx
Common-bus (inverter)
Follower Drives
Three-phase and
24V Input Power
Three-phase and
24V Input Power
Three-phase and
24V Input Power
CompactLogix 5370 Controller
Logix Designer
Application
1585J-M8CBJM-x
Ethernet (shielded) Cable
CompactLogix Controller Programming Network
Logix Designer Application
Bus Sharing Group 1
Axis_01
Axis_02
Axis_03
Axis_04
Axis_05
Axis_06
Bus Sharing Group 2
Axis_07
Axis_08
Axis_09
Axis_10
Axis_11
Standalone
Axis_12
1585J-M8CBJM-x
Ethernet (shielded) Cable
Controller Organizer
Module Properties>Power Tab
