236 Rockwell Automation Publication 2198-UM001I-EN-P - May 2019

Appendix D Motor Control Feature Support

Enable the Stability Control Feature

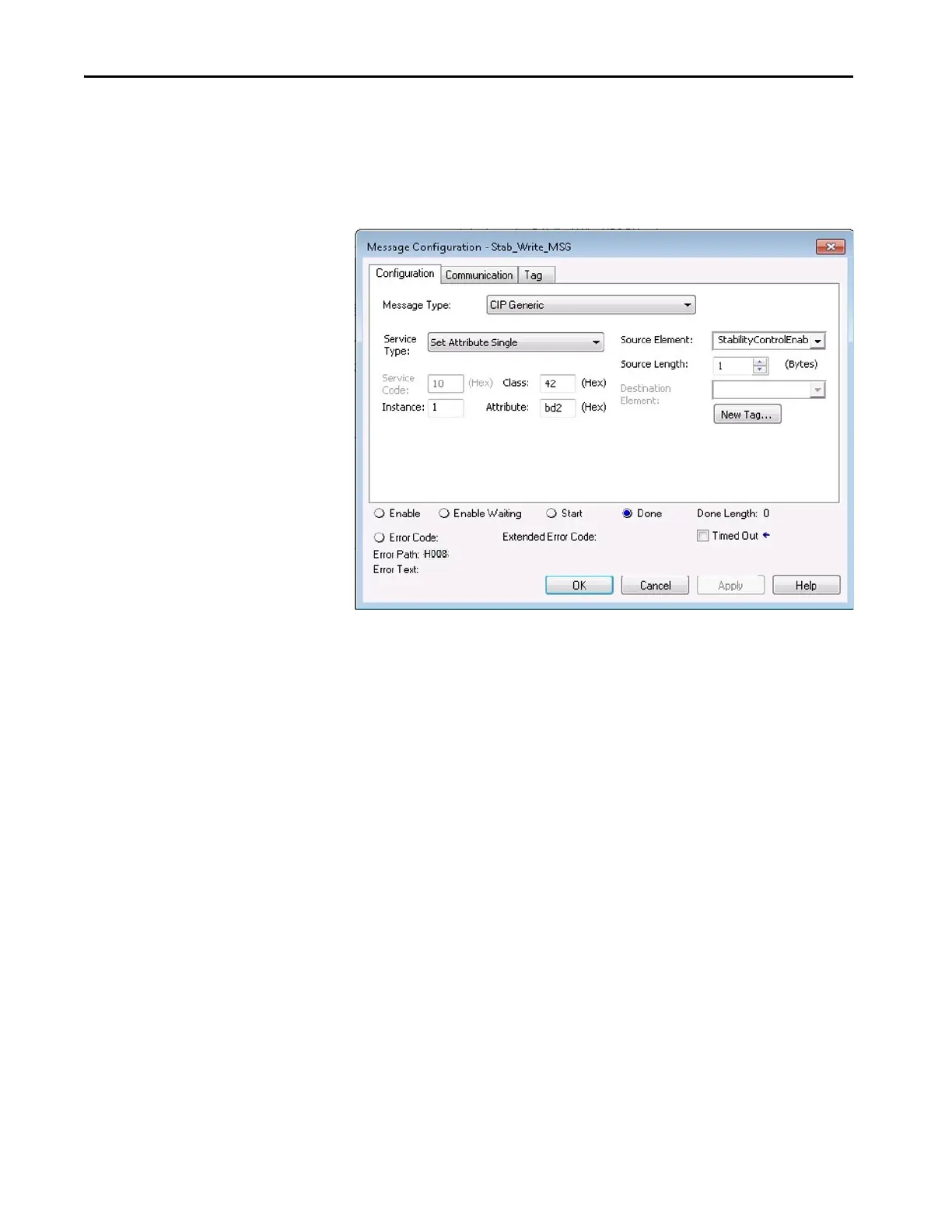

In this example, a Message Configuration (MSG) instruction is configured to

enable the StabilityControl attribute for axis 1. The Instance field is used to

direct the message to the proper axis.
