108 Rockwell Automation Publication 2198-UM001I-EN-P - May 2019
Chapter 6 Configure and Start the Kinetix 5500 Drive System
Understand the Kinetix 5500
Display
The Kinetix 5500 drive has two status indicators and an LCD status display.
The indicators and display are used to monitor the system status, set network
parameters, and troubleshoot faults. Four navigation buttons are directly below
the display and are used to select items from a soft menu.

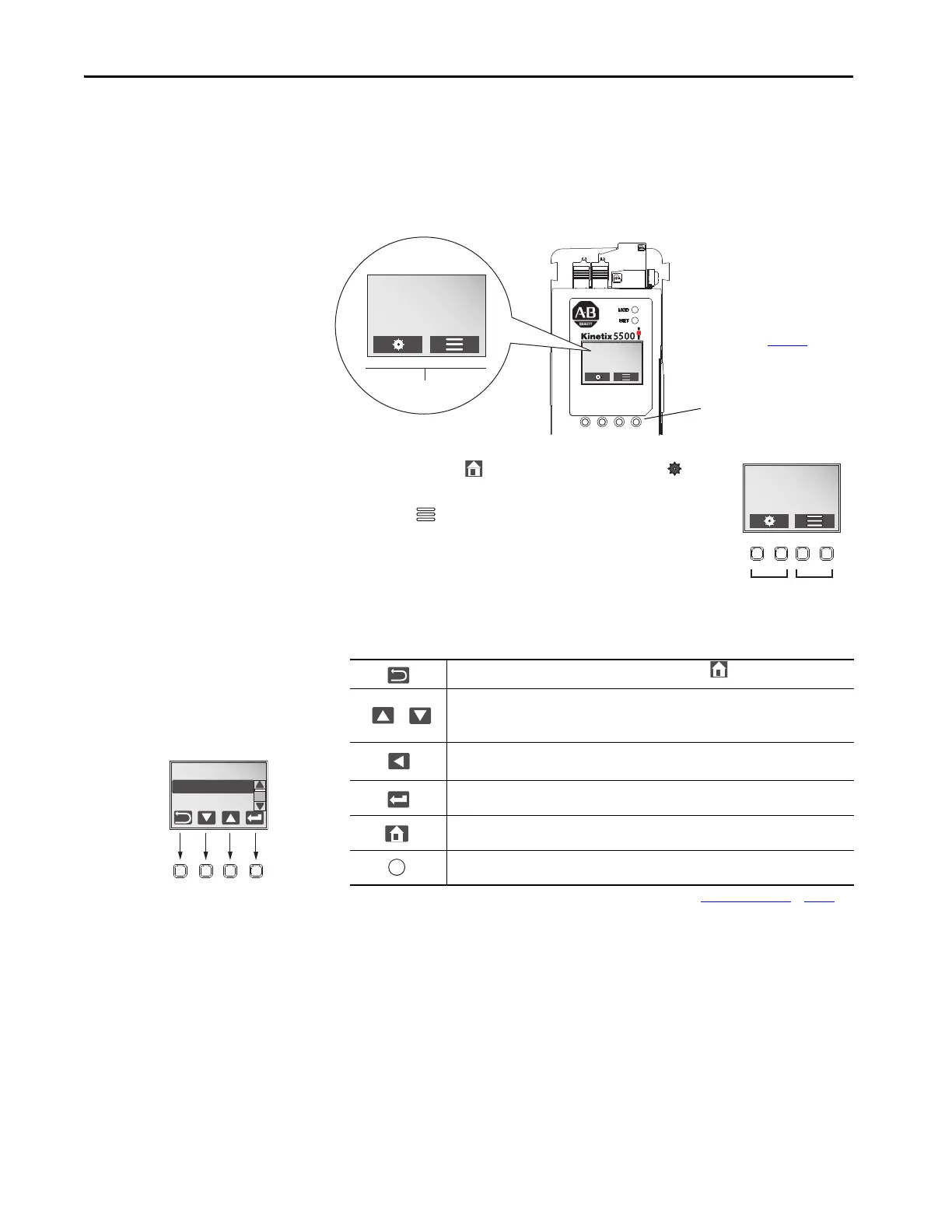

Figure 62 - Kinetix 5500 Drive LCD Display and Status Indicators
This is the Home screen. The setup selections are
tied to the two Setup (left-side) buttons and the menu
selections are tied to the two Menu (right-side)
buttons.
The soft menu provides a changing selection that corresponds to the current
screen. Use the navigation buttons to perform the following.
PRECHARAGE
192.168.1.1
DC BUS: 0.3V
PRECHARGE
192.168.1.1
DC BUS: 0.3V
Soft Menu
Navigation Buttons
Status Indicators (see page 156
)
Press to go back. Pressing enough times results in the Home screen.
Pressing either arrow moves the selection to the next (or previous) item. When changing
values, pressing the up arrow increments the highlighted value. Values rollover after
reaching the end of the list.
Press to select values to change, moving from right to left. Values rollover when reaching the
end of the list.
Press to select a menu item.
Press to return to the Home screen.
Press to display the fault help (possible solutions in troubleshooting tables).
(1)
(1) Refer to the Kinetix 5500 Fault Codes.xlsx file to review the troubleshooting tables. See Access the Attachments on page 13 for
information on accessing the Kinetix 5500 Fault Codes.xlsx file.
PRECHARAGE
192.168.1.1
DC BUS: 0.3V
MAIN MENU
MOTOR INFO
MODULE INFO
Each soft menu item is executed by pressing the
navigation button directly below the item, as
shown in this example.
To Next Page
