Rockwell Automation Publication 2198-UM001I-EN-P - May 2019 215

Upgrade the Drive Firmware Appendix B

Verify the Firmware Upgrade

Follow these steps to verify your firmware upgrade was successful.

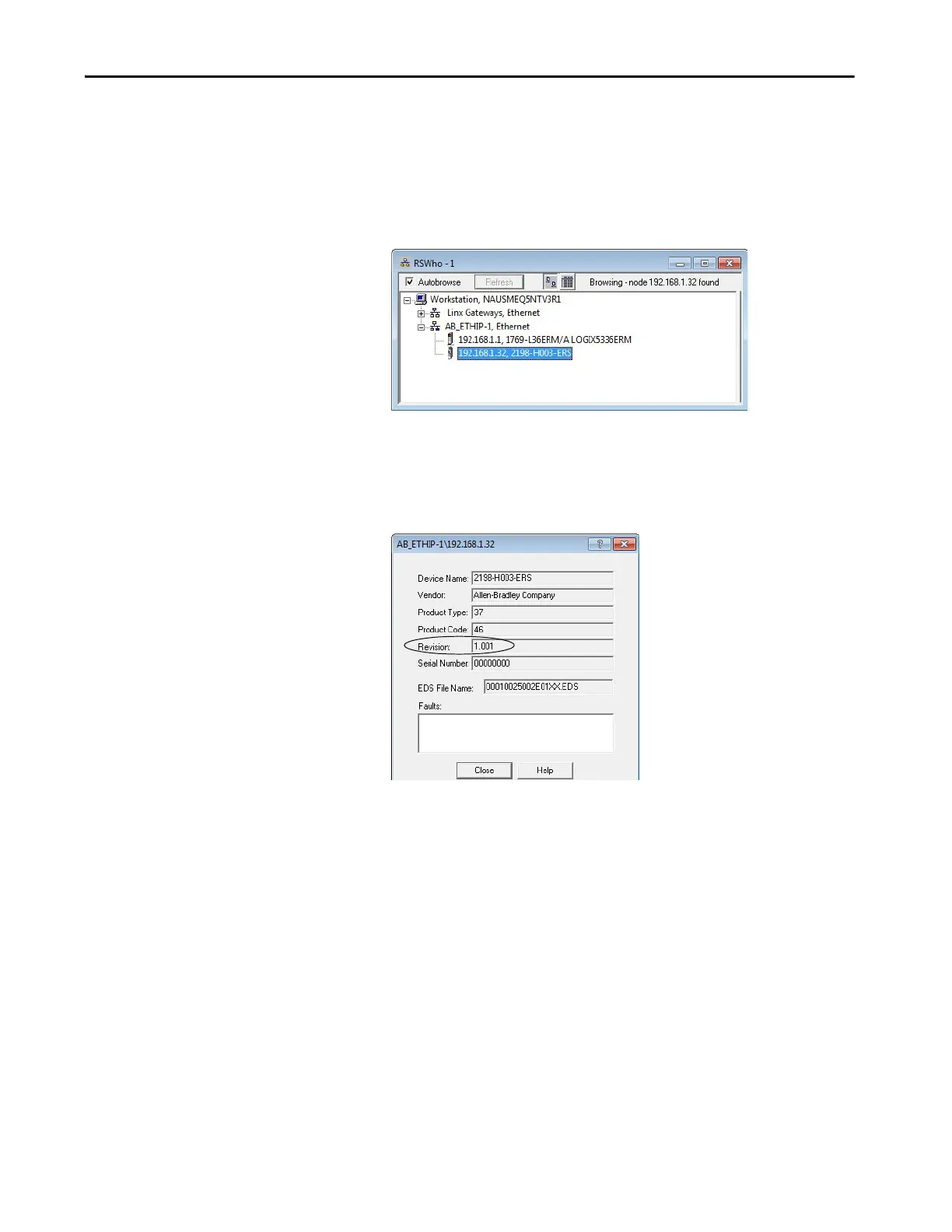

1. Open your RSLinx software.

2. From the Communications menu, choose RSWho.

3. Expand your Ethernet node, Logix backplane, and EtherNet/IP

network module.

4. Right-click the drive module and choose Device Properties.

The Device Properties dialog box appears.

5. Verify the new firmware revision level.

6. Click Close.

TIP Verifying the firmware upgrade is optional.
