84 Rockwell Automation Publication 2198-UM001I-EN-P - May 2019
Chapter 5 Connect the Kinetix 5500 Drive System
Wire the Power Connectors
This section provides examples and guidelines to assist you in making
connections to the input power connectors.
Refer to Power Wiring Examples
on page 194 for an interconnect diagram.
Wire the 24V Control Power Input Connector
The 24V power (CP) connector requires 24V DC input for the control
circuitry. The single-axis connector plug is included with the drive, shared-bus
connector kits are purchased separately.

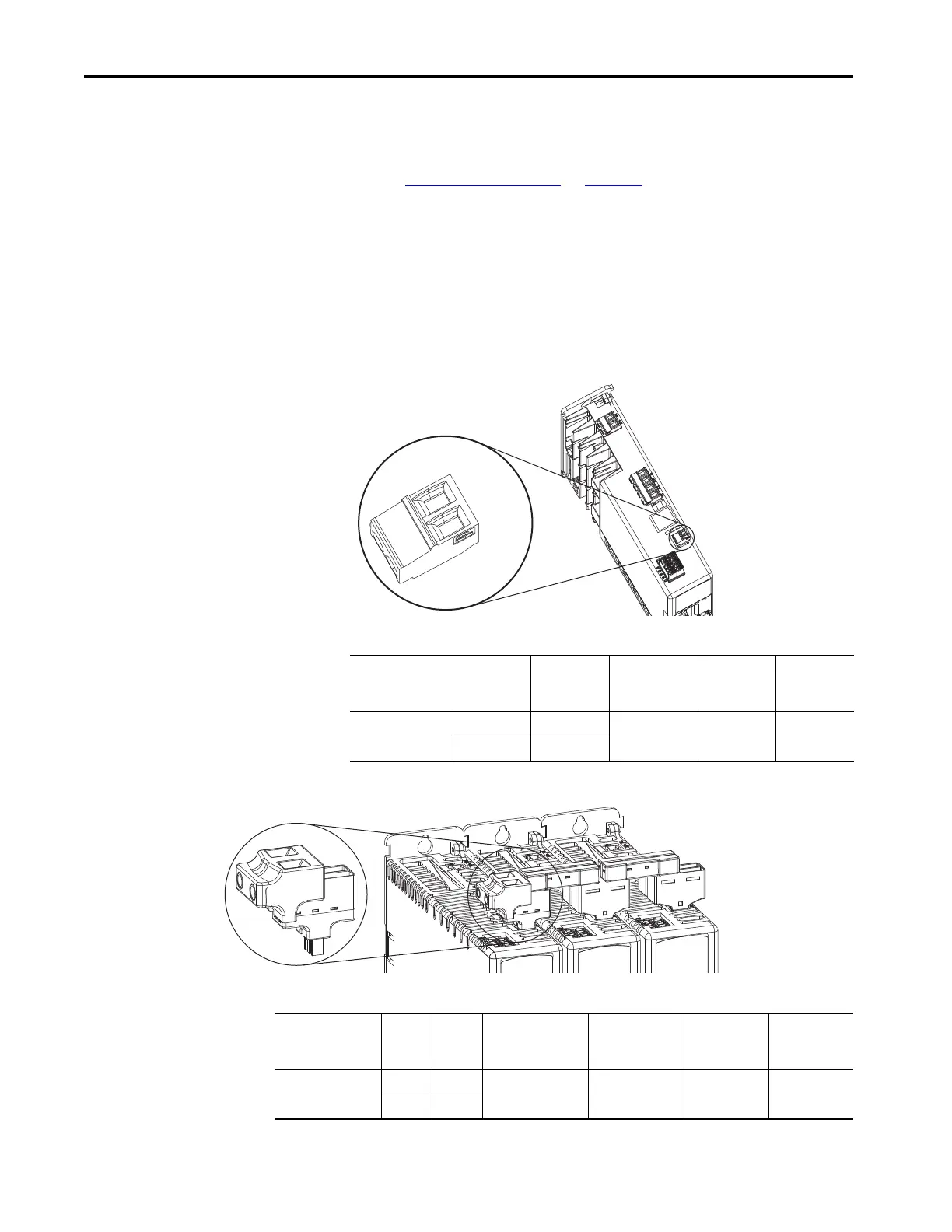

Figure 45 - CP Connector Wiring - Single Axis
Table 34 - Single-axis CP Connector Wiring Specifications
Figure 46 - CP Connector Wiring - Shared Bus
Table 35 - Shared-bus CP Connector Wiring Specifications
24V-
24V+
1
2
Remove
For DC
Bus Only
Kinetix 5500 Drive
Top View
24V (CP) Connector Plug
Drive Module
Cat. No.
CP Pin Signal
Recommended
Wire Size
mm
2
(AWG)
Strip Length
mm (in.)
Torque Value
N•m (lb•in)
2198-Hxxx-ERSx
2198-CAPMOD-1300
CP-1 24V+
0.5…2.5
(20…14)
7.0 (0.28)
0.22…0.25
(1.9…2.2)
CP-2 24V-
24V-
24V+
Kinetix 5500 Drives
Top View
24V DC Input
Wiring Connector
Drive Cat. No. CP Pin Signal
Input Current, max
A rms
Recommended
Wire Size
mm
2
(AWG)
Strip Length
mm (in.)
Torque Value
N•m (lb•in)
2198-Hxxx-ERSx
2198-CAPMOD-1300
CP-1 24V+
40 10 (6) 11.0 (0.43)
1.7…1.8
(15.0…15.9)
CP-2 24V-
