Chapter 5 Connect the Kinetix 5500 Drive System
Capacitor Module
Connections
Follow these guidelines when wiring the 2198-CAPMOD-1300 capacitor
module:
• Wire output (MS) connections to the Logix 5000™ controller
(optional).
•Refer to Kinetix 5500 Capacitor Module
wiring example on page 195.
•Refer to Kinetix 5500 Capacitor Module Status Indicators
on page 159
for troubleshooting the module status indicator and relay output.
• Refer to the installation instructions provided with your Bulletin 2198
capacitor module, publication 2198-IN004
.

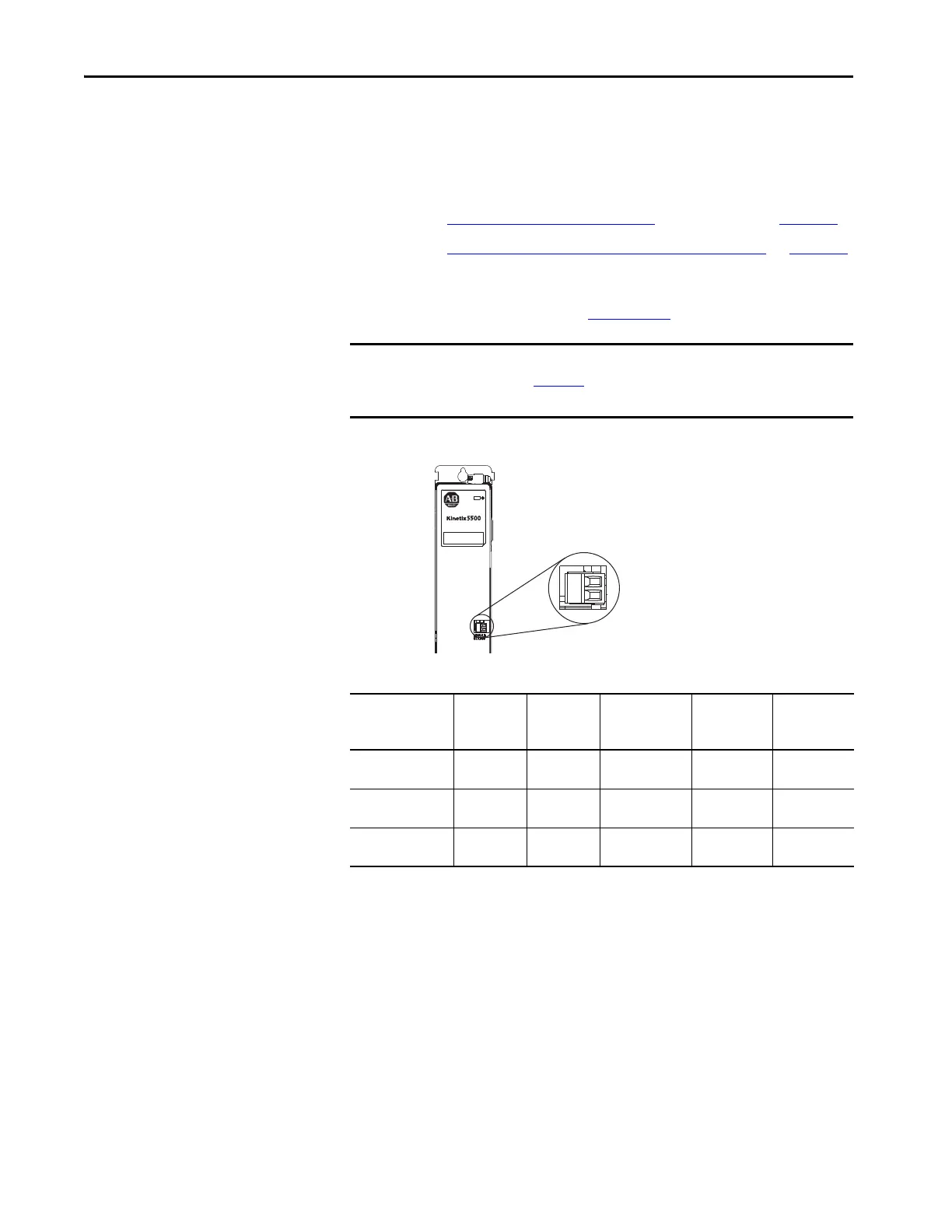

Figure 59 - MS Connector Wiring
Table 50 - Capacitor Module Connector Specifications
IMPORTANT To improve system performance, run wires and cables in the wireways as
established in Chapter
2. Connections to the DC-bus must be made with the
shared-bus connection system.
Module Status
(MS) Connector Plug
2198-CAPMOD-1300
Capacitor Module
Connector
Description
Pin Signal
Recommended
Wire Size
mm
2
(AWG)
Strip Length
mm (in.)
Torque Value
N•m (lb•in)
Module Status
MS-1
MS-2
MS
MS
0.14…1.5
(28…16)
7.0 (0.28)
0.22…0.25
(1.9…2.2)
PELV/SELV
24V power (plug)
CP-1
CP-2
24V+
24V-
0.5…2.5
(20…14)
7.0 (0.28)
0.22…0.25
(1.9…2.2)
DC-bus power Bus-bar
DC-
DC+
N/A
(1)
N/A
(1)
(1) DC bus connections are always made from one drive module to another over the shared-bus connection system. These terminals
do not receive discrete wires.
N/A
(1)
