Rockwell Automation Publication 2198-UM001I-EN-P - May 2019 261

Motor Control Feature Support Appendix D

Velocity Droop Configuration

Follow these steps to configure the velocity droop attribute.

1. In the Controller Organizer, right-click an axis and choose Properties.

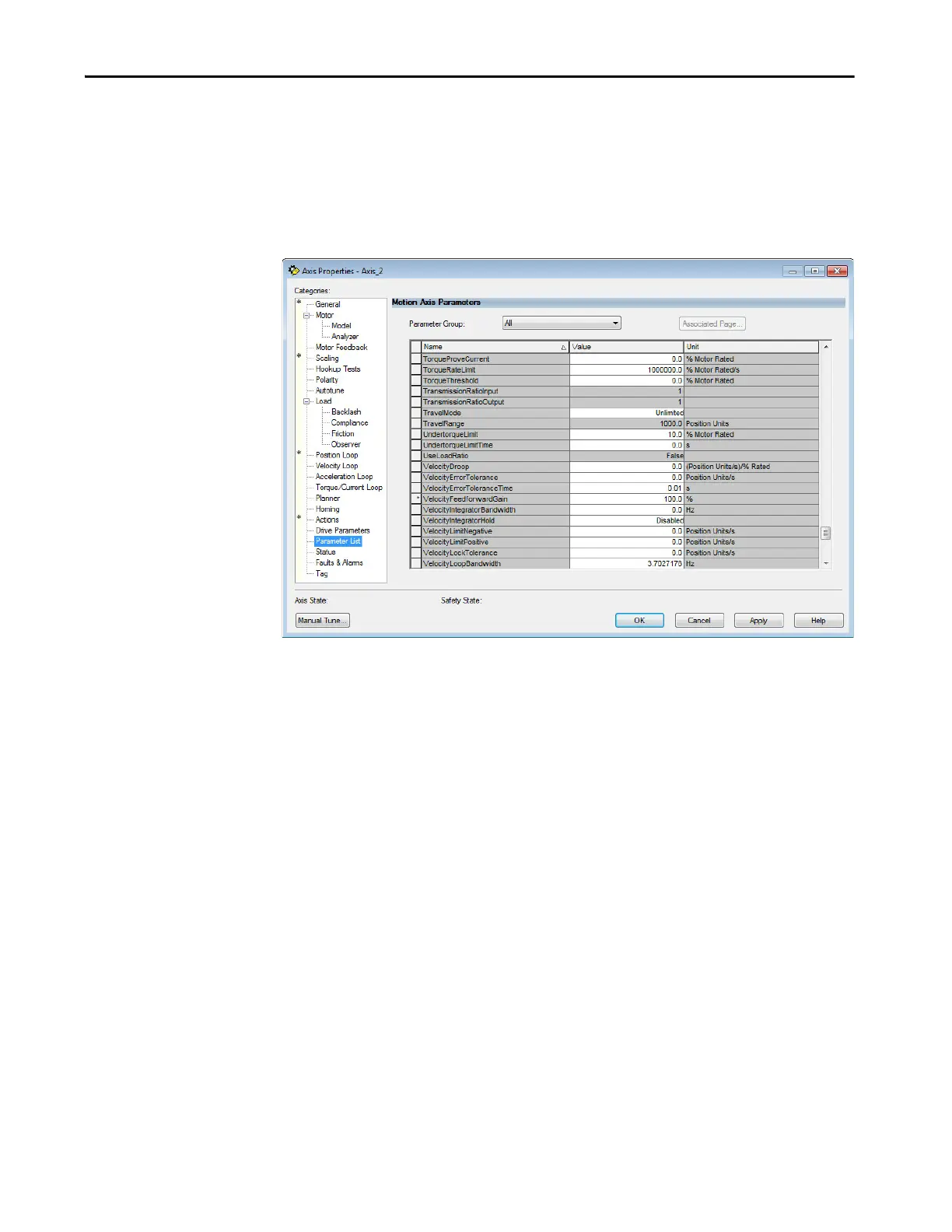

2. Select the Parameter List category and scroll to VelocityDroop.

3. Enter a value in the Velocity Droop attribute appropriate for your

application.

4. Click OK.
