Passive Shunt Considerations
The Kinetix 5500 drives all include an internal shunt that is wired to the shunt
resistor (RC) connector at the factory. Bulletin 2097-Rx external passive
shunts are available to provide additional shunt capacity for applications where
the internal shunt capacity is exceeded.
Table 13 - Bulletin 2097 Passive Shunt Options
Catalog numbers 2097-R6 and 2097-R7 are shunt resistors without an
enclosure.

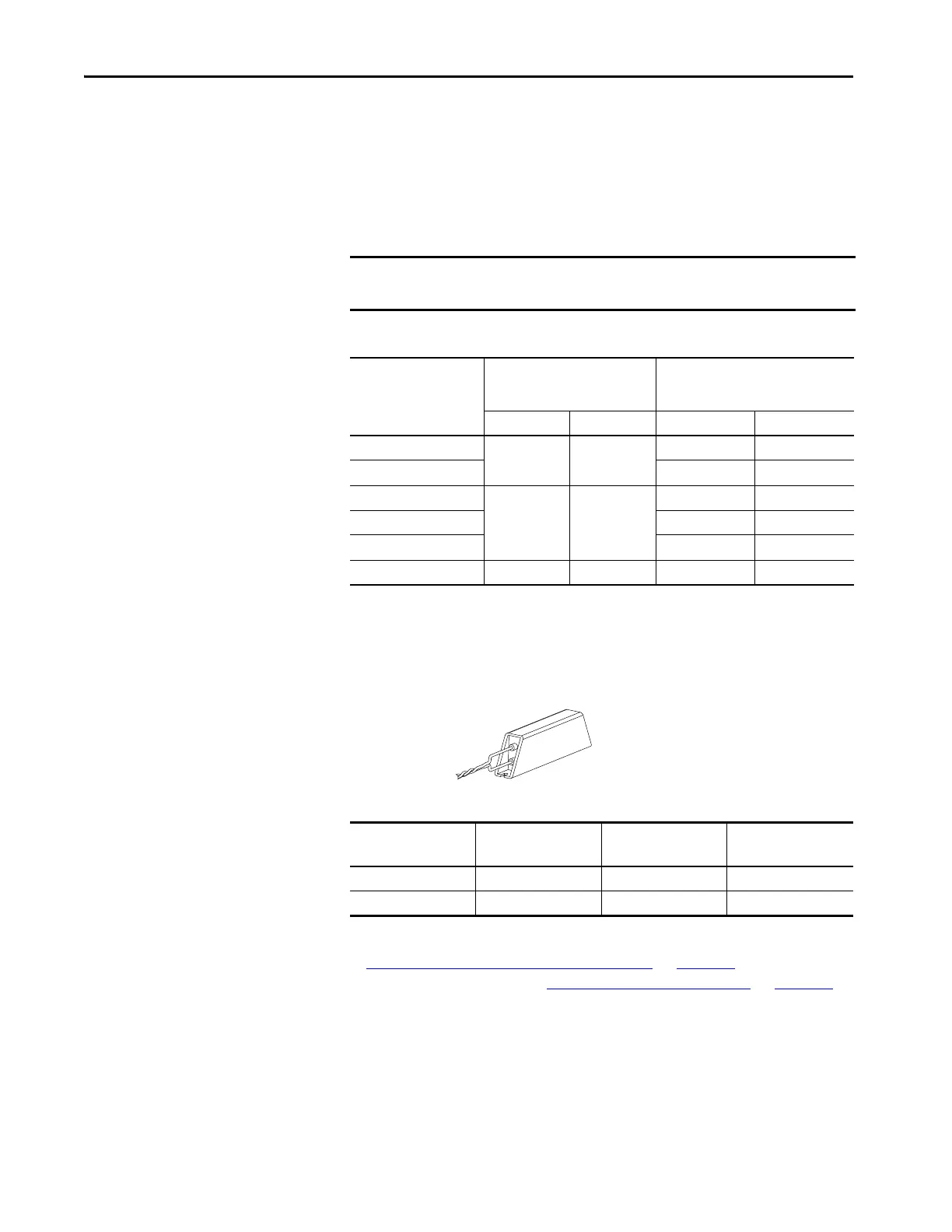

Figure 13 - External Passive Shunts
External Shunt Module Specifications
How the Bulletin 2097-Rx shunts connect to Kinetix 5500 drives is explained
in External Passive-shunt Resistor Connections
on page 105 and illustrated
with interconnect diagrams in Shunt Resistor Wiring Example
on page 198.
IMPORTANT Keep the internal shunt wires connected unless you have an external passive
shunt to connect.
Kinetix 5500 Drives
Cat. No.
Internal Shunt Specifications
External Shunt Resistor
(1)
Compatibility
Cat. No.
(1) Shunt resistor selection is based on the needs of your actual hardware configuration.
ΩW2097-R7 2097-R6
2198-H003-ERSx
100 30
X–
2198-H008-ERSx X–
2198-H015-ERSx
60 50
X–
2198-H025-ERSx X–
2198-H040-ERSx –X
2198-H070-ERSx 40 75 – X
2097-R6 and 2097-R7
Shunt Resistors
Shunt Module
Cat. No.
Resistance
Ω
Continuous Power
W
Weight, approx
kg (lb)
2097-R6 75 150 0.3 (0.7)
2097-R7 150 80 0.2 (0.4)
