198 Rockwell Automation Publication 2198-UM001I-EN-P - May 2019

Appendix A Interconnect Diagrams

Shunt Resistor Wiring

Example

Refer to the External Passive-shunt Resistor Connections on page 105 for the

Bulletin 2097 external shunt resistor catalog numbers available for

Kinetix 5500 servo drives.

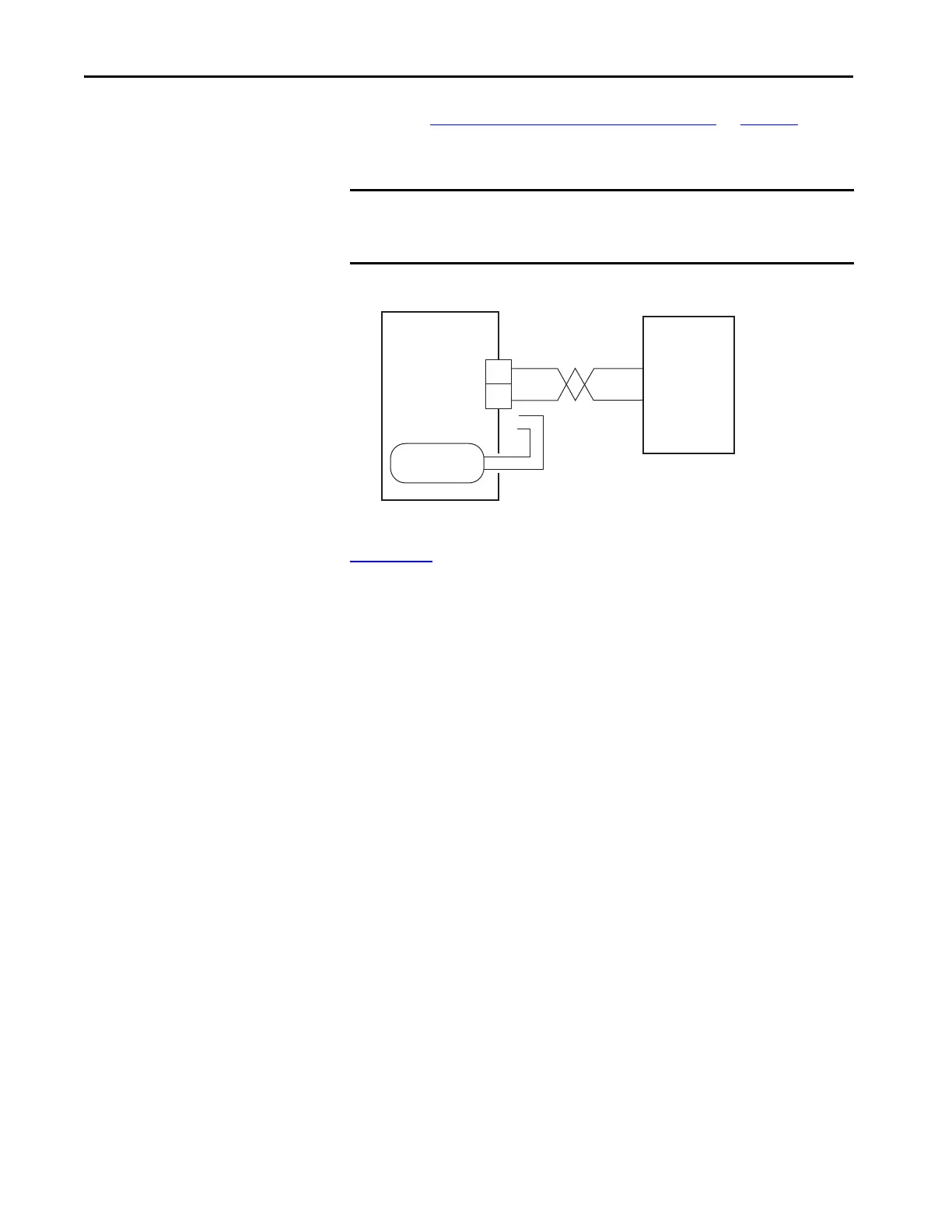

Figure 96 - Shunt Resistor Wiring Example

Refer to the Kinetix 300 Shunt Resistor Installation Instructions, publication

2097-IN002

, for shunt resistor installation instructions.

IMPORTANT Before wiring the Bulletin 2097 external shunt to the RC connector, remove

the wires from the servo drive internal shunt. Do not connect internal and

external shunt resistors to the drive.

DC+

2198-Hxxx-ERSx

Kinetix 5500 Drive

2097-Rx

Shunt

Resistor

Shunt (RC)

Connector

Internal Shunt
