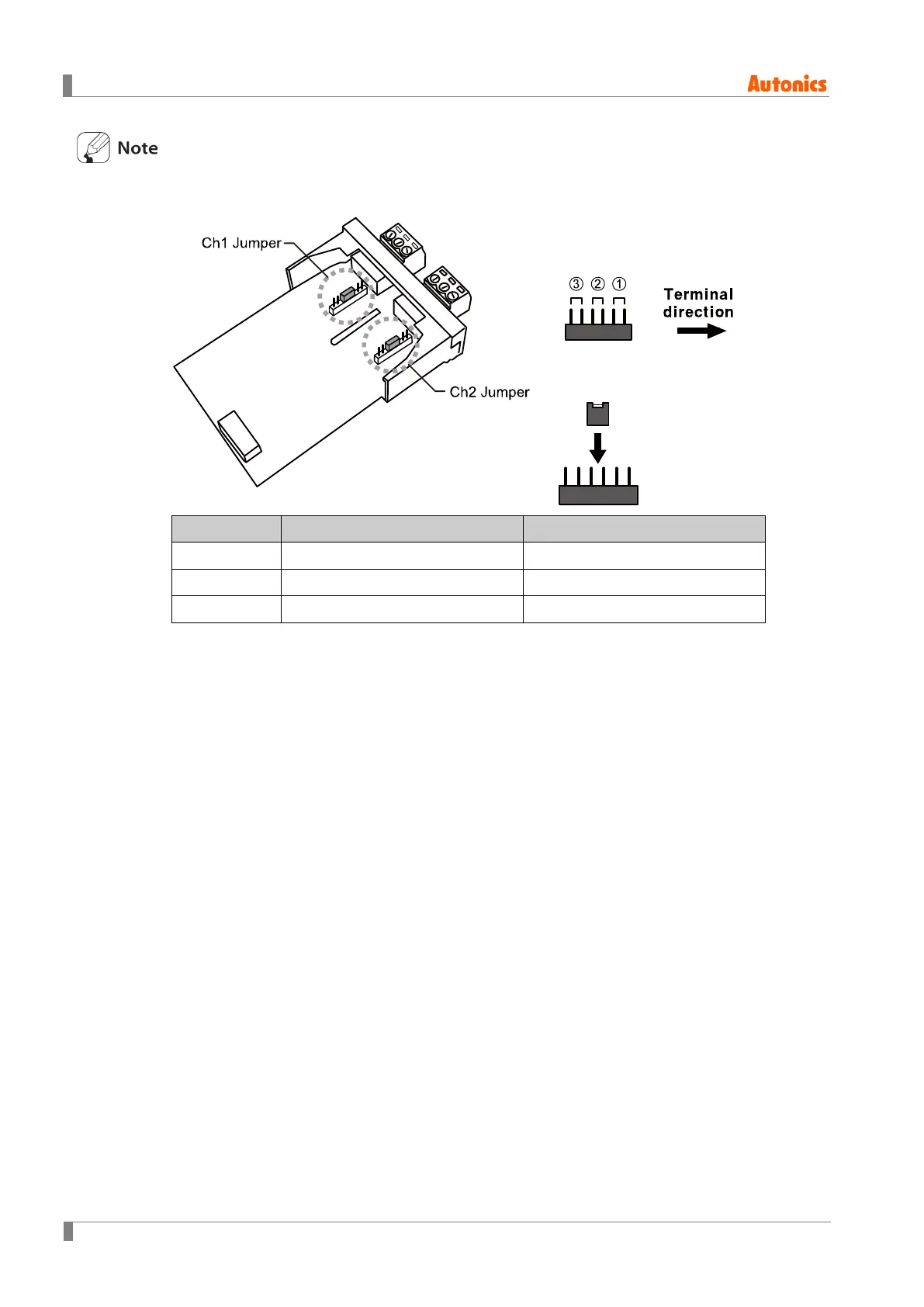

Before setting the parameters, set the jumper pin channel 1/2 of universal input card (KRN-UI2)
depending on input specification as below figure.
Jumper pin Input specification Input break alarm
①
0 to 20mA, 4 to 20mA
Enables only 4 to 20mA
②
TC, RTD, ±60mV, ±200mV Enables
③
±2V, 1 to 5V, ±5V, -1 to 10V Disables
