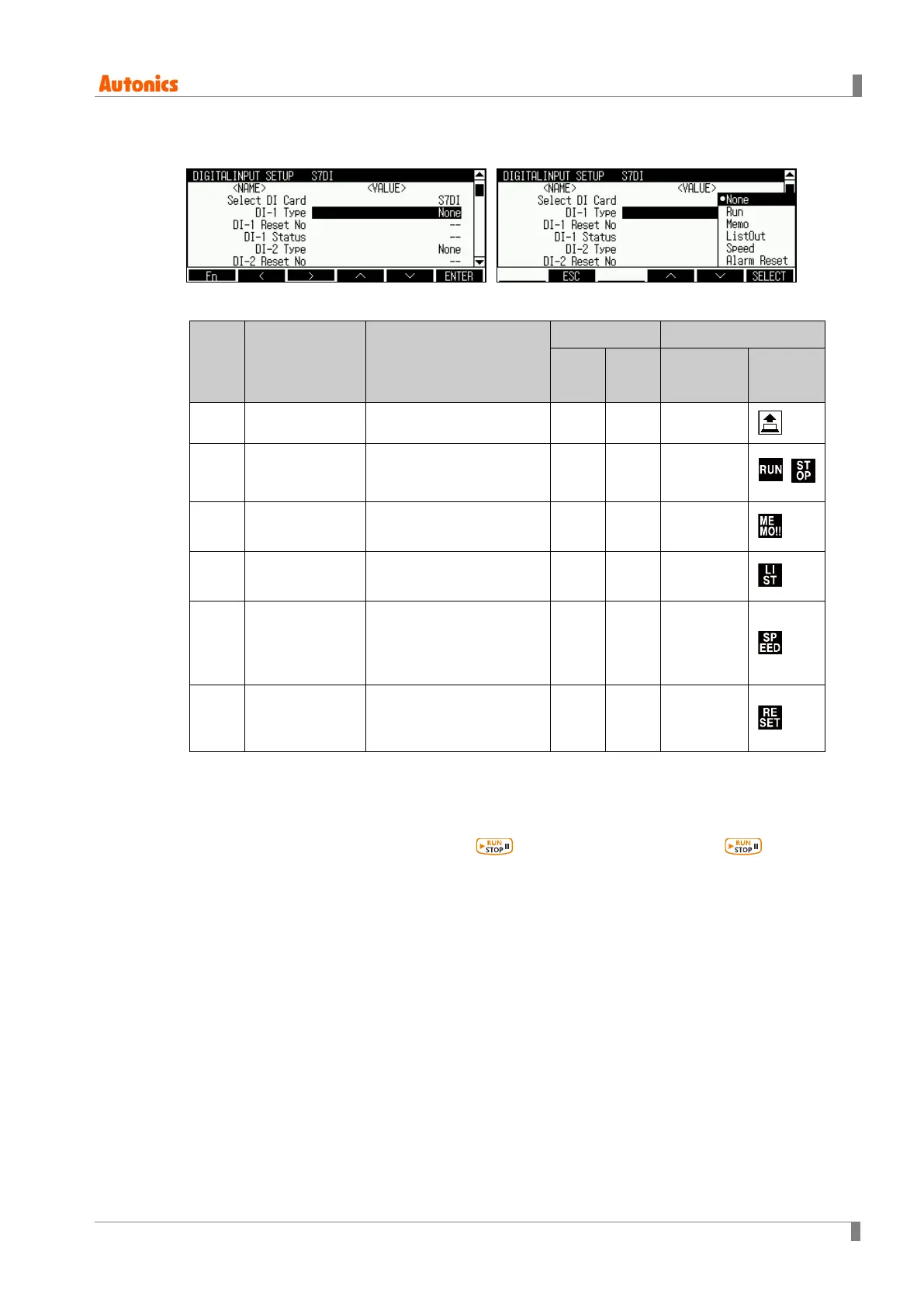

8.3.2 DI-□ Type (Select digital input □)
Select digital input.
Mode
Operation
name
Operation description
Level
Edge
Open Short
Min. signal
input
※1
Icon
※2
None - No function - - -
Run
※3
Start/Stop
recording
Starts/Stops recording on
recording paper.
STOP RUN
STOP↔RU
N
,
Memo Digital memo
Executes digital memo
function
- - Memo
ListOut List output
Outputs parameter set
information
- - ListOut
Speed
Record speed
(graph) and
period (digital)
Executes to record with set
option record speed and
period (Option speed,
period).
Standa
rd
Option
Standard
↔Option
Alarm
Reset
Forced alarm
reset
In case alarm option is
alarm latch, alarm output is
reset by force.
- - Alarm Reset
※1.At every min. signal input width (over 0.3 sec.), it executes the function repeatedly.
※2. The appropriate icon is displays on the screen, digital input function is operating.
※3. When digital input operation status is set as Level in RUN mode, you cannot operate
starting/stopping recording with front key. (If it set as ‘Edge’, front key
operates starting/stopping recording.)
When reservation record(Reservation) is set and now is reservation recording state, digital
input function is not available as RUN mode. This is available in record stop state by
reservation record.
 Setting range: None ↔ Run ↔ Memo ↔ ListOut ↔ Speed ↔ Alarm Reset
 Factory default: None
