8 Parameter detail setup

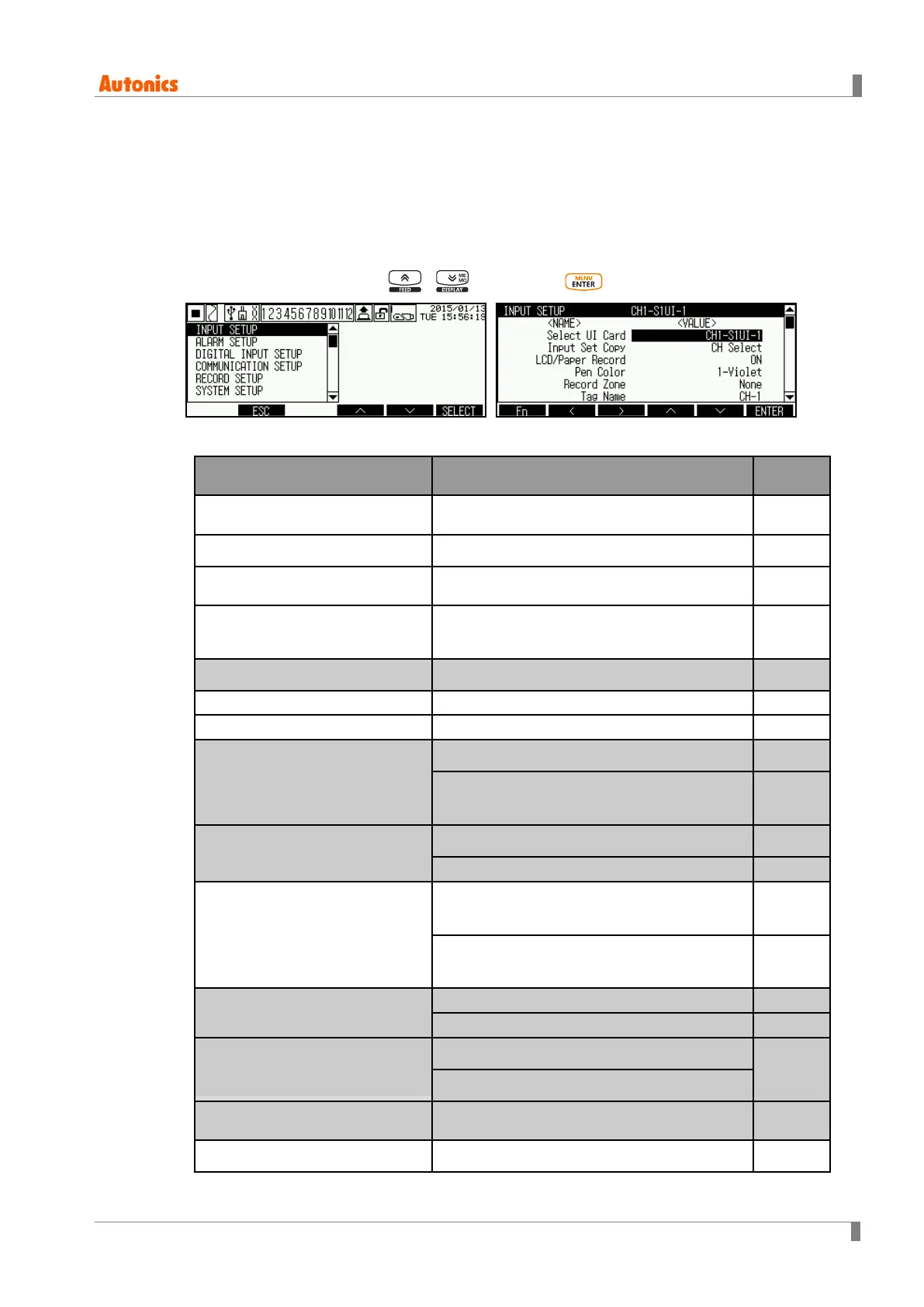

8.1 INPUT SETUP(Input setting)
You can set details for input specification and scale by universal input channel, record method,
input digital filter, input error correction, etc.
Move to INPUT SETUP with , keys, press key to enter INPUT SETUP.
 Parameter list
Parameter Setting range
Factory
default
Select UI Card (Select universal input
card)
CH□-S□UI-□
Automatica
lly set
Input Set Copy (Copy input parameter)
None, CH□-S□UI-□
CH Select
LCD/Paper Record (Display and record
measuring value)
OFF ↔ ON
ON
Pen Color (Record color)
1-Violet ↔ 2-Red ↔ 3-Black ↔ 4-Green ↔ 5-Blue
↔ 6-Brown
Automatica
lly set
Record Zone (Record zone)
None, 1 ↔ Zone n
None
Tag Name (Channel name)
None/1 to 6 characters
CH-1to12
Input Type (Input specification)
Refer to detail descriptions.
TC-K
Range/Scale Point (Decimal point)
TC, RTD: 0
↔
0.0
0.0
Analog: 0 ↔ 0.0 ↔ 0.00 ↔ 0.000 ↔ 0.0000
If special function is two unit: 0 ↔ 0.0 ↔ 0.00
0.0
Display/Temp Unit (Display
unit/Temperature unit)
TC, RTD: ℃ ↔ ℉ ↔ ˚K ℃
Analog: Refer to detail descriptions.
%
High/Low Range & Graph
Scale(Upper/Lower limit input value and
graph scale value)
Low: Input range/Min. graph scale value to upper limit
input value /Graph scale value (High Range/Graph
Scale)– F. S. 5%
-200.0
High: Lower limit input value/Graph scale value (Low
Range/Graph Scale) + F.S 5% to input range/Max.
graph scale value
1350.0
Low Scale/High Scale (Lower
limit/Upper limit scale value)
Low: Set the range by set value of scale point
-
High: Set the range by set value of scale point
-
Special Function (Special function)
TC, RTD: None ↔ Difference
None
Analog: Linear ↔ Square ↔ Root ↔ Two Unit
Two Unit (Display the degree of a
vacuum, static pressure)
1 to 35 -
Reference Channel (Reference channel)
None ↔ CH□-S□UI-□
-
