8 Parameter detail setup
90 © Copyright Reserved Autonics Co., Ltd.

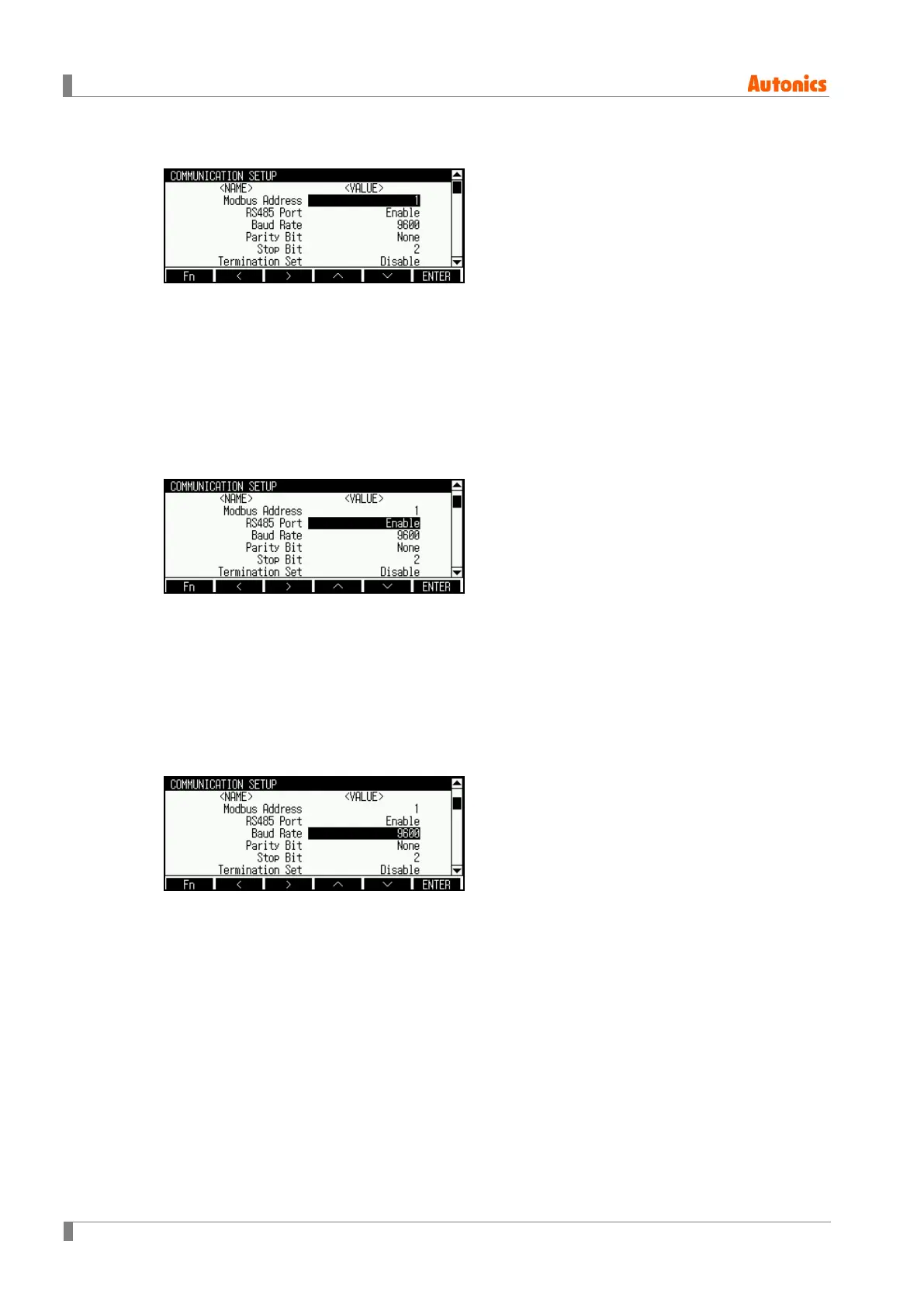

8.4.1 Modbus Address (Communication address)
Designate communication address.
The designated communication address is able to apply to RS485, USB Device, also Ethernet
communication. However, duplicated communication address setting in same communication
line does not allow.
 Setting range: 1 to 127
 Factory default: 1
8.4.2 RS485 Port (Use RS485 communication)
Set whether using RS485 communication.
If you set RS485 Port’s set value as ‘Enable’, Ethernet Port’s set value is changed ‘Disable’
automatically.
 Setting range: Enable ↔ Disable
 Factory default: Enable
8.4.3 Baud Rate (Baud rate)
Designate baud rated.
 Setting range: 2400 ↔ 4800 ↔ 9600 ↔ 19200 ↔ 38400 (unit: bps)
 Factory default: 9600
