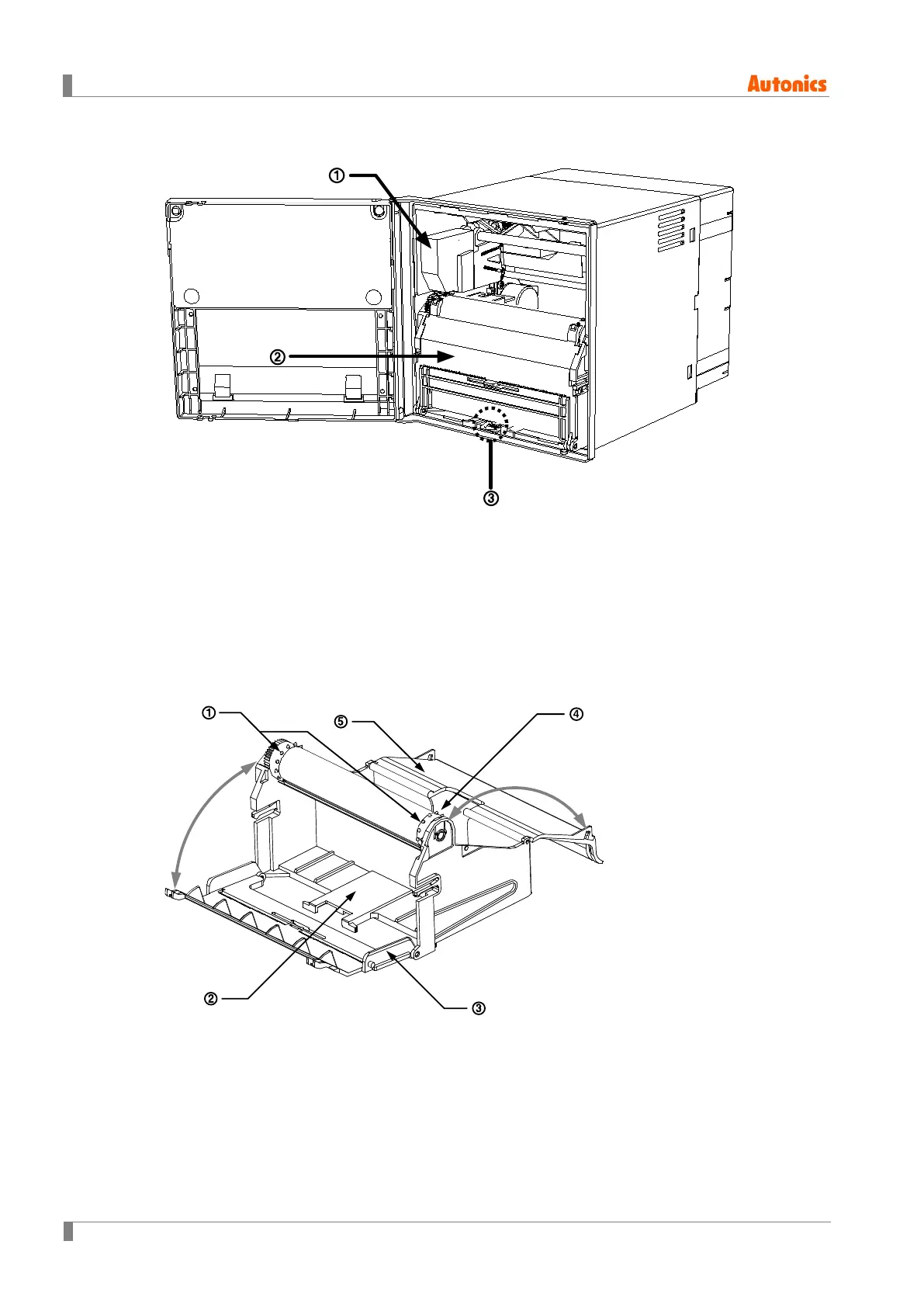

1.4.3 Inside
① Ink cartridge: Record ink cartridge to record data on recording paper.
(Model name: D33006B-66X-01)
② Recording paper cassette: Cassette saves the recording paper.
③ Recording paper cassette lever: Press the lever down and this recording paper cassette is
removed from KRN100.
Remove the recording paper cassette for recording paper replacement, ink cartridge
replacement.
1.4.4 Paper cassette
① Recording paper holder: Movement holder of recording paper when recording
② Recording paper storage part: Storage part for recorded recording paper
③ Front cover of recording paper storage: Open recording paper guide for recording paper
replacement
④ New recording paper storage: Storage part for new recording paper (1EA recording paper
is storable.)
⑤ Back cover of recording paper storage
