8 Parameter detail setup
© Copyright Reserved Autonics Co., Ltd. 61
(4) High Graph Scale (Upper limit graph scale value)
Within the input range of Input Type (Input specification), set upper limit graph scale value.
They does not displayed in analog input type.
Setting range: Lower limit graph scale value (Low Graph Scale) + F.S. 5% to Max.
value of input range
When TC-K input range is -200.0 to 1350℃, setting range is -122.5 to 1350℃.
Factory default: 1350.0
8.1.11 Low Scale/High Scale (Lower limit/Upper limit scale value)
This function is for set the desired display value based on measuring value. It is applied to
analog (voltage, current) input type only.

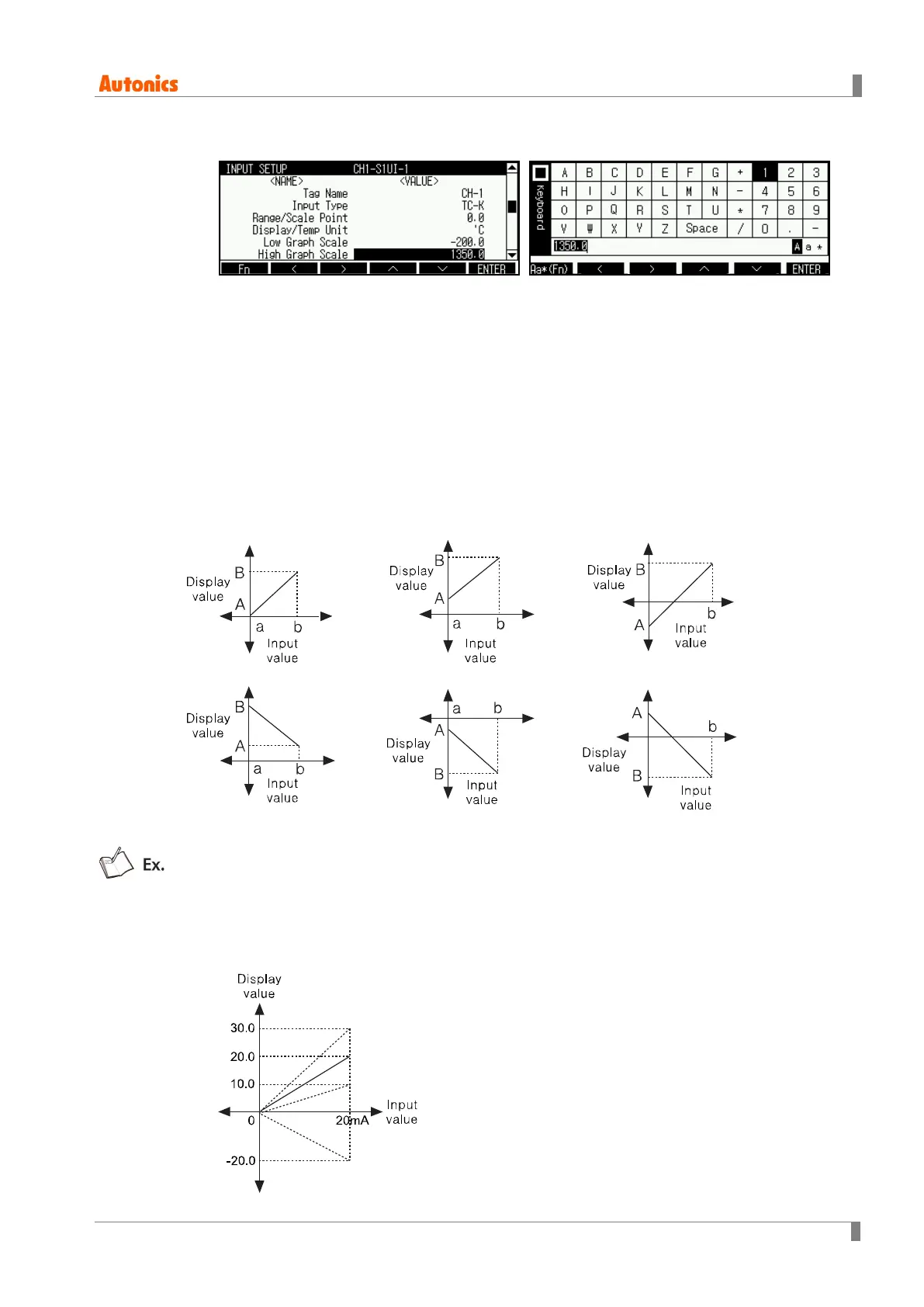

As below figure, for example, measuring input value are ‘a’ and ‘b’ and the desired display value
are ‘A’ and ‘B’ . In this case, about the input ‘a’ and ‘b’, it displays a=A, b=B as linearly.
You can change display value about min./max. input value of measuring value.
In case input specification is 0-20mA
Set Low Scale (Lower limit scale value) = 0.0, High Scale (Upper limit scale value) = 10.0,
20.0, 30.0, -20.0.
