Autonics krn100 series User Manual

8 Parameter detail setup
62 © Copyright Reserved Autonics Co., Ltd.

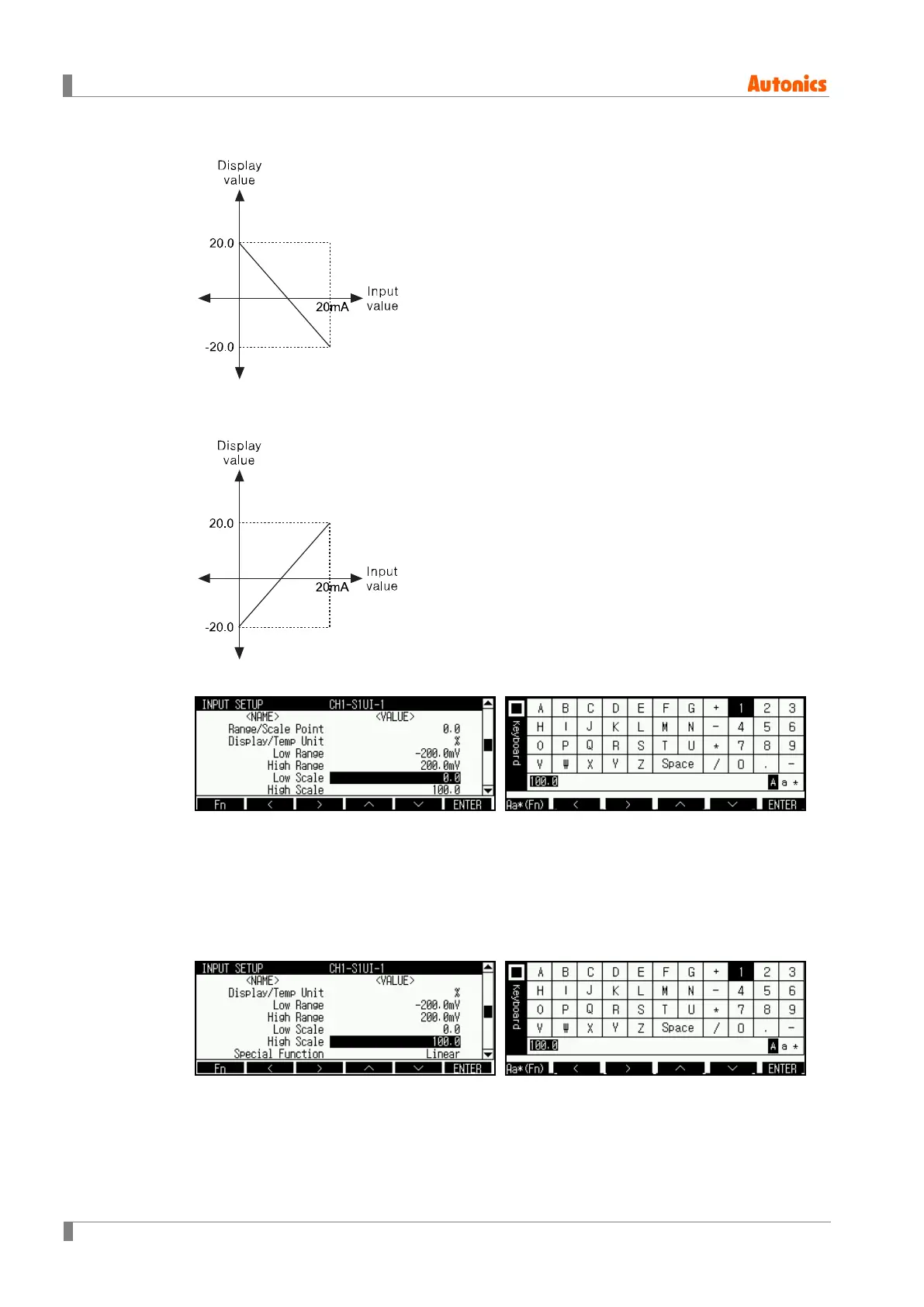

 Set Low Scale (Lower limit scale value) = 20.0, High Scale (Upper limit scale value) = -20.0.
 Set Low Scale (Lower limit scale value) = -20.0, High Scale (Upper limit scale value) = 20.0.
(1) Low Scale(Lower limit scale value)
Set scale value for lower limit input value (Low Range).
 Setting range: -99999 to 99999 ↔ -9999.9 to 9999.9 ↔ -999.99 to 999.99 ↔ -
99.999 to 99.999 ↔ -9.9999 to 9.9999 (Depending on Scale Point setting, the range is
different.)
 Factory default: -
(2) High Scale(Upper limit scale value)
Set scale value for upper limit input value (High Range).
 Setting range: -99999 to 99999 ↔ -9999.9 to 9999.9 ↔ -999.99 to 999.99 ↔ -
99.999 to 99.999 ↔ -9.9999 to 9.9999 (Depending on Scale Point setting, the range is
different.)
 Factory default: -
