8 Parameter detail setup
© Copyright Reserved Autonics Co., Ltd. 99

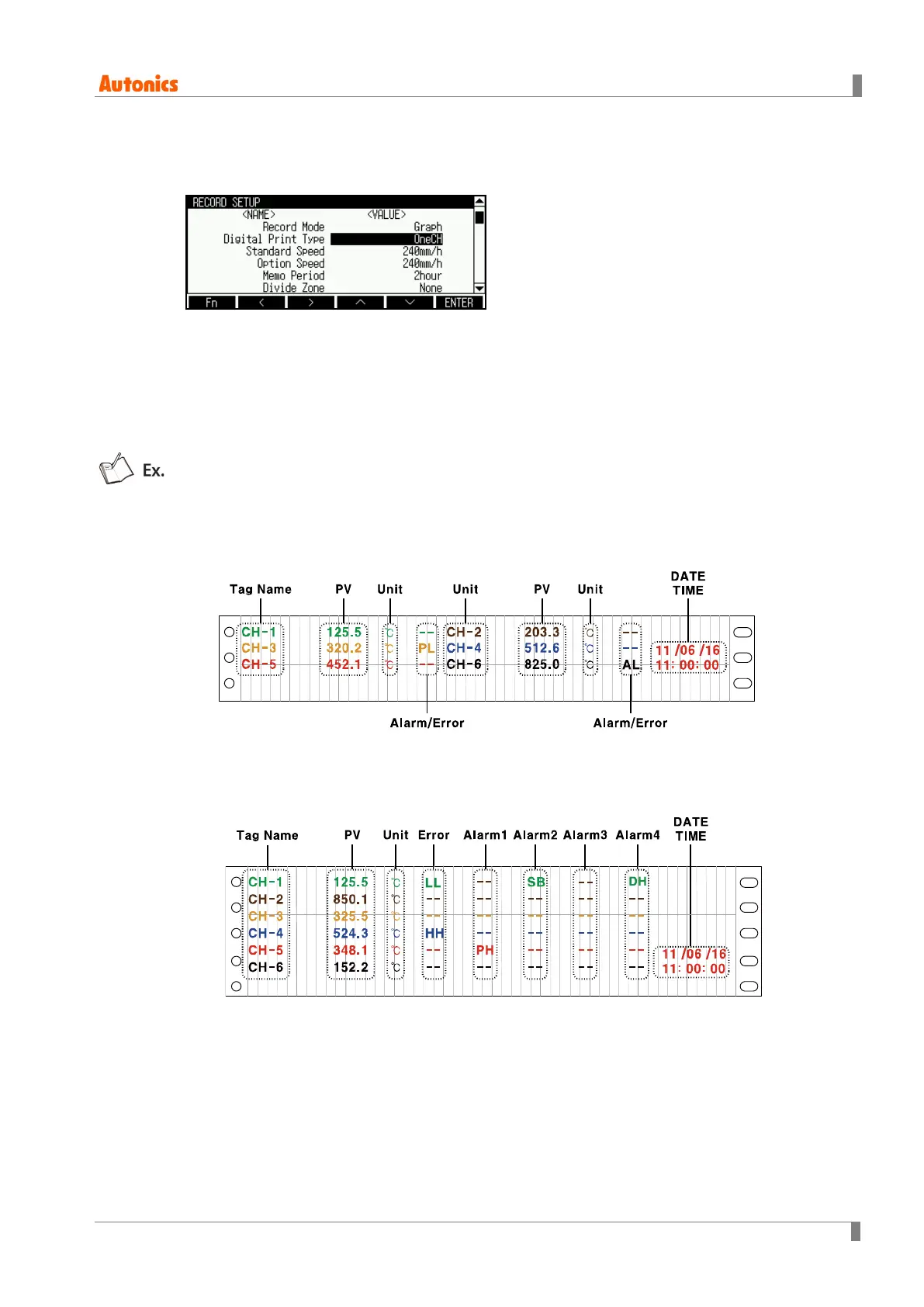

8.5.2 Digital Print type(1 line record channel during numeric
recording)
Designate the number of channels to be printed when recording display value on recording
paper.
It prints channel information between Graph and Digital record mode.
Setting range: OneCH ↔ TwoCH
Factory default: TwoCH
(1) TwoCH
It records 2 channels in one line and records occurring alarm as abbreviation. In case of
multi alarms, it records as ‘AL’.
Print form is as below.
(2) OneCH
It records 2 channels in one line and records occurring alarm as abbreviation. Not as
TwoCH, it also records one channel’s error message and occurring alarms in 4 alarms.
Print form is as below.
For the information about alarm abbreviations, please refer to ‘8.2.3 Alarm□ Type(Alarm□
operation mode)’.
For the information about error abbreviations, please refer to ‘11.1 Error message’.
