Autonics krn100 series User Manual

7 Operation
© Copyright Reserved Autonics Co., Ltd. 47

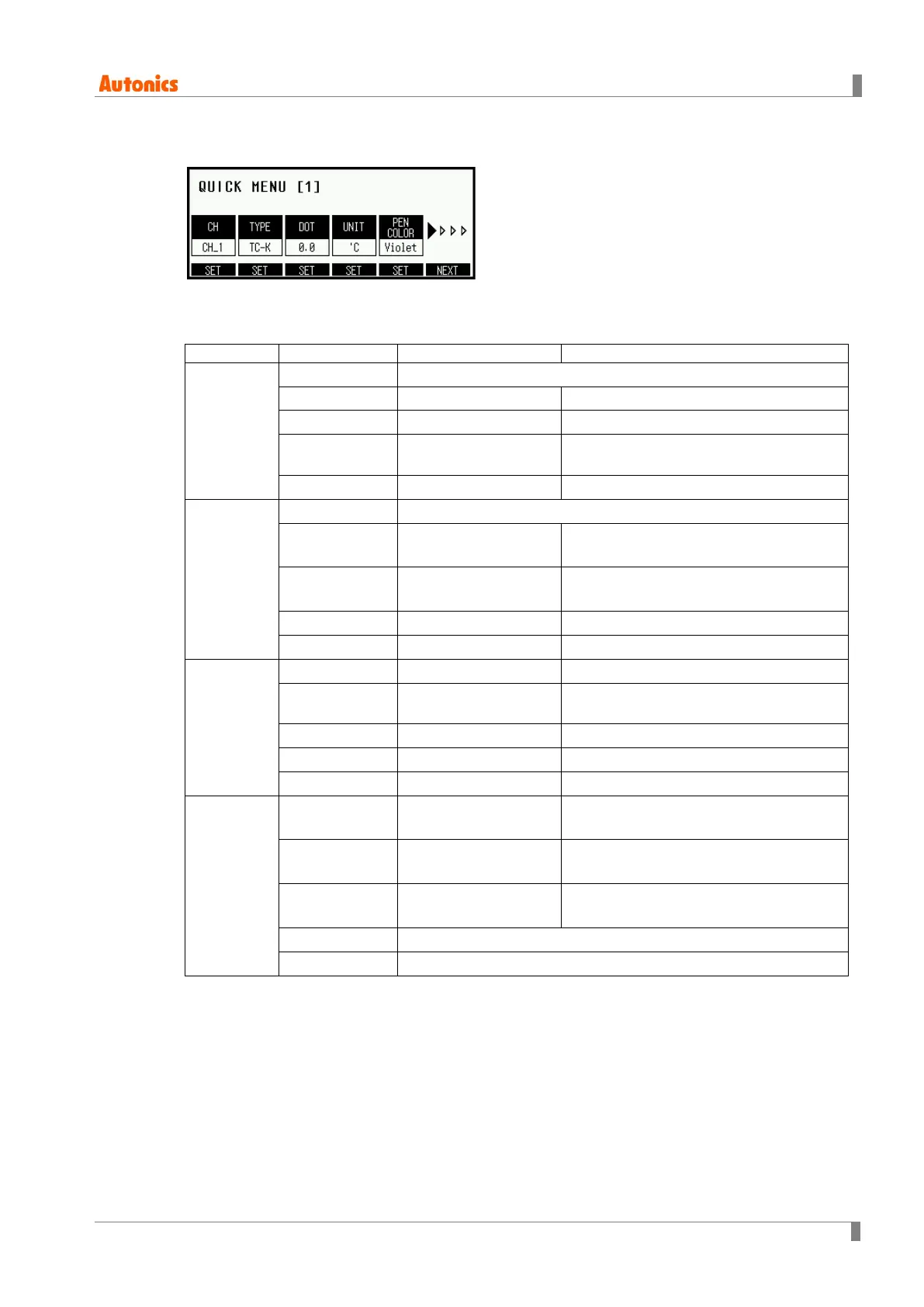

7.3.2 QUICK MENU
QUICK MENU consists of usually used parameters for quickly parameter setting.
7.3.2.1 Parameters of QUICK MENU
Page
Parameter
Description
Linked parameters
QUICK
MENU [1]
CH Select channel for the QUICK MENU[1] setting.
TYPE Input type [INPUT SETUP]-[Input Type]
DOT Decimal point [INPUT SETUP]-[Range/Scale Point]
UNIT
Display/Temperature
unit
[INPUT SETUP]-[Display/Temp Unit]
PEN COLOR Pen color [INPUT SETUP]-[Pen Color]
QUICK
MENU [2]
CH
Select channel for the QUICK MENU[2].
LOW RANGE
Low-limit input value
or graph scale value
[INPUT SETUP]-[Low Range] or
[INPUT SETUP]-[Low Graph Scale]
HIGH RANGE
High-limit input value
or graph scale value
[INPUT SETUP]-[High Range] or
[INPUT SETUP]-[High Graph Scale]
LOW SCALE Low-limit scale value [INPUT SETUP]-[Low Scale]
HIGH SCALE High-limit scale value [INPUT SETUP]-[High Scale]
QUICK
MENU [3]
PRINT MODE
Record mode
[RECORD SETUP]-[Record Mode]
PRINT SPEED
Standard record
speed
[RECORD SETUP]-[Standard Speed]
PRINT MEMO Digital memo period [RECORD SETUP]-[Memo Period]
BACK LIGHT LCD backlight [SYSTEM SETUP]-[Backlight]
LCD ON/OFF LCD backlight On/Off [SYSTEM SETUP]-[Backlight On/Off]
QUICK
MENU [4]
USB REC Memory save
[FILE/MEMORY SETUP]-
[USB LogData Save]
USB COPY
Call USB COPY
window
[FILE/MEMORY SETUP]-
[USB Memory Copy/Move]
UPGRADE Call upgrade window
[USER/INFORMATION SETUP]-
[Firmware Upgrade]
CANCEL
Cancel the settings
SAVE Save the setting of QUICK MENU[1] to [4].
