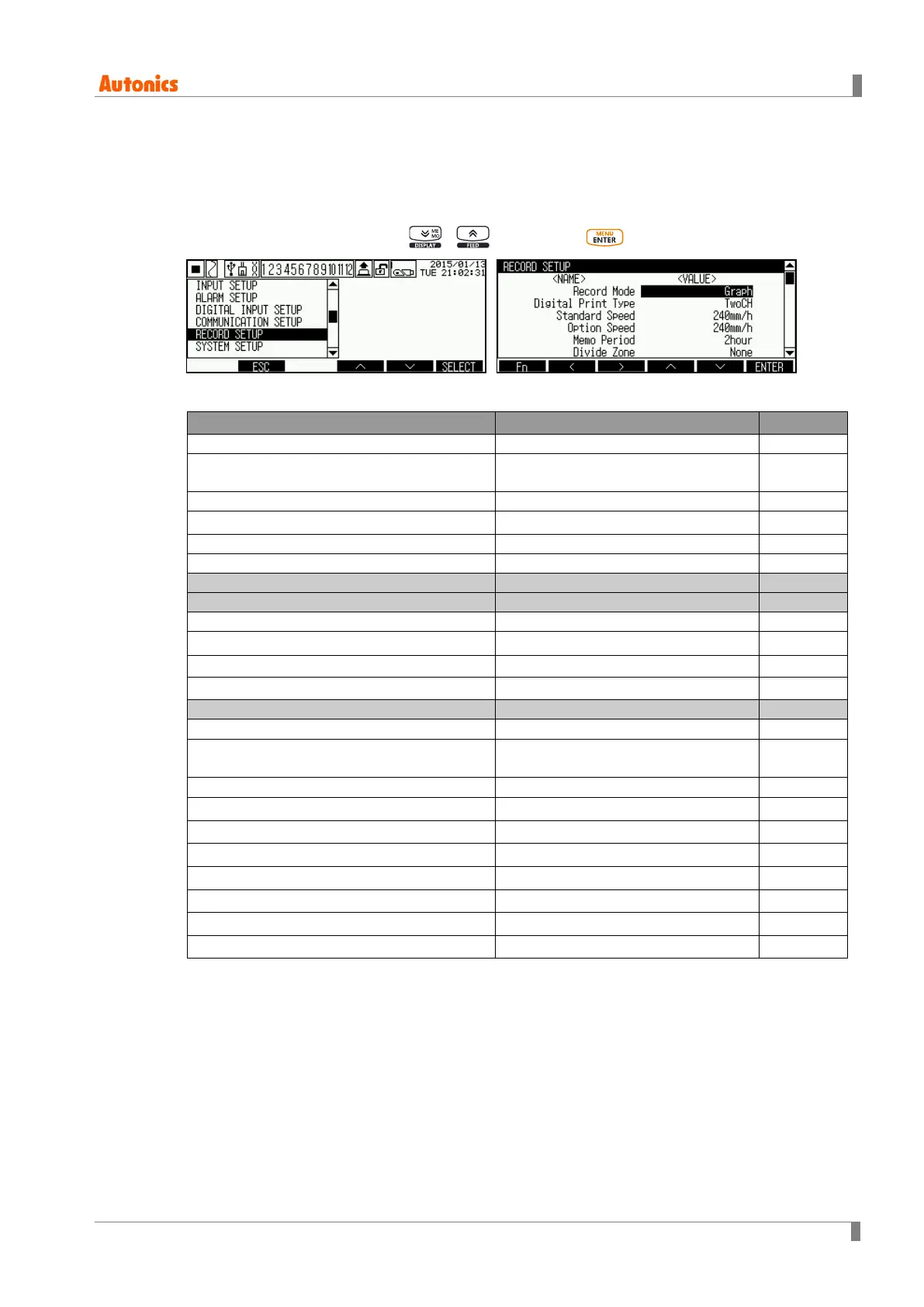

8.5 RECORD SETUP (Record setting)
You can set record mode, record speed, record language, and digital memo, etc.
Depending on record mode (Digital, Graph), below parameters are changed.
Move to RECORD SETUP with , keys, press key to enter RECORD SETUP.
Parameter list
Record Mode (Recode mode)
↔
Digital Print type(1 line record channel during numeric
OneCH ↔ TwoCH TwoCH
Standard Speed (Standard record speed)
10 ↔ 20 ↔ 40 ↔ 60 ↔ 120 ↔ 240mm/h
Option Speed (Option record speed) 10 ↔ 20 ↔ 40 ↔ 60 ↔ 120 ↔ 240mm/h 20mm/h
Memo Period (Digital memo period)
Refer to detail descriptions.
Divide Zone (Record zone division)
Standard Period (Standard record period)
Option Period (Option record period)
Listing Language (Language for list output)
Alarm Speed (Alarm record speed) 10 ↔ 20 ↔ 40 ↔ 60 ↔ 120 ↔ 240mm/h 20mm/h
Power On Status (Record status when power ON) Hold ↔ Run ↔ Stop Hold
Run Status (List printing at start recording) OFF ↔ ON OFF
List Out Option (List record option)
Zone Dot Line Distance (Dot line for zone division) None to 8.0mm 4.0mm
CH Print Distance (Record interval for each channel
None to 100.0mm 20.0mm
Start Line Print (Start line when starting record)
Range Print Time (Input range record period) Disable,1to 24 hour Disable
Pen1 (Violet) ON Time (Ink cartridge point delay time) 1 to 25 13
Pen2 (Red) ON Time (Ink cartridge point delay time) 1 to 25 13
Pen3 (Black) ON Time (Ink cartridge point delay time) 1 to 25 13
Pen4 (Green) ON Time (Ink cartridge point delay time) 1 to 25 13
Pen5 (Blue) ON Time (Ink cartridge point delay time) 1 to 25 13
Pen6 (Brown) ON Time (Ink cartridge point delay time)
※ Shaded parameters are affected by set value of other parameters. Please refer to specific
descriptions of each parameter.
To Next Page
