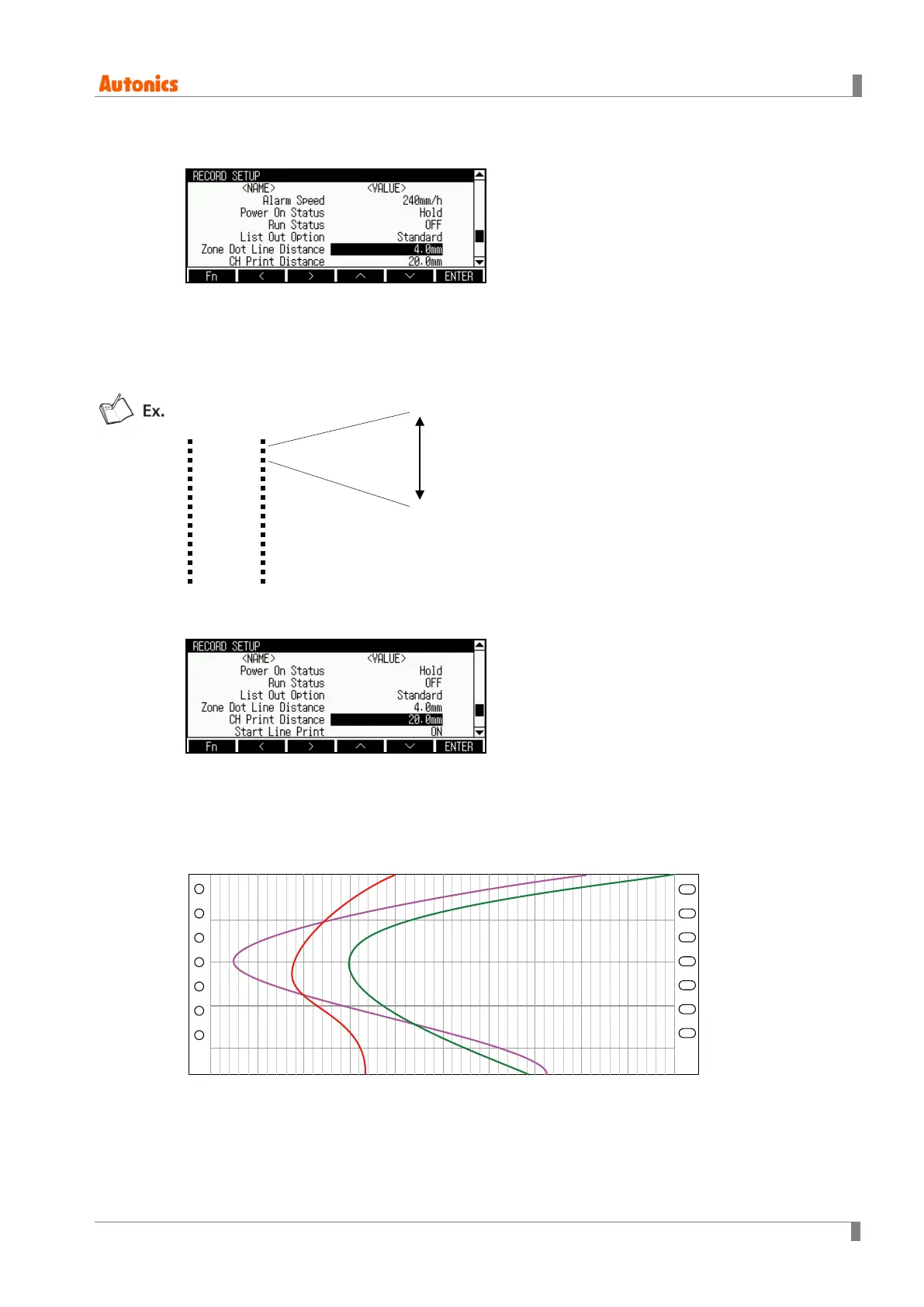

8.5.14 Zone Dot Line Distance (Dot line for zone division)
Designate present/absence and interval of dot line at right to divide zone when zone is set. Dot
line for zone division is printed in violet.
 Setting range: None to 8.0mm (Set with 0.8mm interval)
 Factory default: 4.0mm
8.5.15 CH Print Distance (Record interval for each channel graph)
Designate the interval for printing channel number of each graph as below figure.
It is activated when Record Mode(Record mode) is set as ‘Graph’.
 Setting range: No Print to 100.0mm(Set by 10mm interval)
 Factory default: 20.0mm
1
2
3
Set the interval between
dots.
