8 Parameter detail setup
108 © Copyright Reserved Autonics Co., Ltd.

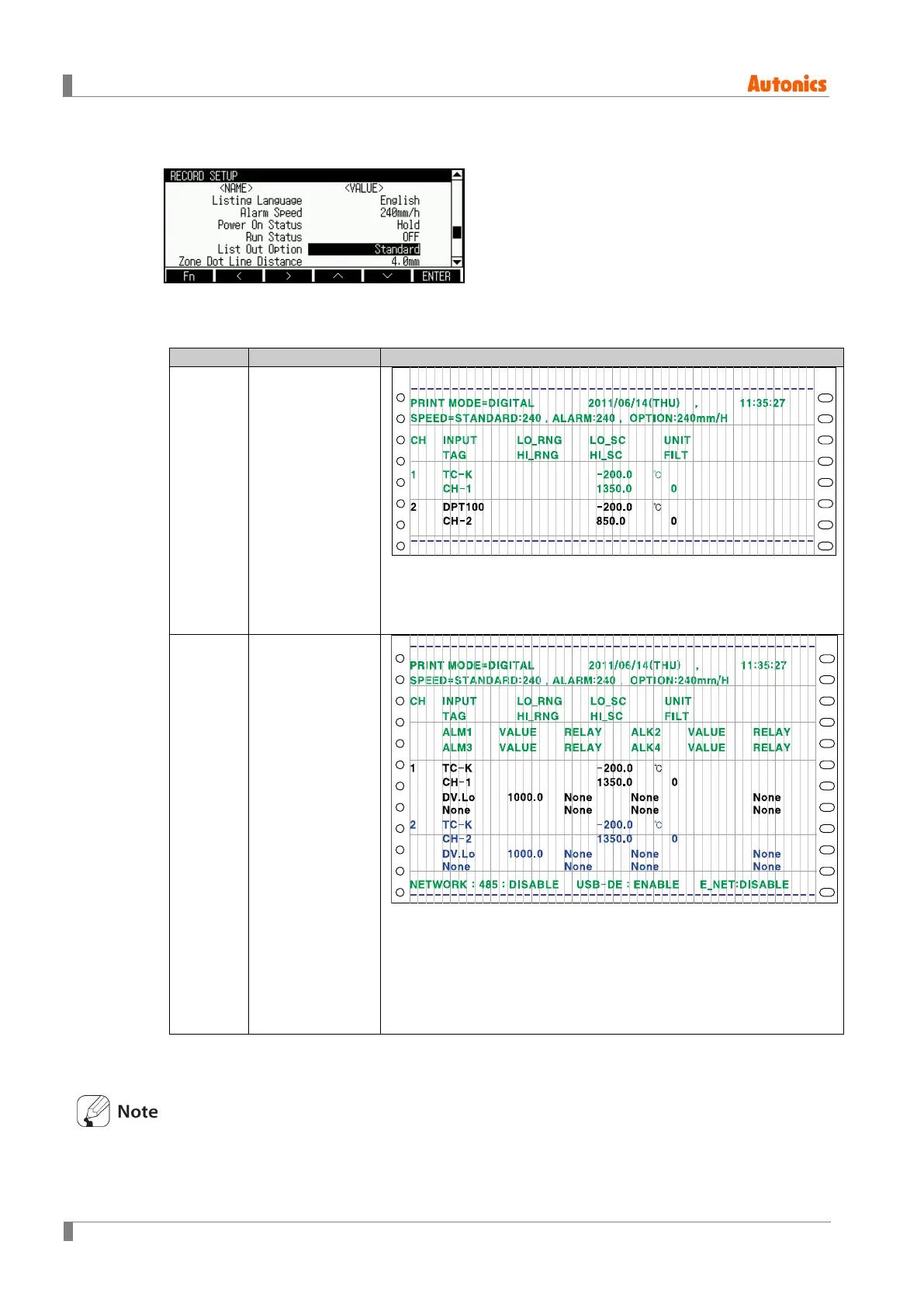

8.5.13 List Out Option (List record option)
Select parameter set value recording either Standard or Option and, it starts record.
It is activated when Run Status(List printing at start recording) is set as ‘ON’.
Set
Description
Example of recording
Standard
Records
standard
parameters only.
Input specification(INPUT), channel name (TAG), lower limit input
value(LO-RNG), upper limit input value(HI-RNG), display unit(UNIT),
input digital filter(FILT)
Option
Records
standard
parameters and
option
parameters.
Input specification(INPUT), channel name (TAG), lower limit input
value(LO-RNG), upper limit input value(HI-RNG), display unit(UNIT),
input digital filter(FILT), alarm mode(ALM□), alarm set
value(VALUE), alarm number(RELAY), communication interface
(NETWORK, USB, E_NET)
 Setting range: Standard↔Option
 Factory default: Standard
List is printed with max. record speed (240mm/h). Depending on the number of channel, it may
take long time. Therefore, be sure this when printing the list.
