8 Parameter detail setup
© Copyright Reserved Autonics Co., Ltd. 103

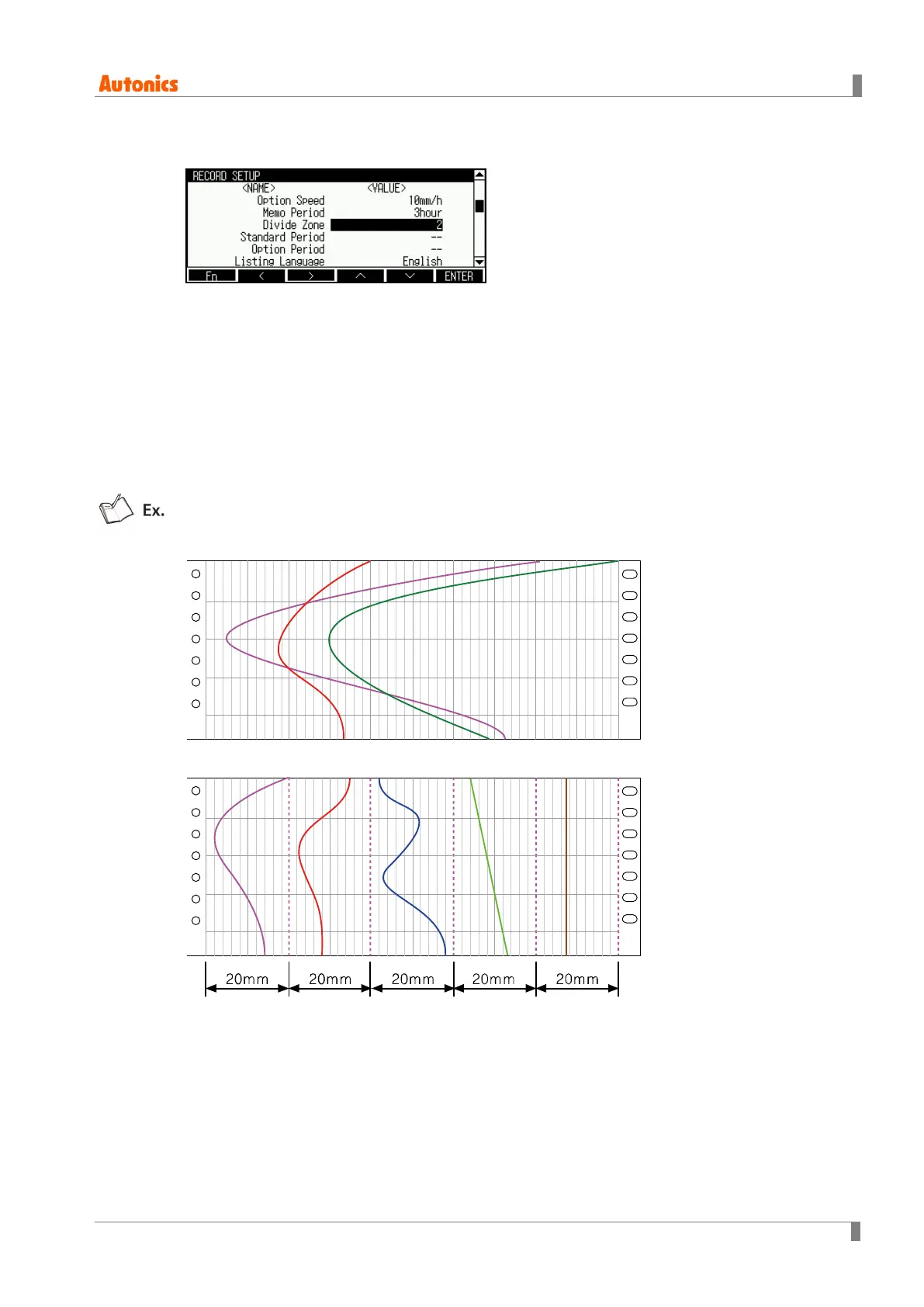

8.5.6 Divide Zone (Record zone division)
Divides record zone for measuring value by channel.
It divides equally max. 12 zones as equal value. User needs to set record zone by channel in
Record Zone setting at Input Setup.
It is easy to check measuring value due not to duplicated record zone with divided record zone
by channel which is set in Record Zone setting at Input Setup.
If there is too many division for record zone, record value check accuracy is low.
 Setting range: None, 2 to 12
 Factory default: None
Set value of record zone division: None
Set value of record zone division : 5
