8 Parameter detail setup
66 © Copyright Reserved Autonics Co., Ltd.
Unit changing point = (

.
× Y) + 4
16 4-20 mA output interval
X Max. pressure range value (E.g. For 760 to
3
kg/cm
2
, it is " 3 ". )
1.033 Converted value from 760 mmHg to kg/cm
2
unit value (same unit)
Y Use pressure + 1.033 (E.g. Use pressure is ‘0’, Y is 1.033.)
4
Output value for zero, 4.00mA
 Setting range
In case Input Type(Input specification) is temperature sensor(thermocouple, RTD): None ↔
Difference
In case Input Type(Input specification) is analog(voltage, current): Linear ↔ Root ↔
Square ↔ Two Unit (Two Unit is activated for current input(0-20mA, 4-20mA).)
 Factory default: None

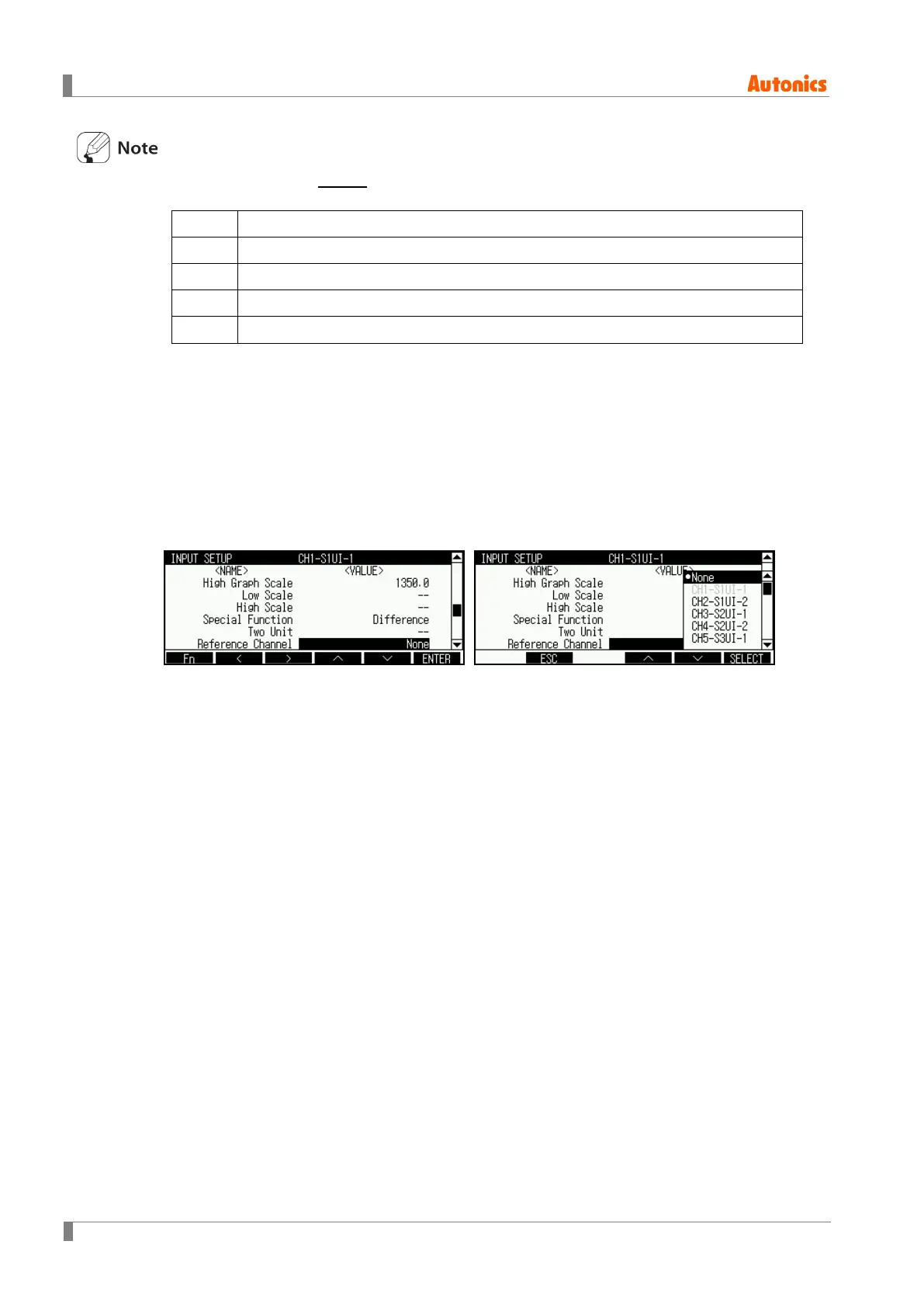

8.1.13 Reference Channel (Reference channel)
In case Input Type(Input specification) is temperature sensor(thermocouple, RTD), set Special
Function(special function) as Difference to set reference channel.
 Setting range: None / CH
□-S□UI-□
 Factory default: -
