1.4 Part description
1.4.1 Front and side part

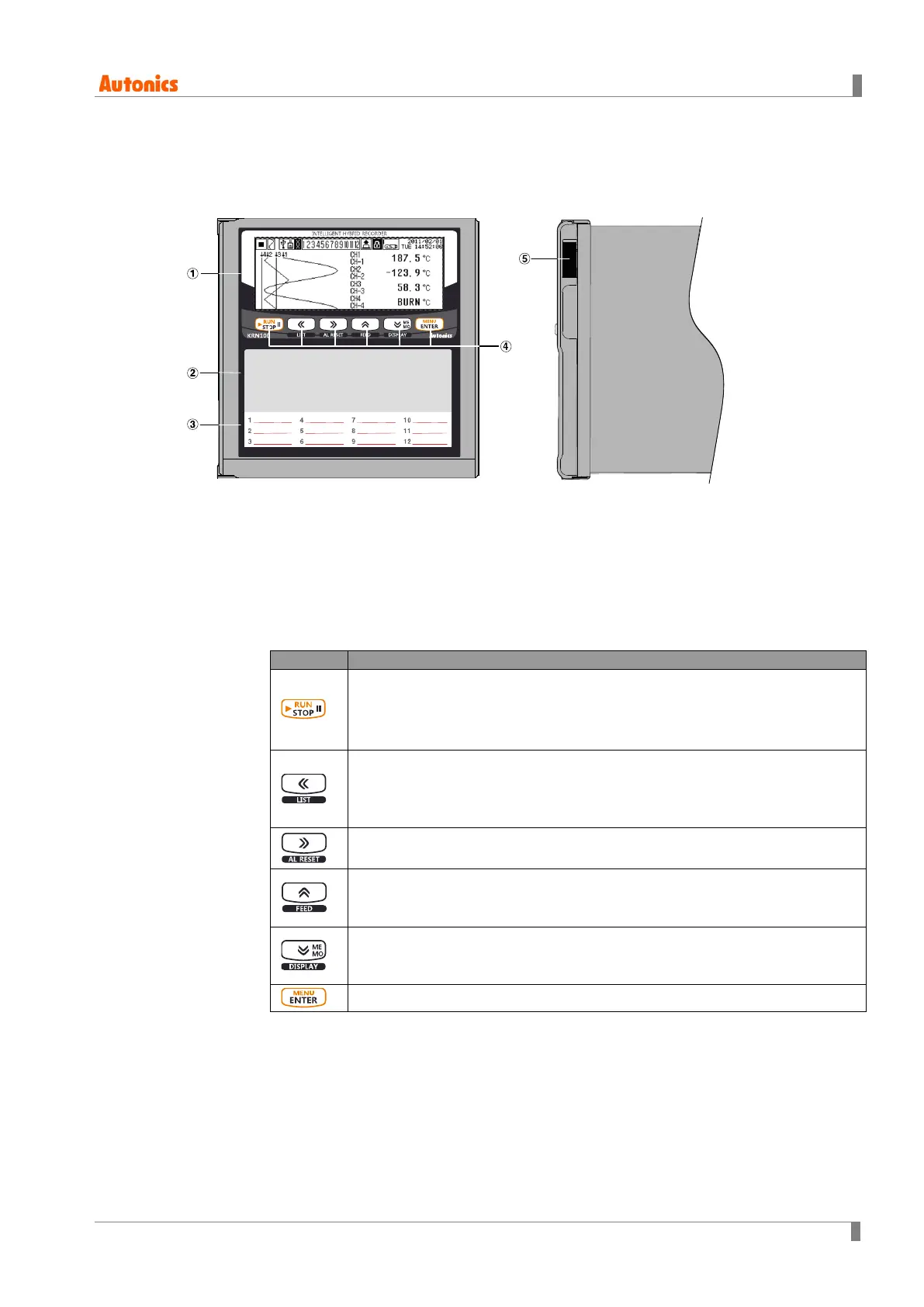

① Display part: Displays measurement values as trend graph, bar graph, or digital number
(1/8/12 channel).
Please refer to ‘7.1 Screen display ’.
② Recording print part: Records measuring value of data by each channel with designated
color.
③ Channel information part: Write the information by each channel.
④ Control key/Function key: Executes parameter setting and recording, and special function
Using this key for starting/stopping recording, changing input characters on
virtual keyboard status, and displaying Function key.
Press this key for 3 sec in stop state, ink cartridge moves to the center.
(Use this to replace ink cartridge.)
Using this key for going out from parameter setting group or setting manual
channel switch mode.
It also executes to release auto channel switch mode and printer list output
(3 sec) function.
Using this key for moving parameter in setting mode, setting manual channel
switch mode and forced alarm reset (3 sec).
Using this key for moving parameter in setting mode, increasing digit value,
setting auto channel switch mode, and manual feed function (by pressing
over 3 sec.) in stop state.
Using this key for moving parameter in setting mode, decreasing digit value,
changing display mode and executing manual digital memo (3 sec) in
recording state.
Using this key for entering setting mode (3 sec) and set value change mode.
⑤ USB Host: Connects an USB memory. It recognizes max. 32Gbyte and if using cable, it is
available up to 1.5m.
