5 Installation
30 © Copyright Reserved Autonics Co., Ltd.
5.2 Installation

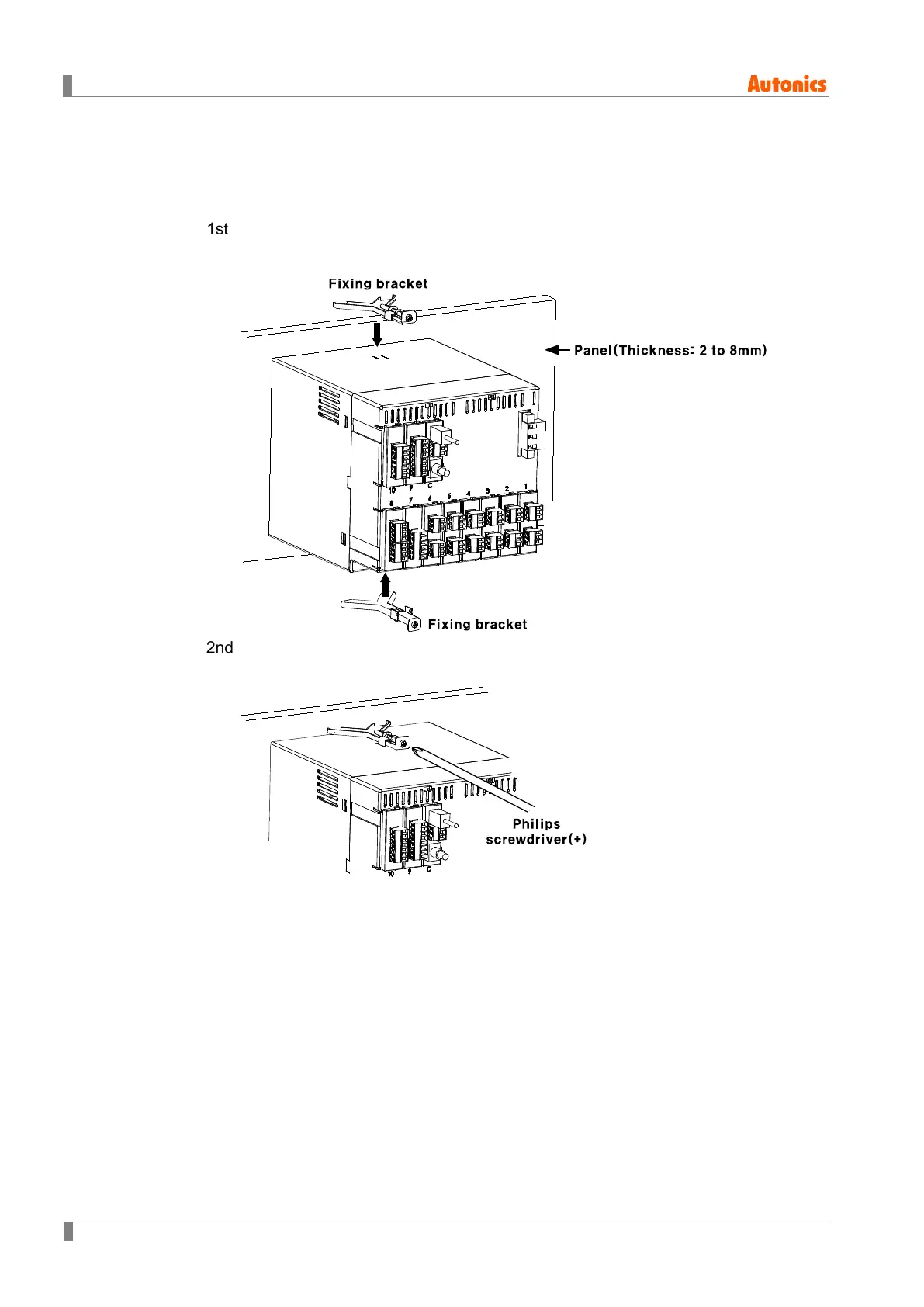

5.2.1 Bracket mounting
Install KRN100 on the processed panel as panel cut-out diagram. Mount fixing
brackets on upper/lower parts.
Tighten fixing brackets on upper/lower parts to fix on the panel with phillips
screwdriver (+). (Torque: 0.4N
•m)
