Autonics krn100 series User Manual

8 Parameter detail setup
© Copyright Reserved Autonics Co., Ltd. 87

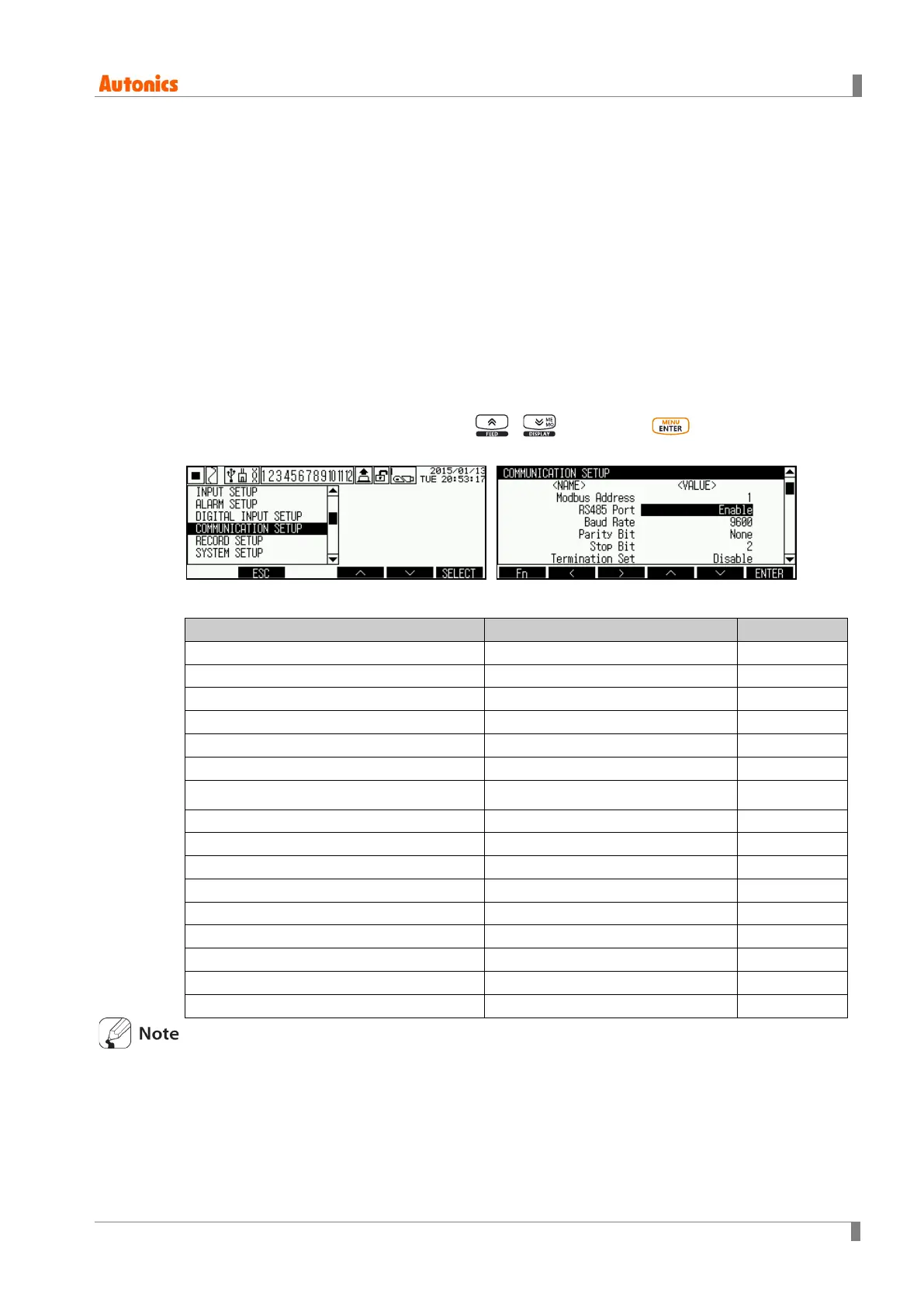

8.4 COMMUNICATION SETUP (Communication setting)
Set the related parameters with communication output card(KRN-COM).
You can only check the item of COMMUNICATION SETUP by communication but cannot
change the set.
This parameter is for setting and monitoring parameters from external upper system (PC and
graph panel, etc) or transmitting the data to external devices by RS485, Ethernet, or USB Device
communication
It is recommended to use our dedicated software program DAQMaster for monitoring. If you
want to develop monitoring program not using our DAQMaster program or to use the related
Modbus program, please refer to user manual for communication.
Visit our homepage (www.autonics.com) to download DAQMaster program, and user manual for
communication.
Move to COMMUNICATION SETUP with , keys, press key to enter
COMMUNICATION SETUP.
 Parameter list
Parameter Setting range Factory default
Modbus Address (Communication address) 1 to 127 1
RS485 Port (Use RS485 communication)
Enable ↔ Disable
Enable
Baud Rate (Baud rate)
2400↔4800↔9600 ↔ 19200 ↔ 38400
9600
Parity Bit (Communication parity bit)
None ↔ Odd ↔ Even
None
Stop Bit(Communication stop bit)
1 ↔ 2
2
Termination Set (Terminating resistance)
Disable ↔ Enable
Disable
Response Wait Time (Communication response wait
time)
5 to 99ms 20ms
Protocol (Communication protocol) Modbus RTU Modbus RTU
RS485 Com Write (RS485 communication write)
Enable↔Disable
Enable
Ethernet Port (Use Ethernet communication)
Enable↔Disable
Disable
IP Address (IP address) 0.0.0.0 to 255.255.255.255 -
Subnet Mask (Subnet Mask) 0.0.0.0 to 255.255.255.255 -
Default Gateway (Default gateway) 0.0.0.0 to 255.255.255.255 -
Ethernet Com Write (Ethernet communication write)
Enable ↔ Disable
-
USB Device Port (Use USB communication)
Enable ↔ Disable
Enable
USB Com Write (USB communication write)
Enable ↔ Disable
Enable
KRN100 does not supports RS485 port, Ethernet port at the same time for preventing system
overload. If you change one as ‘Enable’, the other is changed ‘Disable’ automatically.
In case USB Device, it is able to set 'Enable', 'Disable' regardless of RS485 or Ethernet setting.
